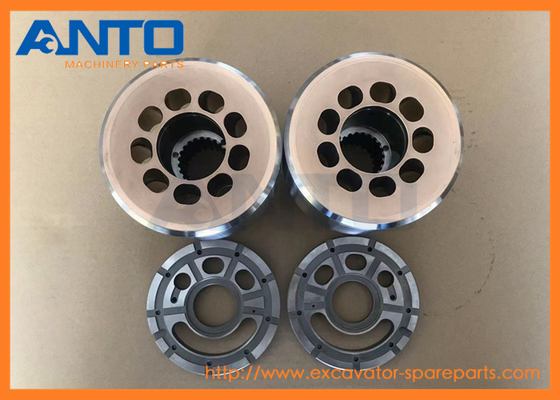

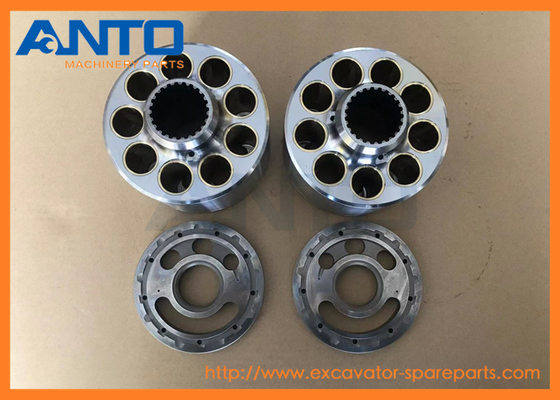

• 708-2L-06470 708-2L-06480 7082L06470 7082L06480 PC200-8 Hydraulic Pump Cylinder Block Assy





• Specification

Application	Excavator hyd pump Parts
Name	Cylinder block assy
Parts No	708-2L-06470 708-2L-06480
Model	PC200-8 PC220-8 PC240-8 D65EX-18
Delivery time	Stock for urgent delivery
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX TNT UPS express
Packing	As request or standard packing









• Application

BULLDOZERS D65EX D65PX D65WX
EXCAVATORS HB205 HB215 PC1250 PC1250SP PC200 PC2000 PC200LL PC220 PC228 PC228US PC240 PC270 PC290 PW140 PW148 Komatsu









• More block for KOMATSU machine

20Y-54-51633 BLOCK,L.H.

BP500, PC1250, PC1250SP, PC130, PC160, PC180, PC200, PC200LL, PC200SC, PC210, PC300, PC360, PC400

21T-64-33211 BLOCK

PC2000, TRAVEL

21T-06-67880 BLOCK

PC1800, PC2000, TRAVEL

20Y-60-41630 BLOCK

PC210, PC230NHD, PC240, PC290

21N-62-18450 Block

BOTTOM, PC1000, PC1000SE, PC1000SP, PC1100, PC1100SE, PC1100SP, PC1250, PC1250SE, PC1250SP

DM94287640 BLOCK

PC2000, TRAVEL

20Y-53-11571 BLOCK

AIR, HB205, PC130, PC200, PC270

21N-62-42270 Block

BOTTOM, PC1250, PC1250SP

206-62-21270 BLOCK

PC240, PC290

714-23-15160 BLOCK

GD555, GD655, GD675

720-2M-04330 BLOCK ASS'Y,FRONT

D31EX, D31PX, D37EX, D37PX, D39EX, D39PX

723-46-11920 BLOCK

PC200, PC200CA, PC210, PC220, PC250HD

714-23-18311 BLOCK

GD555, GD655, GD675

208-62-68140 BLOCK

PC400, PC450

425-15-44111 BLOCK

WA500







• We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







• Parts List Diagram

Pos.	Part No	Qty	Parts name	Comments
	708-1L-00740	[1]	Pump Assembly Komatsu	0.000 kg.
	["SN: 81002-UP"] |$0.
	708-1L-00680	[1]	Pump Assembly Komatsu	0.000 kg.
	["SN: 80001-81001"] |$1.
	708-1L-01740	[1]	Pump Subassembly Komatsu China
	["SN: 81002-UP", "SCC: C2"] |$2.
	708-1L-01680	[1]	Pump Subassembly Komatsu China
	["SN: 80001-81001", "SCC: C2"] |$3.
1	708-1L-32340	[1]	Shaft Komatsu China
	["SN: 80001-UP", "SCC: C2"]
2	708-2L-32150	[1]	Bearing Komatsu	0.6 kg.
	["SN: 80001-UP", "SCC: C2"] ancatalogs:["7082E12152", "7082L22150", "7082512731"]
3	708-2E-05040	[1]	Washer Kit Komatsu	0.101 kg.
	["SN: 80001-UP", "SCC: C2"] ancatalogs:["7082E12190"]
4	708-25-12790	[1]	Ring, Snap Komatsu	0.006 kg.
	["SN: 80001-UP", "SCC: C2"]
5	708-2L-32460	[1]	Seal, Oil Komatsu	0.000 kg.
	["SN: 81002-UP"]
5	708-25-52861	[1]	Seal, Oil Komatsu China	0.078 kg.
	["SN: 80001-81001"] ancatalogs:["7082552860", "7067340920"]
6	708-2L-22160	[1]	Spacer Komatsu	0.047 kg.
	["SN: 80001-UP"]
7	04065-06825	[1]	Ring, Snap Komatsu	0.018 kg.
	["SN: 80001-UP"]
	708-2L-06470	[1]	Block Assembly Komatsu	5.26 kg.
	["SN: 80001-UP", "SCC: C2"] |$16.
10	720-68-19610	[1]	Pin Komatsu	0.002 kg.
	["SN: 80001-UP", "SCC: C2"]
11	04065-04818	[1]	Ring, Snap Komatsu OEM	0.007 kg.
	["SN: 80001-UP", "SCC: C2"]
12	708-2L-23131	[1]	Seat Komatsu	0.073 kg.
	["SN: 80001-UP", "SCC: C2"]
13	708-2L-33160	[1]	Spring Komatsu	0.12 kg.
	["SN: 80001-UP", "SCC: C2"] ancatalogs:["7082L23151"]
14	708-7L-13140	[1]	Seat Komatsu	0.02 kg.
	["SN: 80001-UP", "SCC: C2"]
15	708-2L-23351	[1]	Guide, Retainer Komatsu OEM	0.14 kg.
	["SN: 80001-UP", "SCC: C2"]
16	708-2L-23360	[3]	Pin Komatsu	0.003 kg.
	["SN: 80001-UP", "SCC: C2"]
17	708-2L-33361	[1]	Retainer Komatsu	0.5 kg.
	["SN: 80001-UP", "SCC: C2"] ancatalogs:["7082L33360"]
18	708-2L-33430	[9]	Piston Subassembly Komatsu	0.209 kg.
	["SN: 80001-UP", "SCC: C2"]
	708-2L-06630	[1]	Cradle Assembly Komatsu	4.3 kg.
	["SN: 80001-UP", "SCC: C2"] |$28.
21	04020-01228	[1]	Pin, Dowel Komatsu	0.026 kg.
	["SN: 80001-UP", "SCC: C2"] ancatalogs:["21T3016190"]
22	01252-61230	[4]	Bolt, Hexagon Socket Head Komatsu	0.044 kg.
	["SN: 80001-UP", "SCC: C2"]
