EXCAVATOR 311C 311D LRR 312C 312C L 312D 312D L 314C 314D CR 314D LCR 315C 315D L 319D 319D L 319D LN
- More other pumps for machine
1786633 PUMP GP-WATER
311C, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN...
1375541 PUMP GP-FUEL PRIMING
120G, 12G, 130G, 140G, 140H, 143H, 14G, 14H, 160G, 160H, 163H, 1673C, 16H, 235B, 24H, 3116, 311C, 311D LRR, 3126, 3126B, 3126E, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315C, 315D L,...
6I0912 PUMP AS-ENGINE OIL
3054, 3054B, 312, 312B L, 312C, 315, 315B L, 317, 416B, 416C, 416D, 420D, 426C, 428B, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D, 554, 908, 914G, AP-800C, BG-225B, BG-225C, CB-434C, CB-534B, CB-53...
1213220 PUMP GP-FUEL TRANSFER
3054, 3054B, 307, 312, 312C, 315, 315B L, 317, 416B, 416C, 426C, 428B, 428C, 436C, 438C, 914G, AP-800C, BG-225B, CB-434B, CB-434C, CB-534B, CB-534C, CB-544, CB-545, CP-433C, CS-323C, CS-431C, IT14G, M...
2396142 PUMP GP-WATER
3054, 3054B, 3056, 312B L, 312C, 315B L, 416C, 416D, 420D, 424D, 426C, 428C, 428D, 430D, 432D, 436C, 438C, 442D, 554, 908, 924G, 924GZ, AP-800C, BG-225B, BG-225C, CB-434C, CB-534C, CB-535B, CP-433C, C...
2258329 PUMP AS-ENGINE OIL
3054C, 3054E, 312D2, 312D2 GC, 312D2 L, 313D2, 313D2 LGP, 315C, 318D2 L, 414E, 416D, 416E, 416F, 420D, 420E, 420F, 422E, 422F, 424D, 428D, 428E, 428F, 430D, 430E, 430F, 432D, 432E, 432F, 434E, 434F, 4...
2258016 PUMP GP-WATER
3054C, 3054E, 312D2, 312D2 GC, 313D2, 315C, 318D2 L, 414E, 416D, 416E, 420D, 420E, 422E, 424D, 428D, 428E, 430D, 430E, 432D, 432E, 434E, 442D, 442E, 444E, 914G, AP-300, AP-650B, AP-800D, C4.4, CB-434D...
2327808 PUMP AS-FUEL TRANSFER
3054C, 3054E, 315C, CB-434D, CB-534D, CS-323C, CS-423E, M313C, M315C, TH210, TH215, TH220B, TH330B, TH340B, TH350B, TH355B, TH460B, TH560B, TH580B
3541672 PUMP GP-WATER
3054C, 3054E, 312D2, 312D2 L, 313D2 LGP, 315C, 318D2 L, 414E, 416D, 416E, 416F, 420D, 420E, 422E, 422F, 424D, 428D, 428E, 428F, 430D, 430E, 432D, 432E, 434E, 434F, 442D, 442E, 444E, 914G, AP-650B, AP-...
2388864 PUMP GP-FUEL PRIMING
3054C, 315C, CS-533E, M313C, M315C
7T8890 PUMP AS WASHER
120M, 120M 2, 12M, 140M, 140M 2, 14M, 160M, 160M 2, 16M, 215B, 215C, 215D, 219D, 225, 225D, 227, 229, 229D, 231D, 235B, 235C, 235D, 245, 245B, 245D, 311B, 311D LRR, 312, 312B L, 312C L, 312D, 312D L, ...
1989876 PUMP GP-WATER
312C, 315B L, 554, M312, M315

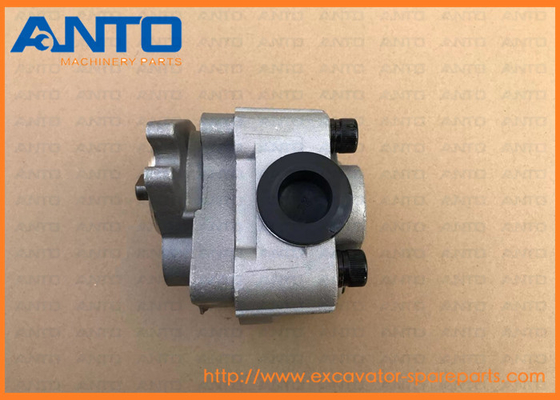

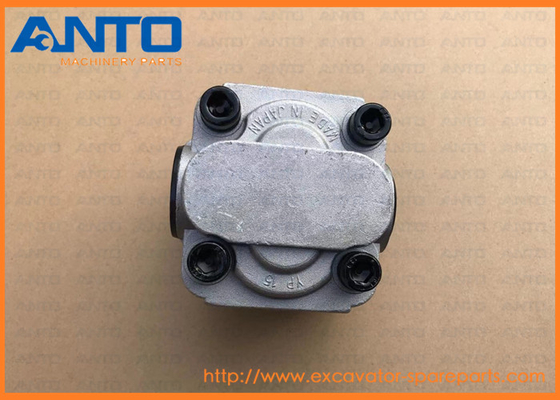

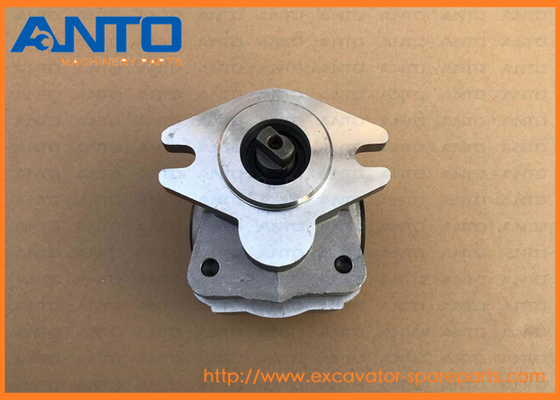

1731203 PUMP GP-GEAR
311C, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315C, 315D L, 318D L, 319D, 319D L, 319D LN
2396656 PUMP AS-FUEL PRIMING
311C, 312C, 312C L, 314C, 318C, 319C, 320B, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN
0857183 PUMP
305.5, 306, 307B, 307C, 307D
1905767 PUMP AS
305.5, 306, 307C, 307D, 308C, 308D
2128641 PUMP GP-ENGINE OIL
305.5, 306, 307C, 307D, 308C, 308D
1905765 PUMP GP-ENGINE OIL
307C, 308C
2110804 PUMP AS-FUEL
303, 304, 305, 904B, 904H
1958455
1958455 PUMP AS-WATER
304, 305
2233383
2233383 PUMP AS-WASHER
120M, 312C, 525B, 535B, 545, 583T, 587R, 587T, 613C II, 615C, 621E, 623E, 627E, 631E, 633E II, 637E, 777G, 785D, 834H, 836H, 924K, 930K, 938K, 950H, 962H, 966H, 972H, 994F, D5N, D6K, D6K LGP, D6K XL, ...
2511938 PUMP & MOTOR GP-FUEL TRANSFER
312C, 315C, 318C, 319C, 584, D6N
2056215 PUMP GP-METERING
M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318D
2010574 PUMP GP-FUEL INJECTION
315C
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
178-8802 |
[1] |
SHAFT-INPUT |
|
| 2 |
176-0582 |
[1] |
BLOCK |
|
| 3 |
173-1203 |
[1] |
PUMP GP-GEAR |
|
| 4 |
225-6216 |
[1] |
GASKET |
|
| 5 |
165-2804 |
[1] |
FLANGE |
|
| 6 |
8T-4139 M |
[8] |
BOLT (M12X1.75X30-MM) |
|
| 7 |
8T-4137 M |
[2] |
BOLT (M10X1.5X20-MM) |
|
| 8 |
7X-2553 M |
[6] |
BOLT (M16X2X40-MM) |
|
| 9 |
165-2801 |
[2] |
BEARING-ROLLER |
|
| 10 |
165-3851 |
[4] |
BEARING-CRADLE |
|
| 11 |
165-3847 |
[18] |
PISTON AS |
|
| 12 |
165-2799 |
[12] |
SPRING |
|
| 13 |
6V-7991 |
[1] |
SEAL-O-RING |
|
| 14 |
165-3839 |
[1] |
BARREL AS |
|
| 15 |
165-3852 |
[2] |
BEARING AS-NEEDLE |
|
| 16 |
095-1663 |
[1] |
SEAL-O-RING |
|
| 17 |
190-4896 |
[2] |
PLUG |
|
| 18 |
207-2985 |
[2] |
ORIFICE |
|
| 19 |
176-0581 |
[1] |
|
|
| 20 |
165-2793 |
[2] |
RETAINER |
|
| 21 |
165-2794 |
[2] |
RETAINER-BALL |
|
| 22 |
6V-8144 |
[2] |
RING-RETAINING |
|
| 23 |
1J-6472 |
[2] |
RING-RETAINING |
|
| 24 |
165-2802 |
[1] |
SEAL-LIP TYPE |
|
| 25 |
8T-9599 |
[1] |
RING-RETAINING |
|
| 26 |
1H-7339 |
[1] |
SEAL-O-RING |
|
| 27 |
2H-9247 |
[2] |
SEAL-O-RING |
|
| 28 |
8T-4185 M |
[4] |
BOLT (M10X1.5X50-MM) |
|
| 29 |
8T-7547 M |
[4] |
BOLT (M8X1.25X30-MM) |
|
| 30 |
165-3849 |
[2] |
CAM |
|
| 31 |
176-8131 |
[2] |
SPACER-SPECIAL |
|
| 32 |
165-2805 |
[2] |
BLOCK |
|
| 33 |
165-3838 |
[1] |
BARREL AS |
|
| 34 |
176-8132 |
[2] |
BEARING |
|
| 35 |
8C-3338 |
[4] |
DOWEL |
|
| 36 |
165-3853 |
[1] |
COVER |
|
| 37 |
199-0518 |
[12] |
SEAL-O-RING |
|
| 38 |
176-1026 |
[1] |
PLATE |
|
| 39 |
222-2063 |
[1] |
SHAFT-DRIVE |
|
| 41 |
8T-4140 M |
[1] |
BOLT (M16X2X60-MM) |
|
| 42 |
094-1882 |
[11] |
PLUG |
|
| 43 |
9S-4191 |
[3] |
PLUG (9/16-18-THD) |
|
| 44 |
3J-1907 |
[3] |
SEAL-O-RING |
|
| 45 |
173-1168 Y |
[2] |
ACTUATOR GP-PUMP |
|
| 46 |
094-1875 |
[10] |
DOWEL |
|
| 47 |
111-9916 Y |
[1] |
VALVE GP-SOLENOID (PRESSURE REDUCING) |
|
| 48 |
7I-2272 M |
[2] |
BOLT (M5X0.8X12-MM) |
|
| 49 |
8T-4136 M |
[2] |
BOLT (M10X1.5X25-MM) |
|
| 50 |
8T-4121 |
[2] |
WASHER-HARD (11X21X2.5-MM THK) |
|
| |
M |
|
METRIC PART |
|
| |
Y |
|
SEPARATE ILLUSTRATION |
|
Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. The pump and valve parts are built to fit to the genuine excavator system.
2. The pump parts and valve are supplied strictly according to the genuine parts catalog.
3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
