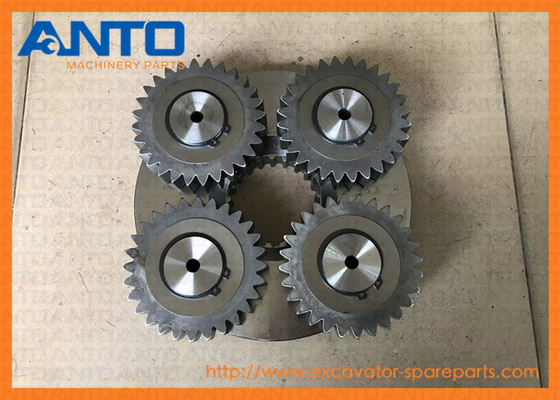

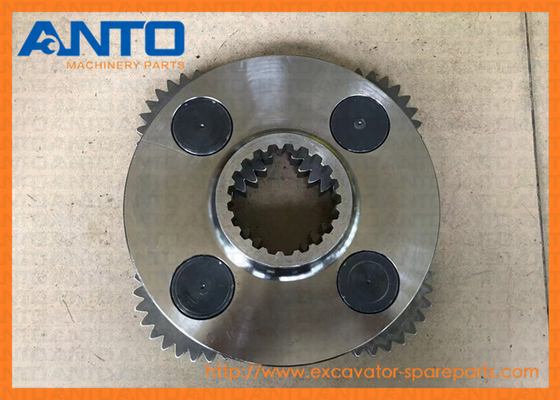

XKAQ-00437 XKAQ00437 R290LC-7 Excavator Swing Gearbox Planetary Carrier Assy No.1

XKAQ-00437 XKAQ00437 R290LC-7 Excavator Swing Gearbox Planetary Carrier Assy No.1
XKAQ-00437 XKAQ00437 R290LC-7 Excavator Swing Gearbox Planetary Carrier Assy No.1

Large Image :  XKAQ-00437 XKAQ00437 R290LC-7 Excavator Swing Gearbox Planetary Carrier Assy No.1

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: R290LC-7
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 568 PCS per week
Detailed Product Description
Category: Excavator Swing Gearbox Parts Machine Model: R290LC-7 R305LC-7 R320LC-7 RD340LC-7
Parts No.: XKAQ-00437 Parts Name: Planet Carrier Assy No.1
Warranty: 3/6 Months Package: Standard Export Carton
High Light:

R290LC-7 Excavator Swing Gearbox

,

XKAQ-00437 Excavator Swing Gearbox

,

RD340LC-7 Excavator Swing Gearbox



  • XKAQ-00437 XKAQ00437 R290LC-7 Excavator Swing Gearbox Planetary Carrier Assy No.1






  • Spec Sheet
Product name Swing gearbox planet carrier no.1
Part number XKAQ-00437
Model R290LC-7 R305LC-7 R320LC-7 RD340LC-7
Category group HYUNDAI Excavator Spare Parts
MOQ 1 PCS
Warranty 6 months
Payment term T/T, Western Union, PAYPAL
Delivery time 1-3 days after receiving the payment
Packing As request or standard packing
Means of transport By sea/air, DHL FEDEX UPS TNT EMS




  • Application

7-SERIES CRAWLER EXCAVATOR R290LC7 R290LC7A R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7 Hyundai





  • More planet carrier for HYUNDAI machines

XKAQ-00473 CARRIER ASSY 1
R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00453 CARRIER-1
R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XJCK-00141 CARRIER
R320LC7

39Q8-42190 CARRIER 2
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42270 CARRIER 1
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42180 CARRIER ASST KIT 1
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42260 CARRIER ASST KIT 2
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

XKAQ-00965 CARRIER 3 ASSY
R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00966 CARRIER 3
R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH

39Q8-12201 CARRIER NO.2
HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

39Q8-12281 CARRIER NO.1
HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

39Q8-12190 CARRIER ASSY NO.2
HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

XKAQ-00430 CARRIER-2
R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7, R320LC7A, RD340LC-7

XKAQ-00429 CARRIER ASSY-2
R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7, R320LC7A, RD340LC-7

XKAQ-00016 CARRIER
R290LC7, R290LC7A, R290LC7H, R300LC7, R305LC7, R320LC7, R320LC7A

XJDH-01189 CARRIER ROLLER ASSY
R28-7, R35-7, R36N-7

XJDK-00054 CARRIER 2 SUB ASSY
R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9

XJDK-00117 CARRIER 2 KIT
R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9

XJDK-00116 CARRIER 1 KIT
R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9

XKAH-01282 CARRIER NO2.
R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAH-01422 CARRIER ASSY-NO.2
R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAH-01285 CARRIER NO1.
R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAH-01421 CARRIER ASSY-NO.1
R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAQ-00198 CARRIER-NO.1
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC7H, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC...

XKAQ-00438 CARRIER-1
R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7, R320LC7A, RD340LC-7

XJCK-00134 CARRIER
R290LC7, R320LC7

3524120-0052 CARRIER-NO1
33HDLL, R250LC3, R290LC3, R290LC3H, R290LC3LL, R290LC7

3524120-0085 CARRIER-NO2
R290LC3, R290LC7, R360LC3

3521120-0053 CARRIER SUB-NO1
R250LC3, R290LC3, R290LC3H, R290LC7

3521120-0062 CARRIER SUB-NO2
R290LC3, R290LC7

XKAQ-00467 CARRIER ASSY 2
R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00468 CARRIER-2
R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00473 CARRIER ASSY 1
R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00453 CARRIER-1
R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XJCK-00141 CARRIER
R320LC7

XKAH-01241 CARRIER 2
R320LC9, R330LC9A, R330LC9S, R330LC9SH





  • Parts List Diagram
Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY SEE 4101
*-2. 31N8-10180 [1] SWING REDUCTION GEAR
1. XKAQ-00427 [1] CASING
2. XKAQ-00428 [1] SHAFT-DRIVE
3. XKAQ-00117 [1] BEARING-ROLLER
4. XKAQ-00119 [1] SEAL-OIL
5. XKAQ-00120 [1] BEARING-ROLLER
6. XKAQ-00429 [1] CARRIER ASSY-2
7. XKAQ-00430 [1] CARRIER-2
8. XKAQ-00431 [4] GEAR-PLANET-2
9. XKAQ-00432 [4] PIN ASSY-2
N10. XKAQ-00433 [1] PIN-2
N11. XKAQ-00434 [1] BUSHING-2
12. XKAQ-00435 [8] WASHER-THRUST
13. XKAQ-00050 [4] PIN-SPRING
14. XKAQ-00436 [1] GEAR-SUN,2
15. XKAQ-00437 [1] CARRIER ASSY-1
16. XKAQ-00438 [1] CARRIER-1
17. XKAQ-00439 [4] GEAR-PLANET-1
18. XKAQ-00440 [4] PIN ASSY-1
N19. XKAQ-00441 [1] PIN-1
N20. XKAQ-00079 [1] BUSHING-1
21. XKAQ-00417 [4] PLATE-SIDE-1
22. XKAQ-00416 [4] PLATE-SIDE-2
23. XKAQ-00041 [4] RING-STOP
24. XKAQ-00048 [4] PIN-SPRING
25. XKAQ-00442 [1] GEAR-SUN-1
26. XKAQ-00444 [1] GEAR-RING
27. XKAQ-00443 [1] PLATE-COVER
28. XKAQ-00445 [1] SPACER
29. XKAQ-00446 [1] RING-SPACER
30. XKAQ-00072 [2] PIN-KNOCK
31. XKAQ-00447 [1] PLATE-THRUST-3
32. XKAQ-00013 [1] GEAR-PINION
33. XKAQ-00043 [1] PLATE-LOCK
34. XKAQ-00064 [8] BOLT-HEX
35. XKAQ-00042 [2] BOLT-HEX
36. XKAQ-00292 [1] WASHER-LOCK
37. XKAQ-00448 [12] BOLT-SOCKET
38. XKAQ-00049 [1] PLUG
39. XKAQ-00066 [2] PLUG
40. XKAQ-00167 [1] PIPE-GAUGE
41. XKAQ-00449 [1] BAR-GAGE
42. XKAQ-00143 [1] AIR BREATHER ASSY

XKAQ-00437 XKAQ00437 R290LC-7 Excavator Swing Gearbox Planetary Carrier Assy No.1 0





  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .





  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
