Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Swing Gearbox Parts | Machine Model: | R160-7 R180-7 R200-7 R210-7 R220-7 |
|---|---|---|---|
| Parts No.: | XKAQ-00015 | Parts Name: | Planet Carrier Assy |
| Warranty: | 3/6 Months | Package: | Standard Export Carton |
| Highlight: | XKAQ-00067 Carrier Assy,XKAQ00015 Carrier Assy,R210LC-7 Carrier Assy |
||

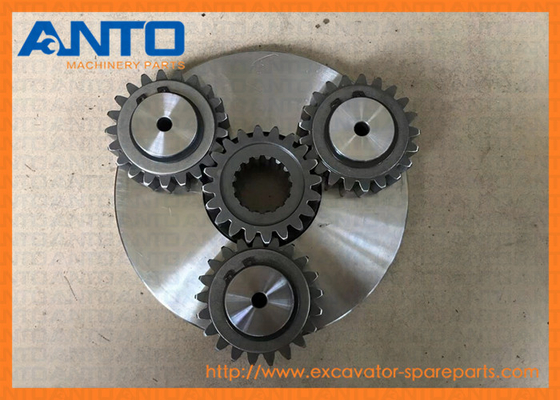

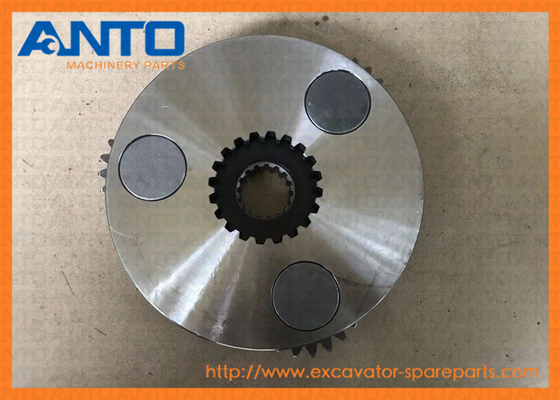

| Product name | Swing gearbox carrier |
| Part number | XKAQ-00015 |
| Model | R160-7 R180-7 R200-7 R210-7 R220-7 |
| Category group | HYUNDAI Excavator Spare Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
7 SERIES WHEEL EXCAVATOR R170W7 R170W7A R200W7 R200W7A
7-SERIES CRAWLER EXCAVATOR R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 Hyundai
ZGAQ-02327 CARRIER-HUB
HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S
XKAQ-00653 Hyundai
XKAQ-00653 CARRIER 1 ASSY
R110-7, R110-7A, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9
XKAH-00449 CARRIER
R210LC3H, R210LC7
ZGAQ-04465 CARRIER-PLANET
R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S
ZGAQ-04466 CARRIER-PLANET
R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S
39Q6-12190 CARRIER 2
HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9...
39Q6-12260 CARRIER NO.1
HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9...
39Q6-12180 CARRIER ASSY KIT 1
HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W...
39Q6-12250 CARRIER ASSY KIT 2
HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W...
39Q6-42190 CARRIER 2
HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, RD210...
39Q6-42260 CARRIER 1
HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, RD210...
39Q6-42250 CARRIER ASSY KIT 1
HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, RD210...
XKAQ-00075 CARRIER 2
HX180L, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R200W7A, R210LC7, R210LC7A,...
116963 CARRIER
R160LC3
719281 CARRIER ASSY
R160LC3
719280 CARRIER KIT
R160LC3
6321120-0027 CARRIER SUB
R160LC3
6324120-0048 CARRIER 1
R160LC3
6324120-0046 CARRIER 2
R160LC3
ZGAQ-02948 CARRIER-HUB
HW140, R140W9, R140W9A, R140W9S
ZGAQ-02932 CARRIER-PLANET
R140W9, R140W9S
ZGAQ-02931 CARRIER-PLANET
R140W9, R140W9S
ZGAQ-02917 CARRIER-DISC
HW140, R140W9, R140W9A, R140W9S
ZTAM-00854 CARRIER KIT-PLANET GEAR
R140W9
XKAQ-00753 CARRIER ASSY 2
HX180L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R...
XKAQ-00754 CARRIER ASSY 1
HX180L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R...
XKAQ-00531 CARRIER 1
HX160L, HX180L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R2...
XJDK-00095 CARRIER KIT
R16-9, R16-9CA, R16-9NH
XJDK-00022 CARRIER SUB ASSY-2
R16-9, R16-9CA, R16-9NH, R17Z-9A, R17Z-9ACA, R17Z-9ANH
4472-377-037 CARRIER-DISC
R130W3, R170W3, R170W7
4472-377-047 CARRIER-DISC
R170W7
4472-377-035 CARRIER-PLANET
R170W3, R170W7
4472-322-012 CARRIER-DISC
R170W3, R170W7
ZGAQ-02208 CARRIER-DISC
HW210, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S
ZGAQ-02224 Hyundai
ZGAQ-02224 CARRIER-PLANET
R170W7, R170W7A, R170W9S, R180W9S, R200W7, R200W7A, R210W-9
ZGAQ-02225 CARRIER-PLANET
R170W7, R170W7A, R170W9S, R180W9S, R200W7, R200W7A, R210W-9
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | |
| *-2. | 31N6-10150 | [1] | REDUCTION GEAR | ILL.CHANGE |
| 1 | XKAQ-00002 | [1] | CASING ASSY | |
| 2 | XKAQ-00005 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00018 | [1] | SPACER | |
| 5 | XKAQ-00026 | [1] | BEARING-ROLLER | |
| 6 | XKAQ-00032 | [1] | SEAL-OIL | |
| 7 | XKAQ-00029 | [1] | BEARING-ROLLER | |
| 8 | XKAQ-00076 | [1] | PLATE-THRUST | |
| 9 | XKAQ-00075 | [1] | CARRIER 2 | |
| 10 | XKAQ-00074 | [1] | RING-STOP | |
| 11 | XKAQ-00073 | [1] | GEAR-RING | |
| 12 | XKAQ-00072 | [4] | PIN-KNOCK | |
| 13 | XKAQ-00014 | [1] | GEAR-PINION | |
| 14 | XKAQ-00071 | [6] | WASHER-THRUST | |
| 15 | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 16 | XKAQ-00070 | [3] | PIN 2 | INCL 23 |
| 17 | XKAQ-00048 | [6] | PIN-SPRING | |
| 18 | XKAQ-00011 | [1] | GEAR-SUN 2 | |
| 19 | XKAQ-00015 | [1] | CARRIER 1 | |
| 20 | XKAQ-00057 | [3] | PLATE-SIDE 1 | |
| 21 | XKAQ-00019 | [3] | PIN 1 | |
| 22 | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| N23. | @ | [3] | BUSHING 2 | |
| 24 | XKAQ-00025 | [3] | GEAR-PLANET 1 | |
| 25 | XKAQ-00044 | [2] | WASHER-LOCK | |
| 26 | XKAQ-00068 | [1] | PLATE-SIDE 3 | |
| 27 | XKAQ-00067 | [1] | GEAR-SUN 1 | |
| 29 | XKAQ-00049 | [1] | PLUG | |
| 30 | XKAQ-00066 | [2] | PLUG | |
| 31 | XKAQ-00065 | [2] | BOLT-SOCKET | |
| 32 | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 33 | XKAQ-00034 | [1] | BAR-GAUGE | |
| 34 | XKAQ-00031 | [1] | PLATE-COVER | |
| 35 | XKAQ-00064 | [8] | BOLT-HEX | |
| 36 | XKAQ-00043 | [1] | PLATE-LOCK | |
| 37 | XKAQ-00042 | [4] | BOLT-HEX | |
| 38 | XKAQ-00041 | [3] | RING-STOP | |
| 39 | XKAQ-00040 | [3] | PLATE-SIDE 2 | |
| 40 | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| 40-1. | @ | [1] | POST | |
| 40-2. | HHI22-WP41 | [1] | CAP-BREATHER | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
