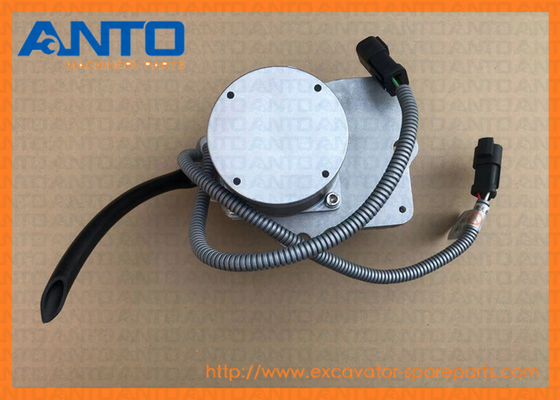

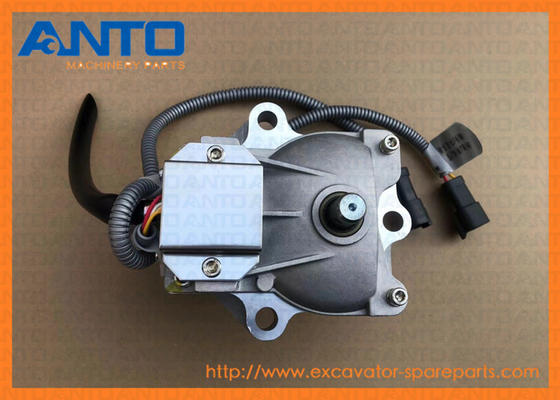

7834-41-2001 7834-41-2002 7834-41-2003 Komatsu PC200-7 Excavator Throttle Motor

• 7834-41-2001 7834-41-2002 7834-41-2003 KOMATSU PC200-7 Excavator Throttle Motor

• Specification

• Application

BULLDOZERS D275A
EXCAVATORS PC130 PC160 PC180 PC200 PC200LL PC200SC PC210 PC220 PC220LL PC228 PC228US PC230 PC230NHD PC240 PC270 PC270LL PC290 PC308 PW160 PW200 PW220
MOBILE CRUSHERS AND RECYCLERS BR380JG BZ210
OTHER BP500 Komatsu

• More motor apply for KOMATSU machine

21Y-60-21210 MOTOR ASS'Y
BZ210, PC128UU

ND116340-3860 KOMATSU
ND116340-3860 MOTOR ASS'Y,FAN
PC1250, PC1250SP

708-8F-00211 MOTOR ASS'Y
BP500, BR300S, PC200, PC200SC, PC210

706-7G-01011 MOTOR ASS'Y
PC228, PC228US, PC308

7834-41-2000 KOMATSU
7834-41-2000 MOTOR ASS'Y
BZ210, D275A, PC160, PC180, PC200, PC210, PC220, PC228, PC228US, PC230, PC230NHD, PC240, PC270, PC290, PC308, PW200, PW220

7834-41-2002 KOMATSU
7834-41-2002 MOTOR ASS'Y
BR300S, BR380JG, BZ210, D61EX, D61PX, PC130, PC160, PC200, PC220, PC228, PC228US, PC270, PC290, PW160, PW180, PW200, PW220

7834-41-2003 KOMATSU
7834-41-2003 MOTOR ASS'Y
BZ210, D275A, PC160, PC200, PC220, PC228, PC228US, PC270

8255-60-1170 MOTOR
BZ120, BZ200, BZ210

KWKKS-75-71370 MOTOR,(NOT SHOWN)
BR200, BR200J, BR200R, BR300J, BR310JG, BR500JG

ND292500-0650 MOTOR
D375A, D61EX, D61PX

705-21-26050 KOMATSU
705-21-26050 MOTOR ASS'Y
PC1100, PC1100SE, PC1100SP, PC1250, PC1250SE, PC1250SP, WA1200, WA900, WA900L, WD900

421-926-3612 MOTOR ASS'Y
AIR, BATTERY, FRONT, GD555, GD655, GD675, HYDRAULIC, WA150, WA150PZ, WA200, WA250PZ, WA320, WA320PZ, WA380, WA430, WA500

708-7W-00140 MOTOR ASS'Y
D155A, D155AX, D275A, D275AX

871070023 MOTOR, ASSY.
PC35R

708-8F-00171 MOTOR ASS'Y
PC200, PC210

708-8F-00120 MOTOR ASS'Y
PC220, PC220LL, PC228, PC228US, PC228UU, PC230, PC240

17A-Z11-2430 MOTOR ASS'Y,R.H.
D155AX, D41E, D41E6T, D41P, D61EX, D61PX, D65EX, D65PX, D85EX, D85PX

708-8F-00070 MOTOR ASS'Y
PC220, PC228UU, PC230, PC240

706-7K-01170 MOTOR ASSEMBLY
PC220LL, PC300, PC300HD, PC350, PC350HD, PC400, PC450, PRESSURE, RAIN

20Y-06-15810 MOTOR ASS'Y
PC200, PC220, PC300, PC300HD, PC310, PC400, PC410

• Parts list diagram

Pos. Part No Qty Parts name Comments

1. 20Y-43-31311 [1] BRACKET Komatsu 4.2 kg.

["SN: 250001-UP"]

2. 01010-81230 [1] BOLT Komatsu 0.043 kg.

["SN: 200001-UP"] ancatalogs:["0101051230", "01010B1230"]

3. 01643-31232 [1] WASHER Komatsu 0.027 kg.

["SN: 200001-UP"] ancatalogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]

4. 01010-80820 [2] BOLT Komatsu 0.013 kg.

["SN: 200001-UP"] ancatalogs:["801014067", "0101050820", "801015086"]

5. 01643-30823 [2] WASHER Komatsu 0.004 kg.

["SN: 200001-UP"] ancatalogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]

6. 7834-41-2003 [1] MOTOR ASS'Y Komatsu OEM 3.14 kg.

["SN: 258354-UP"] ancatalogs:["7834413002", "7834412002", "7834402000", "7834412001", "7834402002", "7834412000", "7834413000", "7834402001", "7834413001", "7834402003", "7834413003", "7834402004"]

6. 7834-41-2002 [1] MOTOR ASS'Y Komatsu OEM 3.14 kg.

["SN: 250753-258353"] ancatalogs:["7834413002", "7834402000", "7834412001", "7834402002", "7834412000", "7834413000", "7834402001", "7834413001", "7834402003", "7834413003", "7834412003", "7834402004"]

6. 7834-41-2001 [1] MOTOR ASS'Y Komatsu OEM 3.14 kg.

["SN: 203755-250752"] ancatalogs:["7834413002", "7834412002", "7834402000", "7834402002", "7834412000", "7834413000", "7834402001", "7834413001", "7834402003", "7834413003", "7834412003", "7834402004"]

7. 01010-81040 [3] BOLT Komatsu 0.288 kg.

["SN: 200001-UP"] ancatalogs:["0101051040", "R0101081040"]

8. 01643-31032 [3] WASHER Komatsu 0.054 kg.

["SN: 200001-UP"] ancatalogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]

9. 20Y-43-12143 [1] LEVER Komatsu 0.272 kg.

["SN: 200001-UP"]

10. 01010-81030 [1] BOLT Komatsu OEM 0.03 kg.

["SN: 200001-UP"] ancatalogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]

11. 01602-21030 [1] WASHER Komatsu 0.004 kg.

["SN: 200001-UP"] ancatalogs:["YM22217100000"]

12. 01016-51070 [1] BOLT Komatsu 0.06 kg.

["SN: 200001-UP"]

13. 01580-11008 [1] NUT Komatsu 0.011 kg.

["SN: 200001-UP"]

14. 04434-50812 [1] CLIP Komatsu 0.015 kg.

["SN: 250001-UP"]

15. 01010-81220 [1] BOLT Komatsu 0.032 kg.

["SN: 250001-UP"] ancatalogs:["0101051220"]

17. 20Y-43-23441 [1] SPRING ASS'Y Komatsu 0.5 kg.

["SN: 200001-UP"] ancatalogs:["20Y4323442"]

18. 01582-11008 [1] NUT Komatsu 0.01 kg.

["SN: 200001-UP"] ancatalogs:["0158201008", "801750002"]

19. 04248-31018 [1] ROD Komatsu 0.111 kg.

["SN: 200001-UP"]

20. 01508-41006 [1] NUT Komatsu 0.008 kg.

["SN: 200001-UP"] ancatalogs:["500611661", "0150821006", "0150811006"]

21. 04250-91056 [1] END Komatsu 0.075 kg.

["SN: 200001-UP"]

22. 01593-31008 [1] NUT Komatsu 0.01 kg.

["SN: 200001-UP"] ancatalogs:["0159311008", "0159301008"]

23. 04050-12018 [1] PIN Komatsu 0.001 kg.

["SN: 200001-UP"] ancatalogs:["0405002018"]

25. 20Y-43-12180 [1] JOINT Komatsu 0.1 kg.

["SN: 200001-UP"]

26. 01602-20619 [1] WASHER Komatsu 0.004 kg.

["SN: 200001-UP"] ancatalogs:["802150506"]

27. 01580-10605 [1] NUT Komatsu 0.01 kg.

["SN: 200001-UP"] ancatalogs:["21D0921430", "M018200600006", "801920103"]

• We could supply the following spare parts.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Strong part number database.

If you can provide the right model and part number, we can supply the right product.

2.Professional and experienced salesperson.

Our founder has been into this field for more than 6 years, with rich experiences.

3.Strict and complete company rules.

We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.

4.Good management system.

No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.

5.Good service attitude.

As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.

• Packing and Delivery

Packaging Details

Plastic Bag & Plastic Box , Customize , Or customer's Brand

Delivery Time

5-7 day after received the payment

Type of Shipping :

EMS , DHL , TNT , UPS , FeDex , By air & By sea .

• Warranty

1. Warranty Period: Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Our service

1.Professional technology support

2.After-sale service

3.24 hours on-line service

4.Help you to solve your excavator problems
