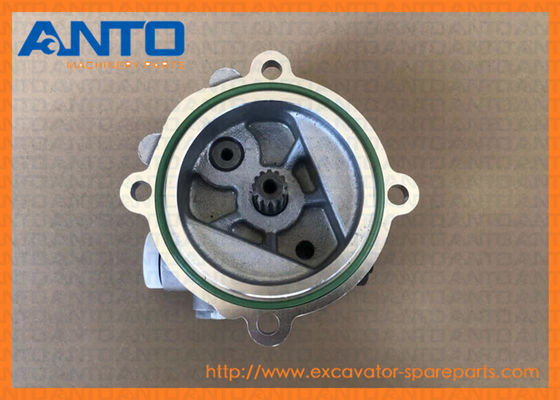

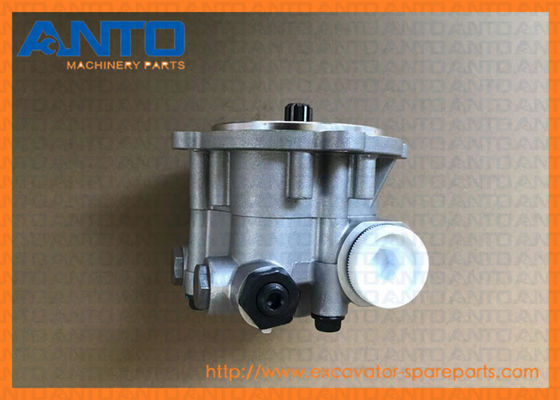

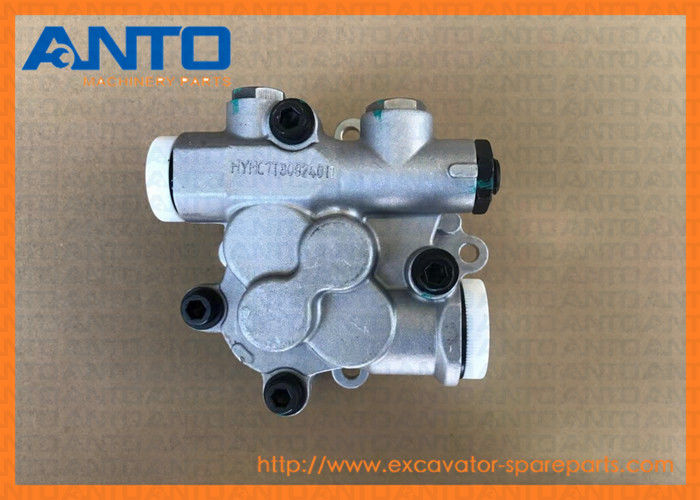

2902440-0396A Gear Pump For Hyundai R210LC3 Excavator Hydraulic Pump

• Application

3 SERIES WHEEL EXCAVATOR R200W3
3-SERIES CRAWLER EXCAVATOR R210LC3 R210LC3H R250LC3
FORESTRY MACHINE 33HDLL R210LC3LL
OLD CRAWLER EXCAVATOR R200LC
OLD WHEEL EXCAVATOR R200W2 Hyundai

• Parts list Diagram

Pos. Part No Qty Parts name Comments

*. 31EM-10010 [1] MAIN PUMP *-1∼*-4

*. 31EM-10100 [1] MAIN PUMP-LOW EMISSION *-1∼*-4

N*-1. K3V112DT-1RER [1] MAIN PUMP UNIT

111. 2933800774 [1] SHAFT-DRIVE(F)

113. 2933800883 [1] SHAFT-DRIVE(R)

114. 2953801763 [1] COUPLING-SPLINE

123. PNUP308K [2] BEARING-ROLLER

124. PRNA6906 [2] BEARING-NEEDLE

127. 38800-127 [4] SPACER-BEARING

N141. 2933800787 [2] BLOCK-CYLINDER

151. @ [18] PISTON

152. @ [18] SHOE

153. 2943800463 [2] PLATE-SET

156. 2953801765 [2] BUSHING

157. 2953801769 [18] SPRING-CYLINDER

158. 2953801764 [2] SPACER

211. 68710-00-211 [2] PLATE-SHOE

N212. 2933800813 [2] PLATE-SWASH

214. P1R2025125 [2] BUSHING

251. 2923800809 [2] SUPPORT-SP

261. 2943800464 [1] COVER-FRONT

271. 2923800807 [2] CASING-PUMP

312. 2923801021 [1] BLOCK-VALVE

313. 3890R-313N [1] PLATE-VALVE-RH

314. 3890L-314N [1] PLATE-VALVE-LH

401. 2953801767 [8] SCREW

406. OSBM820 [4] SCREW-HEX SOC HD

466. OVP14 [4] PLUG

468. OVP34 [4] PLUG

490. PBP116-2403 [18] PLUG

N531. 2943800517 [2] PIN-TILTING

532. 2943800462 [2] PISTON-SERVO

534. 2953801761 [2] STOPPER(L)

535. 2953801762 [2] STOPPER(S)

N541. 2953802029 [4] SEAT

N543. 2953802030 [2] STOPPER(1)

N544. 2953802043 [2] STOPPER(2)

545. ODW732 [4] BALL-STEEL

N548. 2953802202 [2] PIN-FEED BACK

702. OORBG35 [2] O-RING

710. OORBG95 [1] O-RING

717. OORBG145 [4] O-RING

724. OORBP8 [16] O-RING

725. OORBP11 [4] O-RING

728. OORBP24 [4] O-RING

732. OORBP18 [2] O-RING

774. PTCV40V [1] SEAL-OIL

789. OT2BP18 [2] RING-BACK UP

792. OT2BG35 [2] RING-BACK UP

806. ORNM16 [2] NUT

808. ORNM20 [2] NUT

824. OSR40 [2] RING-SNAP

885. PJR812 [2] PIN-VALVE PLATE

886. OSPV614 [4] PIN-SPRING

901. OEBM10 [2] BOLT-EYE

953. PSSSM1630 [2] SCREW-SET

954. 2953801768 [2] SCREW-SET

981. PNPA-2550A [1] PLATE-NAME

983. OSK2548 [2] PIN

*-2. 293G-9C39 [2] REGULATOR ASSY

*-3. 2902440-0396A [1] GEAR PUMP ASSY

*-4. 2931100-0056 [1] EPPR VLV CASING ASSY

011. 3853802464 [2] PISTON ASSY

013. 2953801893 [1] CYLINDER ASSY-RH

014. 2953801894 [1] CYLINDER ASSY-LH

030. 2953801990 [2] SWASH PLATE ASSY

041. 2953802048 [2] CHECK ASSY 1

042. 2953802049 [2] CHECK ASSY 2

530. 2953801989 [2] TILTING PIN ASSY





• Description

Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.


• Advantage

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


• Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
