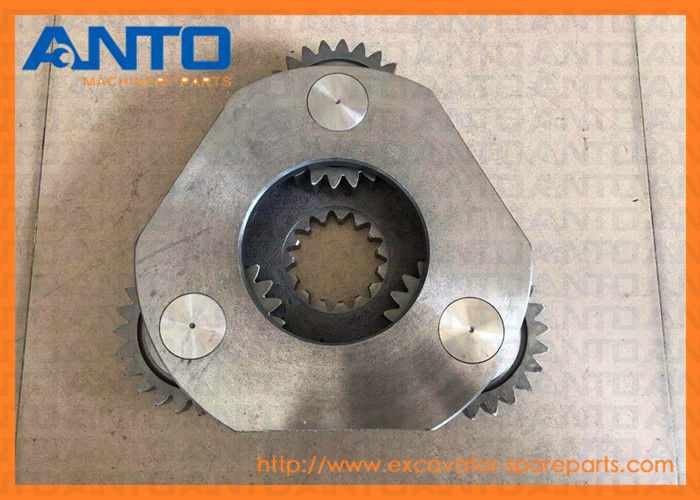

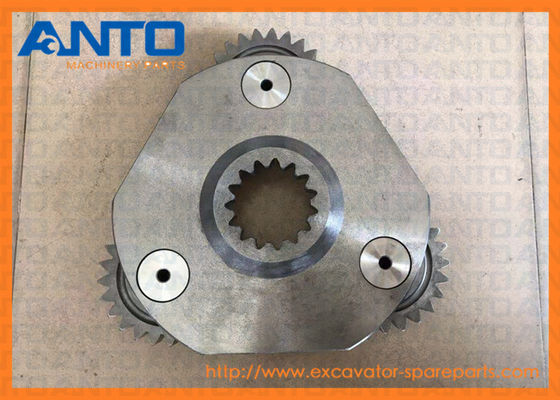

VOE14547273 14547273 EC350D Excavator Swing Gearbox Planet Carrier Assembly

Large Image : VOE14547273 14547273 EC350D Excavator Swing Gearbox Planet Carrier Assembly

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	EC350D

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability:	568 PCS per week

Contact Now

Detailed Product Description

Category:	Excavator Swing Gearbox Parts	Machine Model:	EC290B EC290C EC300D EC300C EC330B EC350D
Parts No.:	VOE14547273 14547273	Parts Name:	Planet Carrier Assy
Warranty:	3/6 Months	Package:	Standard Export Carton
Highlight:	EC350D Excavator Swing Gearbox , 14547273 Excavator Swing Gearbox , EC290B Planet Carrier Assy

VOE14547273 14547273 EC350D Excavator Swing Gearbox Planet Carrier Assembly

Spec Sheet

spare parts name	planet carrier assy
Equipment Model	EC290B EC290C EC300D EC300C EC330B EC350D
Parts Category	Excavator swing gearbox parts
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

EC290B EC290C EC300D EC300E EC330B EC340D EC350D EC700C EC700CHR ECR305C FC3329C PL3005D PL3005E Vo-lvo.Heavy

More planet carrier for Vo-lvo machines

VOE14547274 Planet carrier
EC290B, EC290C, EC300D, EC300E, EC330B, EC340D, EC350D, EC700C, EC700CHR, ECR305C, FC3329C, PL3005D, PL3005E

VOE14609496 Planet Carrier
EC700B, EC700BHR, EC700C

VOE14547267 Planet carrier
EC290B, EC290C, EC300D, EC300E, EC330B, EC340D, EC350D, EC700C, EC700CHR, ECR305C, FC3329C, PL3005D, PL3005E

VOE14566418 Planet carrier
EC240C, EC290B, EC290C, EC300D, EC300E, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC380E, EC380EHR, ECR305C, FC2924C, FC3329C, PL3005D

VOE14566411 Planet carrier
EC240C, EC290B, EC290C, EC330B, EC330C, EC350E, EC360B, EC360C, EC360CHR, EC380DHR, EC380E, EC380EHR, ECR305C, FC2924C, FC3329C, PL3005D

VOE14619959 Planet carrier
EC700C, EC700CHR

VOE14566426 Planet carrier
EC290C, EC330B, EC330C, EC360B, EC360C, EC360CHR, EC380DHR, ECR305C, FC3329C, PL3005D

VOE14620663 Planet carrier
EC700C, EC700CHR

VOE14620657 Planet carrier
EC700C, EC700CHR

VOE14620656 Planet carrier
EC700C, EC700CHR, EC750D, EC750E

VOE14620662 Planet carrier
EC700C, EC700CHR, EC750D, EC750E

VOE14620649 Planet carrier
EC700C, EC700CHR

VOE14547267 Planet carrier
EC290B, EC290C, EC300D, EC300E, EC330B, EC340D, EC350D, EC700C, EC700CHR, ECR305C, FC3329C, PL3005D, PL3005E

VOE14609496 Planet Carrier
EC700B, EC700BHR, EC700C

VOE14566218 Planet carrier
EC240B, EC240C, EC250D, EC250E, FC2924C

VOE14566217 Planet carrier
EC240B, EC240C, EC250D, EC250E, FC2924C

VOE14547274 Planet carrier
EC290B, EC290C, EC300D, EC300E, EC330B, EC340D, EC350D, EC700C, EC700CHR, ECR305C, FC3329C, PL3005D, PL3005E

VOE23927 Planet shaft
A40D, T450D

VOE14619959 Planet carrier
EC700C, EC700CHR

VOE14566411 Planet carrier
EC240C, EC290B, EC290C, EC330B, EC330C, EC350E, EC360B, EC360C, EC360CHR, EC380DHR, EC380E, EC380EHR, ECR305C, FC2924C, FC3329C, PL3005D
VOE14566210 Vo-lvo.Heavy
VOE14566210 Planet carrier
EC240B, EC240C, EC250D, EC250E, FC2924C

VOE11103116 Planet carrier
A25D, A25E, A25F, A25F/G, A25G

VOE14566211 Planet carrier
EC240B, EC240C, EC250D, EC250E, FC2924C

VOE14566418 Planet carrier
EC240C, EC290B, EC290C, EC300D, EC300E, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC380E, EC380EHR, ECR305C, FC2924C, FC3329C, PL3005D

Parts List Diagram

Pos. Part No Qty Parts name Comments

VOE14640501 [1] Swing gearbox S/N -231115, -270378, -280656

VOE14724049 [1] Swing gearbox S/N 231116-, 270379-, 280657-

1. VOE14547262 [1]

2. VOE14547260 [1] Ring

3. VOE14547259 [1] Collar

4. VOE14640502 [1] Shaft

5. VOE14547263 [1] Cover

6. VOE14547266 [1] Gear

7. VOE984363 [20] Hex. socket screw

8. VOE944088 [12] Screw

9. VOE14547261 [1] Bearing

10. SA9415-43012 [1] Plug

11. VOE914167 [1] Lubriing nipple

12. VOE14566830 [1] Seal

13. VOE14547265 [1] Bearing

14. SA9541-01110 [1] Retaining ring

15. SA7118-30380 [1] Thrust ring

16. VOE14547272 [1] Gear

17. VOE14547278 [1] Thrust washer

18. VOE14547279 [1] Gear

19. VOE14880960 [1] Retaining ring

20. VOE14547281 [1] Pipe

21. VOE14547280 [1] Planet carrier

22. VOE14547267 [1] Planet carrier

23. VOE14547271 [4] Pin

24. VOE14547268 [4] Gear

25. VOE14547269 [4] Bushing

26. VOE14556491 [8] Washer

27. SA9325-06012 [4] Spring pin

28. VOE14547273 [1] Planet carrier

29. VOE14547274 [1] Planet carrier

30. VOE14547275 [3] Gear

31. SA7117-30230 [3] Needle bearing

32. VOE14547277 [3] Pin

33. SA9325-06012 [3] Spring pin

34. VOE14547276 [6] Washer

35. VOE950677 [4] Pin

36. VOE949329 [1] Gasket

37. VOE14722461 [1] Draining valve

VOE14547273 14547273 EC350D Excavator Swing Gearbox Planet Carrier Assembly 0

Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
