Pos. Part No Qty Parts name Comments
47. YN20M00107S047 [1] LEVER SM (For F1, F2 ONLY) Superseded by part number: YN20M00107S090
. . YN20M00107F1 [1] AIR CONDITIONER SM AIR CONDITIONING Assy, Serial Range: YQ11-06001-YQ11-06070 Superseded by part number: YT20M00022F4
48. YN20M00107S048 [1] ROD SM (For F1, F2 ONLY) Superseded by part number: YN20M00107S091
49. YN20M00107S049 [1] ROD SM
. . YN20M00107F2 [1] AIR CONDITIONER SM AIR CONDITIONING Assy, Serial Range: YQ11-06071-YQ11-06356 Superseded by part number: YT20M00022F4
50. YN20M00107S050 [1] ROD SM
51. YN20M00107S051 [1] PLATE SM
. . YN20M00107F3 [1] AIR CONDITIONER SM AIR CONDITIONING Assy, Start Serial: YQ11-06357 Superseded by part number: YT20M00022F4
54. YN20M00107S054 [1] SCREW SM Cap
60. YN20M00107S060 [1] PACKING KOB
1. YN20M00107S001 [23] SCREW KOB Tapping
61. YN20M00107S061 [1] PACKING KOB
2. YN20M00107S002 [1] HARNESS KOB Superseded by part number: YT20M00022S002
62. YN20M00107S062 [1] PACKING KOB
3. YN20M00107S003 [3] ACTUATOR KOB Superseded by part number: YT20M00022S113
63. YN20M00107S063 [1] O-RING SM O-ring Superseded by part number: 2445Z1604D6
4. YN20M00107S004 [1] RESISTOR KOB Superseded by part number: LQ20M00059S039
77. YN20M00107S077 [1] GASKET SM Packing
5. YN20M00107S005 [1] KOB
78. YN20M00107S078 [1] RIGID TUBE SM
6. YN20M00107S006 [1] DAMPER KOB
79. YN20M00107S079 [1] RIGID TUBE SM
7. YN20M00107S007 [1] LEVER KOB
82. YN20M00107S082 [1] RIGID TUBE SM
8. YN20M00107S008 [1] KOB (For F1 ONLY)
83. YN20M00107S083 [1] BRACKET SM (For F2, F3 ONLY)
9. YN20M00107S009 [1] DAMPER KOB
84. YN20M00107S084 [1] BOX SM (For F2, F3 ONLY)
10. YN20M00107S010 [1] LEVER KOB
85. YN20M00107S085 [1] SENSOR SM Thermometer (For F3 ONLY)

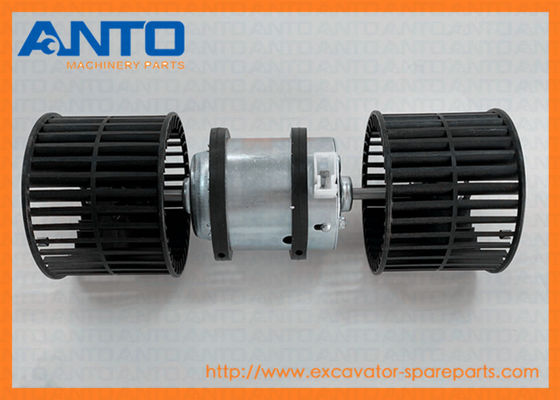

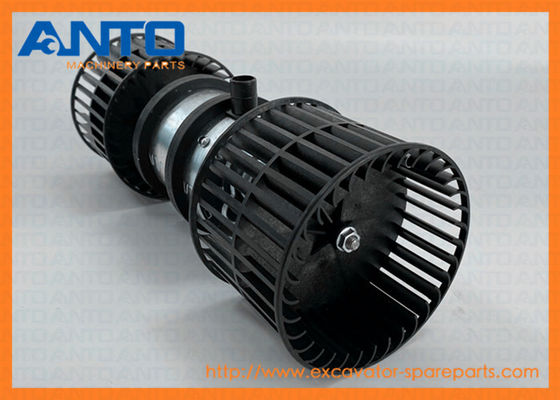

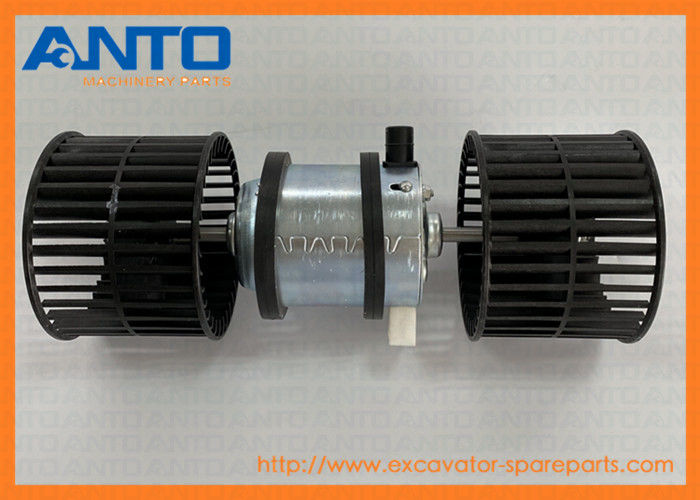

11. YN20M00107S011 [1] BLOWER KOB Motor Superseded by part number: YN20M00107S111
86. YN20M00107S086 [1] BOX SM (For F3 ONLY)
12. YN20M00107S012 [1] LEVER KOB
87. YN20M00107S087 [1] BOX SM (For F3 ONLY)
13. YN20M00107S013 [1] DAMPER KOB
88. YN20M00107S088 [1] LEVER SM (For F3 ONLY)
14. YN20M00107S014 [1] LEVER KOB
89. YN20M00107S089 [1] LEVER SM (For F3 ONLY)
15. YN20M00107S015 [1] LEVER KOB
90. YN20M00107S090 [1] LEVER SM (For F3 ONLY)
16. YN20M00107S016 [1] ROD KOB
91. YN20M00107S091 [1] ROD SM (For F3 ONLY)
17. YN20M00107S017 [1] ROD KOB
92. YN20M00107S092 [1] PLATE SM (For F3 ONLY)
18. YN20M00107S018 [1] ROD KOB
19. YN20M00107S019 [2] RELAY SM
20. YN20M00107S020 [1] EVAPORATOR KOB
21. YN20M00107S021 [1] VALVE KOB
22. 2445Z1604D4 [1] O-RING KOB
23. 2445Z1604D5 [2] O-RING KOB
24. YN20M00107S024 [2] SCREW SM Cap
25. YN20M00107S025 [1] THERMOSTAT KOB
26. YN20M00107S026 [1] HOLDER KOB Thermister
27. YN20M00107S027 [1] CORE KOB Heater
28. YN20M00107S028 [1] HOLDER KOB Pipe
29. YN20M00107S029 [1] THERMOSTAT KOB (For F1,F2 ONLY) Superseded by part number: YN20M00107S085
31. YN20M00107S031 [9] SCREW KOB Tapping
32. YN20M00107S032 [1] SM (For F1, F2 ONLY) Superseded by part number: YN20M00107S086
33. YN20M00107S033 [1] SM (For F1, F2 ONLY) Superseded by part number: YN20M00107S087
36. YN20M00107S036 [1] GUARD SM Damper
37. YN20M00107S037 [1] GUARD SM Damper
38. YN20M00107S038 [1] GUARD SM Damper
39. YN20M00107S039 [1] GASKET SM Packing
40. YN20M00107S040 [1] GASKET SM Packing
41. YN20M00107S041 [1] LEVER SM
42. YN20M00107S042 [1] LEVER SM
43. YN20M00107S043 [1] LEVER SM
44. YN20M00107S044 [1] LEVER SM (For F1, F2 ONLY) Superseded by part number: YN20M00107S088
45. YN20M00107S045 [1] LEVER SM
46. YN20M00107S046 [1] LEVER SM (For F1, F2 ONLY) Superseded by part number: YN20M00107S089
parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. The excavator spare parts are built to fit to the machine original system.
2. The excavator spare parts are supplied strictly according to the genuine parts catalog.
3. All the excavator spare parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
