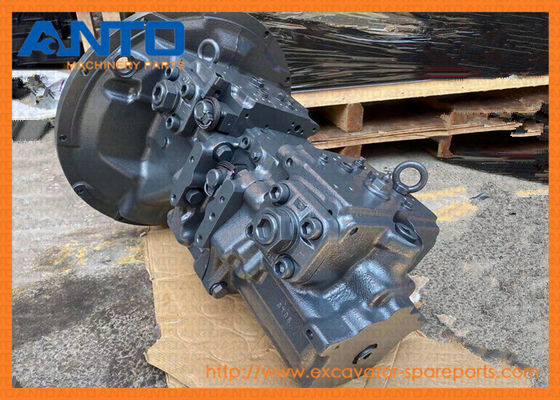

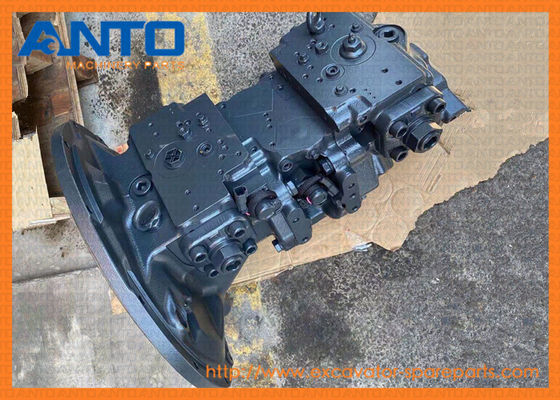

708-2G-00022 708-2G-00023 Hydraulic Main Pump 708-2G-00024 PC300-7 PC340-7 PC350-7

• 708-2G-00022 708-2G-00023 708-2G-00024 PC300-7 PC340-7 PC350-7 Hydraulic Main Pump

• Specification

• Application

EXCAVATORS PC300 PC340 PC350 PC360 Komatsu

• More pumps for KOMATSU machines

207-04-61120 PUMP
PC120, PC300, PC300SC, PC350, PC400, PC450

20Y-06-22570 PUMP ASS'Y
PC200, PC210, PC220, PC230, PC300, PC350, PC400

708-2H-00181 PUMP ASS'Y
PC300, PC300SC

708-2H-00280 PUMP ASS'Y,(PC300-6Z)
PC300, PC350

708-2H-00380 PUMP ASS'Y,(MIZUGURI SPEC.)
PC300

208-98-31211 PUMP ASS'Y
D575A, PC200, PC210, PC220, PC360
708-2H-01181 PUMP SUB ASS'Y
PC300, PC300SC, PC340, PC350

708-2H-01280 PUMP SUB ASS'Y
PC300, PC350

708-2H-00110 PUMP ASS'Y
BR300S, PC300, PC300SC

708-2L-00063 PUMP ASS'Y
PC220, PC230

708-2L-00066 PUMP ASS'Y
PC220, PC230

708-2L-00920 PUMP ASS'Y
PC600
705-41-07160 PUMP ASS'Y,(SEE FIG.Y1600-01A0)
PC09

708-2K-00131 PUMP ASS'Y
PC800

705-37-34030 PUMP ASS'Y,(SAL50)
D85EX, D85MS, D85PX, DRAWBAR,

708-1L-00463 PUMP ASS'Y
PW130, PW130ES

708-1L-00431 PUMP ASS'Y,(SEE FIG.Y1600-41A0)
PC100, PC100L, PC120, PC130

708-1L-00430 PUMP ASS'Y,(SEE FIG.Y1600-41A0)
PC100, PC120, PC130
708-1W-01130 PUMP SUB ASS'Y
BR100JG, PC60, PC70

281-13-21110 PUMP ASS'Y
WS16

6746-51-9100 PUMP ASSEMBLY, HYDRAULIC
PC360, PC390, PC390LL

• Parts list diagram

Pos.Part NoQtyParts nameComments
708-2G-00023 [1] PUMP ASS'Y Komatsu 209.501 kg.
["SN: 40034-UP"] ancatalogs:["7082G00022", "7082G00021", "7082G01022", "7082G00024"] |1.
708-2G-00022 [1] PUMP ASS'Y Komatsu 209.501 kg.
["SN: 40001-40033"] ancatalogs:["7082G00023", "7082G00021", "7082G01022", "7082G00024"] |1.
708-2G-01021 [1] PUMP SUB ASS'Y Komatsu China
["SN: 40001-UP"] |1.
1. 708-2G-12111 [1] SHAFT Komatsu 4.812 kg.
["SN: 40001-UP"]
2. 708-2G-12251 [1] BEARING Komatsu China 0.875 kg.
["SN: 40001-UP"] ancatalogs:["7082G12252"]
3. 708-2G-05010 [1] WASHER KIT Komatsu 0.75 kg.
["SN: 40001-UP"]
4. 708-1F-12270 [1] RING,SNAP Komatsu 0.014 kg.
["SN: 40001-UP"]
5. 708-2G-12220 [1] SEAL,OIL Komatsu OEM 0.096 kg.
["SN: 40001-UP"]
6. 708-8H-32160 [1] SPACER Komatsu 0.05 kg.
["SN: 40001-UP"]
7. 04065-07825 [1] RING,SNAP Komatsu 0.022 kg.
["SN: 40001-UP"]
708-2G-04141 [1] CYLINDER BLOCK ASS'Y Komatsu OEM 7 kg.
["SN: 40001-UP"] ancatalogs:["7082G04143"] |8.
10. 708-18-13230 [1] PIN Komatsu 0.01 kg.
["SN: 40001-UP"]
11. 04065-05520 [1] RING Komatsu 0.01 kg.
["SN: 40001-UP"]
12. 708-2G-13131 [1] SEAT Komatsu 0.1 kg.
["SN: 40001-UP"]
13. 708-2G-13152 [1] SPRING Komatsu 0.2 kg.
["SN: 40001-UP"]
14. 708-2G-13141 [1] SEAT Komatsu 0.02 kg.
["SN: 40001-UP"]
15. 708-2G-13510 [1] GUIDE,RETAINER Komatsu OEM 0.21 kg.
["SN: 40001-UP"]
16. 708-2H-23360 [3] PIN Komatsu 0.006 kg.
["SN: 40001-UP"]
17. 708-2G-13341 [1] RETAINER,SHOE Komatsu OEM 0.39 kg.
["SN: 40001-UP"]
18. 708-2G-13311 [9] PISTON SUB ASS'Y Komatsu OEM 0.29 kg.
["SN: 40001-UP"]
708-2G-04161 [1] CRADLE SUB ASS'Y Komatsu OEM 5.45 kg.
["SN: 40001-UP"] ancatalogs:["7082G04162"] |19.
21. 04020-01434 [1] PIN,DOWEL Komatsu 0.044 kg.
["SN: 40001-UP"]
22. 07000-B1009 [1] O-RING Komatsu China 0.001 kg.
["SN: 400
