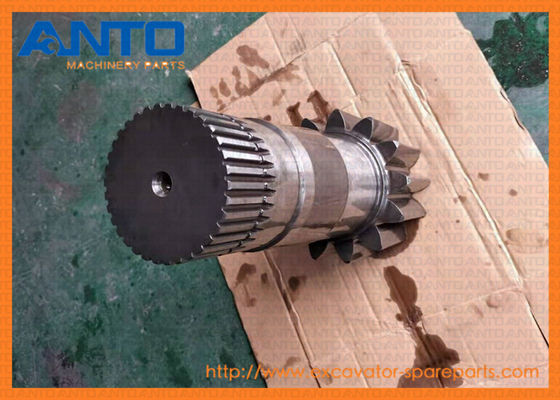

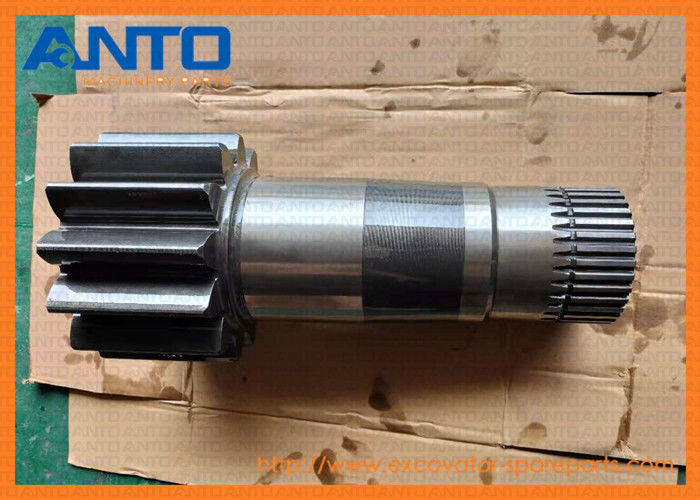

YN32W01051P1 Holland E215 Pinion Shaft For SK210-8 Excavator Swing Gearbox

• YN32W01051P1 Holland E215 Pinion Shaft For SK210-8 Excavator Swing Gearbox

• Specifications

• Application

HEAVY EQUIPMENT E215B New.Holland

HEAVY EQUIPMENT 200-8 SK210-8 SK210D-8 SK210DLC-8 SK210LC-8 SK215SRLC Kobelco

• More shaft for Holland models

YN52D01001P1 SHAFT
E115SR, E215, E215B, E135SR, E235SRLC, E135SRLC, E235BSR, E235BSRLC, E160, E175B, EH160, E235BSRNLC, E200SR, EH215, E235SR, E200SRLC

4895204 SHAFT
LB75.B, B90B, LB90.B, E175B, DC75, E215B, TS6.110, TN85DA, TN95DA, TS6.120, W130TC, T4.95F, TV6070, TS6.125, C185, LS185.B, B110, TS6.140, C190, TS6000, TS6020, LT185.B, TS6030, LT190.B, L180, LM5060,...

LQ15V00007S042 SHAFT
E235BSR, E235SRLC, E235SR, E215B

YX20M01029S006 SHAFT
E115SR, E215, E215B, E135SR, E235SRLC, E135SRLC, E130, EH130, E160, E175B, EH160, E200SR, EH215, E235SR, E200SRLC
YN25V01005P1 SHAFT
E215B

YN32W01067P1 SHAFT
E175B, E215B

YN32W01066P1 SHAFT
E175B, E215B

YN03M01987P1 SHAFT
E215B, E80BMSR, E235BSR, E135B, E235BSRLC, E235BSRNLC, E70BSR, E175B
YN10V00013S113 SHAFT
E235BSR, E215B, EH215, E215

YN15V00037S102 SHAFT
E215B

YN15V00025S101 SHAFT
E215, E215B, E160, E175B, EH160, EH215

YN10V00043S111 SHAFT
E235BSR, E215B

75270170 SHAFT
G170 VP, F170, G140, F140, G140 VP, F140 VP, F200

G106396 SHAFT
U80, LV80

D6NN17B545A SHAFT
655A, 550, A62, A625, 555B, A64, A66, 555, 555A, 655

E0NNB526AA SHAFT
655A, 555A, 555C, 655C, 555B, 555D, 575D, 555, 655D, 675D, 655
97496177 SHAFT
F130 DT, SB62, F100, F140, SB64, F115, F140 DT, F115 DT, FW110, LW130TC, F130, FW130, LW130, 8065.SE00.00A003, LW110, F100 DT, SB60

E6NN579AB SHAFT
545C, 3230, 3930, 545D, 260C, 250C, 3930H, 345C, 3930N, 3930NO, 345D, 3430, 4830, 4130, 445C, 4830N, 4130N, 4830O, 4130NO, 5030, 4630, 5030O, 4630N, 445D, 4630NO, 4630O

85827763 SHAFT
B115 TIER 3, B115B, LB115, LB115.B, B115, LB115.B 4WS

387535A1 SHAFT
W300C, W270C
C0NN7111B SHAFT
3100, 901, 3110, 941, 3120, 950, 3150, 951, 3190, 960, 3300, 961, 2000 - SERIES, 971, 3330, 981, 3500, NAA, 3550, NAB, 4000 - SERIES, 1871, 4100, 4500, 541, 4110, 4140, 4190, 4200, 4330, 4340, 4410, 5...

75288949 SHAFT
RG140, G170 VP, F170, G140, F140, RG200AWD, RG170.B VHP-QSB, G140 VP, RG140.B, RG170AWD, F200, RG200, G170, F140 VP, RG200.B, RG170.B, RG170

85814856 SHAFT
LM860

8603437 SHAFT

• catalog parts list diagram

Pos.Part NoQtyParts nameComments
. . YN32W00019F1 [1] GEAR REDUCTION UNIT SM Assembly, Swing Superseded by part number: YN32W00022F2
1. YN32W01051P1 [1] SHAFT SM
2. YN32W01052P1 [1] GEAR SM Sun
3. YN32W01053P1 [3] GEAR SM Pinion
4. YN32W01054P1 [1] GEAR SM Sun
5. YN32W01055P1 [4] GEAR SM Pinion
6. YN32W01056P1 [1] RING GEAR SM
7. YN32W01057F1 [1] CARRIER SM Spider Assembly
7-1. YN32W01009P1 [1] Spider
7-2. YN32W01066P1 [3] SHAFT KOB
8. YN32W01058P1 [1] CARRIER,Housing, Spider SM Spider
9. YN32W01067P1 [4] SHAFT SM
10. YN32W01030P1 [1] SPHERICAL BEARING KOB Superseded by part number: 25Z804D18
11. YN32W01029P1 [1] SPHERICAL BEARING KOB Superseded by part number: R25P0047D9
12. YN32W01060P1 [1] OIL SEAL SM Oil Seal
13. YN32W01104P1 [1] BOX SM Housing Superseded by part number: YN32W00022F2
15. YN32W01071P1 [6] WASHER SM Washer,Thrust
16. YN32W01073P1 [3] NEEDLE BEARING SM Needle Superseded by part number: YN32W00022F3
17. YN32W01072P1 [4] NEEDLE BEARING SM Needle
18. YN32W01063P1 [8] WASHER SM Washer,Thrust
19. ZR16X03500 [1] RING KOB Reatining -- ID 32.20 x OD 35 x Th 1.6mm
20. ZR16X09000 [1] RING KOB Retaining -- ID 84.50 x OD 108 x Th 3.0mm
21. YN32W01082P1 [1] SLEEVE SM
22. ZP26D08025 [4] PIN KOB Roll -- OD 08 x 25mm Long
23. HS23C14135G1 [11] SCREW,M14 x 135mm SM M14x2.0x135mm
24. PV02B01073DB [2] CAP KOB 18.4mm Plastic
25. YN32W01080D1 [1] RIGID TUBE SM 1/2" PT x 112mm Long
26. ZG31U08000 [1] HYD CONNECTOR SM 1/2" PT
27. ZE82T08000 [1] PLUG KOB 1/2" PT
28. ZR16X04000 [3] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
30. YN32W01081P1 [1] OIL SEAL SM Oil Seal
31. ZG91V02000 [1] LUBE NIPPLE KOB 67°x1/8" PT
32. 2444Z3305 [1] BREATHER KOB
