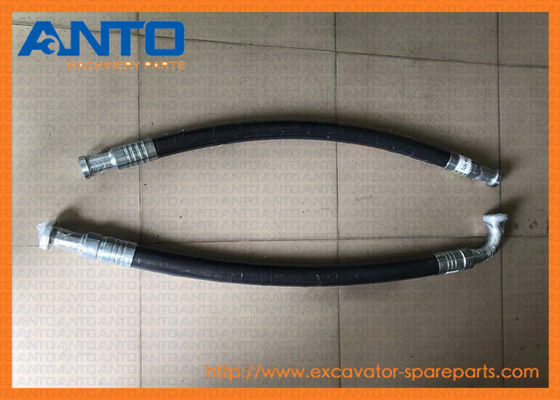

Boom Line Hose For 330D Excavator Spare Parts 239-1872 223-6915 2391872 2236915

• 239-1872 223-6915 2391872 2236915 Boom Line Hose For 330D Excavator Parts

• Specification

• Applicable models

EXCAVATOR 325C 330C 330C FM 330C L 330D 330D FM 330D L 330D LN 336D 336D L 336D LN
MOBILE HYD POWER UNIT 330D 330D L 336D L

• More hose for machines

2302931 HOSE-RADIATOR
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

2302933 HOSE
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

2302940 HOSE
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

2302941 HOSE
330D, 330D FM, 330D L, 330D LN, 330D MH, M330D
2813515 HOSE
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L

3244169 HOSE
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D

2391892 HOSE AS
330D, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F L

2026758 HOSE AS
325C, 330C, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L
1940105 HOSE AS
330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN

2125330 HOSE AS
330C, 365B, 365B II, 365B L, 365C L MH

1960498 HOSE AS
325C, 330C, 330C FM, 330C L

2666216 HOSE
330D L

3335093 HOSE AS
330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN

3335092 HOSE AS
330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN

3335091 HOSE AS
330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN

3335089 HOSE AS
330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN

3138170 HOSE AS
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN

3138157 HOSE AS
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN

2276585 HOSE AS
330D, 349D L

2276584 HOSE AS
330D, 349D L
2276583 HOSE AS
330D, 349D L

2276582 HOSE AS
323D L, 330D, OEMS

3668593 HOSE AS
330D, 330D L, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L

2751384 HOSE AS
330D, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L

• Diagram parts list

Pos.Part NoQtyParts nameComments
1. 124-1107 [3] GROMMET
2. 129-5874 [10] GROMMET
3. 138-5709 [3] GROMMET
4. 296-7348 C [1] TUBE AS
5. 317-4881 C [1] TUBE AS
6. 296-7350 C [1] TUBE AS
7. 296-7351 C [1] TUBE AS
8. 196-0482 [8] CLIP
9. 207-6395 J [1] TUBE GP-HYDRAULIC (BOOM)
9A. 196-0477 L [1] TUBE AS
9B. 196-0478 L [1] TUBE AS
9C. 1P-3704 L [1] SEAL-RECTANGULAR
9D. 8T-4183 LM [4] BOLT (M12X1.75X40-MM)
8T-4223 L [4] WASHER-HARD (13.5X25.5X3-MM THK)
10. 207-6398 J [1] TUBE GP-HYDRAULIC (BOOM)
10A. 196-0481 L [1] TUBE AS
10B. 196-0480 L [1] TUBE AS
10C. 1P-3704 L [1] SEAL-RECTANGULAR
10D. 8T-4183 LM [4] BOLT (M12X1.75X40-MM)
8T-4223 L [4] WASHER-HARD (13.5X25.5X3-MM THK)
11. 223-6915 I [1] HOSE AS
12. 239-1872 I [1] HOSE AS
13. 124-1106 [2] CLIP
14. 124-1108 [8] CLIP
15. 124-1109 [2] CLIP
16. 1P-3704 [4] SEAL-RECTANGULAR
17. 1P-3705 [2] SEAL-RECTANGULAR
18. 1P-5767 [4] FLANGE-HALF
19. 5P-8077 [4] FLANGE-HALF
20. 8T-4139 M [4] BOLT (M12X1.75X30-MM)
21. 8T-4140 M [18] BOLT (M16X2X60-MM)
22. 8T-4183 M [8] BOLT (M12X1.75X40-MM)
23. 8T-4194 M [8] BOLT (M12X1.75X50-MM)
24. 8T-4223 [26] WASHER-HARD (13.5X25.5X3-MM THK)
25. 8T-4956 M [6] BOLT (M12X1.75X35-MM)
26. 9X-8257 [18] WASHER (17.5X30X3.5-MM THK)
27. 9F-2167 C [4] SCREW-PURGE (3/8-24X1.164-IN)
C CHANGE FROM PREVIOUS TYPE
I REFER TO HYDRAULIC INFORMATION SYSTEM
J TUBE MAY BE 1-PIECE OR 2-PIECE DESIGN (2-PIECE SHOWN)
L PARTS REQUIRED ONLY WITH 2-PIECE TUBE DESIGN
M METRIC PART
