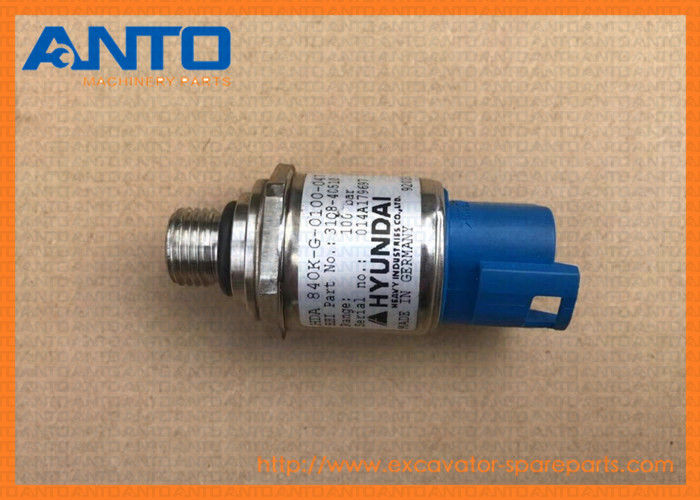

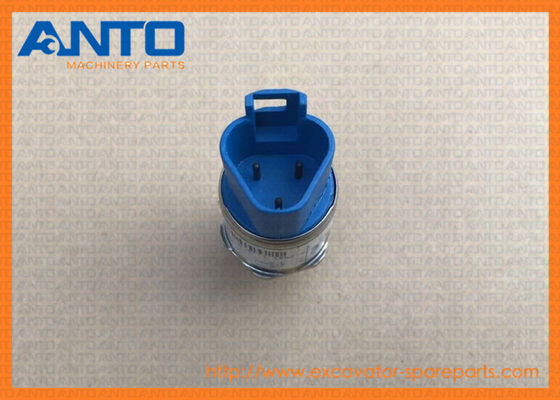

31Q8-40510 31Q840510 Pressure Sensor For Hyundai Excavator Spare Parts

• Application

9-SERIES CRAWLER EXCAVATOR R1200-9 R140LC9 R145CR9 R160LC9 R180LC9 R210LC9 R210NLC9 R235LCR9 R250LC9 R290LC9 R320LC9 R360LC9 R430LC9 R480LC9 R520LC9
9-SERIES WHEEL EXCAVATOR R140W9 R170W9 R210W-9 R55W-9 Hyundai



• More sensors For Hyundai Machines

4921517 SENSOR-PRESSURE
180DE, 250D-9, 250DE, HL770-9, HL770-9A, HL770-9S, HL780-9A, HX260L, HX330L, HX380L, HX430L, R330LC9A, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R430LC9, R430LC9A, R480LC9A, R520LC9A
4921684 SENSOR-POSITION
180DE, 250DE, HL730-9, HL730-9S, HL730TM-9, HL760-9A, HL760-9AW, HL770-7A, R250LC9A, R300LC9A, R320LC7A, R360LC7A, R360LC9, R380LC9DM, R380LC9MH, R430LC9
4921686 SENSOR-POSITION
180DE, 250DE, HL770-7A, R320LC7A, R320LC9, R360LC7A, R360LC9, R380LC9DM, R380LC9MH, R430LC9
4954905 SENSOR-TEMPERATURE
110D-7A, 110D-9, 180DE, 250D-9, 250DE, 35D-9, 50D-9, 80D-9, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL740-9, HL740-9A, HL740-F, HL740TM-9, HL740TM-9A, HL740TM-F, HL757-9, HL757-...
11N6-90890 SENSOR-TEMP
HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL740-9, HL740-9A, HL740-9B, HL740-9S, HL740-9SB, HL740TM-9, HL740TM-9A, HL757-9, HL757-9A, HL757-9S, HL757-9SB, HL757-9SM, HL757TM-9, HL...
3096153 SENSOR-TEMP
HL780-7A, HL7803A, R1200-9, R360LC7, R450LC7A, R500LC7A
4921493 SENSOR-PRESSURE
HL780-9, HL780-9S, R450LC7, R480C9MH, R480LC9, R480LC9S, R500LC7, R520LC9, R520LC9S, RD510LC-7
XKAN-00040 SENSOR
HX235L, R125LCR-9A, R145CR9, R145CR9A, R235LCR9, R235LCR9A, R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S, R60CR-9, R60CR-9A
2872277 SENSOR-POSITION
110D-7A, 110D-9, 250D-9, HL730-9A, HL730-9SB, HL730TM-9A, HL740-9A, HL740-F, HL740TM-9A, HL740TM-F, HL757-9A, HL757-F, HL757TM-9A, HL757TM-F, HL760-F, HL770-9, HL770-9A, HL770-9S, HW140, HW210, HX220L...
3949988 SENSOR-PRESSURE
R320LC9
31Q4-40810 SENSOR-PRESSURE
10BR-9, 10BTR-9, 14BRJ-9, 15BR-9E, 15BRP-9, 15BT-9, 16B-9, 20BC-9, 20BRJ-9, 22B-9, 22BH-9, 22BHA-7, 25BR-9, 40B-9, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL740-9, HL740-9A, HL7...
31Q4-40820 SENSOR-PRESSURE
HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145C

11EN-42400 SENSOR-RESERVOIR
33HDLL, R130W3, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC3, R160LC7, R170W7, R180LC7, R200W3, R210LC7, R210LC7A, R250LC3, R290LC3, R290LC7, R290LC7A, R300LC7, R95W3
XJAF-02459 SENSOR-CRANK ANGLE
R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9
XJAF-02458 SENSOR-OIL PRESSURE
R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9
XJAF-02457 SENSOR-BOOST PRESSURE
R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9
XJAF-02455 SENSOR-RAIL PRESSURE
R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9
XJAF-02453 SENSOR-TEMP
R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9
AH100312 SENSOR-AMBIENT
R110-7, R110-7A, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290...
15668-83040 SENSOR-WATER TEMP
HSL800-7, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH
XJBR-01605 SENSOR-THERMO
HSL650-7A, HSL850-7A
21FK-20070 SENSOR-TIMING
HLF15-5, HLF15C-5, HLF20-5, HLF20C-5
21FK-20040 SENSOR-WATER TEMP
HLF15-5, HLF15C-5, HLF20-5, HLF20C-5
21FK-20050 SENSOR-OXYGEN
HLF15-5, HLF15C-5, HLF20-5, HLF20C-5
XKAN-00040 SENSOR
HX235L, R125LCR-9A, R145CR9, R145CR9A, R235LCR9, R235LCR9A, R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S, R60CR-9, R60CR-9A
39350-84000 SENSOR-F/TEMP,PRESSURE
RC215C7H
94340-72412 SENSOR-SPEED
R210LC3H, R300LC7, RC215C7H
2872277 SENSOR-POSITION
110D-7A, 110D-9, 250D-9, HL730-9A, HL730-9SB, HL730TM-9A, HL740-9A, HL740-F, HL740TM-9A, HL740TM-F, HL757-9A, HL757-F, HL757TM-9A, HL757TM-F, HL760-F, HL770-9, HL770-9A, HL770-9S, HW140, HW210, HX220L...
3408430 SENSOR-POSITION
R290LC7
3408431 SENSOR-POSITION
R290LC7
4002066 SENSOR-POSITION
R290LC7
4002067 SENSOR-POSITION
R290LC7


3408531 SENSOR-POSITION
R320LC7A
3408532 SENSOR-POSITION
R320LC7A
3949988 SENSOR-PRESSURE
R320LC9




• Parts List Diagram

Pos.Part NoQtyParts nameComments
2-1. 31Q8-40500 [1] SENSOR-PRESSURE P1 PRESSURE
2-1. 31Q4-40800 [1] SENSOR-PRESSURE P1 PRESSURE
2-2. 31Q8-40500 [1] SENSOR-PRESSURE P2 PRESSURE
2-2. 31Q4-40800 [1] SENSOR-PRESSURE P2 PRESSURE
3. 31Q8-40510 [2] SENSOR-PRESSURE NEGA PRESSURE
3. 31Q4-40820 [2] SENSOR-PRESSURE NEGA PRESSURE
4-1. 31Q8-40520 [1] SENSOR-PRESSURE EPPR PRESSURE
4-1. 31Q4-40830 [1] SENSOR-PRESSURE EPPR PRESSURE
4-2. 31Q8-40520 [1] SENSOR-PRESSURE TRAVEL PRESSURE
4-2. 31Q4-40830 [1] SENSOR-PRESSURE TRAVEL PRESSURE
16. 31N6-25060 [2] FILTER-LAST GUARD
17. 31E5-11110 [1] ADAPTER
18. 31E9-22120 [2] CONNECTOR
24. X400-042007 [1] HOSE ASSY-SYNF,ORFS
24. P910-042007 [1] HOSE ASSY-ORFS 0X0
25. X400-042008 [1] HOSE ASSY-SYNF,ORFS
25. P910-042008 [1] HOSE ASSY-ORFS 0X0
35. P920-122010 [1] HOSE ASSY-ORFS 0X45
35. P920-122009 [1] HOSE ASSY-ORFS 0X45
36. X420-042007 [1] HOSE ASSY-ORFS 0X90
36. P930-042007 [1] HOSE ASSY-ORFS 0X90
43. P930-043046 [1] HOSE ASSY-ORFS 0X90
44. P930-043054 [1] HOSE ASSY-ORFS 0X90
46. P930-082012 [1] HOSE ASSY-ORFS 0X90
48. P930-122013 [1] HOSE ASSY-ORFS 0X90
53. X500-110001 [3] CONNECTOR-ORFS
54. X500-110003 [1] CONNECTOR-ORFS
55. X500-110004 [1] CONNECTOR-ORFS
58. X520-110001 [1] ELBOW-90,ORFS
60. X520-110003 [1] ELBOW-90,ORFS
61. X520-110004 [1] ELBOW-90,ORFS
62. X520-110012 [1] ELBOW-90,ORFS
72. S621-011001 [2] O-RING
74. 31Q8-21100 [2] TEE-R/TYPE,ORFS
75. X850-515100 [1] ELBOW-90 SWIVEL,ORFS
76. 31EK-11130 [2] COUPLING-SCREW
77. 31Q4-20170 [1] TEE-TEST PORT
A. S621-011001 [8] O-RING
C. S621-014001 [2] O-RING
D. S621-018001 [3] O-RING
G. S631-011004 [10] O-RING
H. S631-014004 [1] O-RING
I. S631-018004 [2] O-RING
J. S631-024004 [2] O-RING

• Description


parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.


• Advantage

• Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


• Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
