Product Details:
Payment & Shipping Terms:
|
| Model Number: | PC100 PC120 PC128 PC130 PC138 PC150 | Product Name: | Swivel Joint Assy |
|---|---|---|---|
| Part Number: | 703-08-33232 703-08-00110 | Packing: | Standard Export Carton |
| Transportation: | By Sea/air By Express | Warranty: | 6/12 Months |
| Highlight: | final drive,excavator gearbox |
||

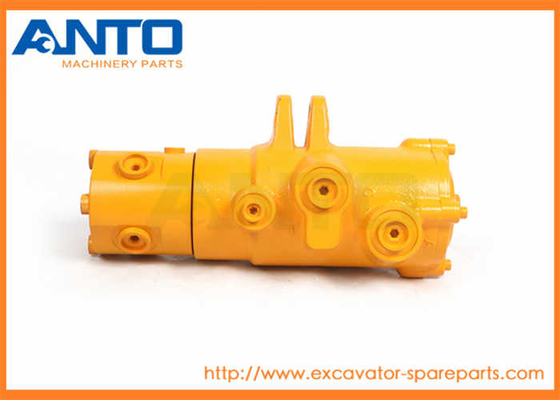

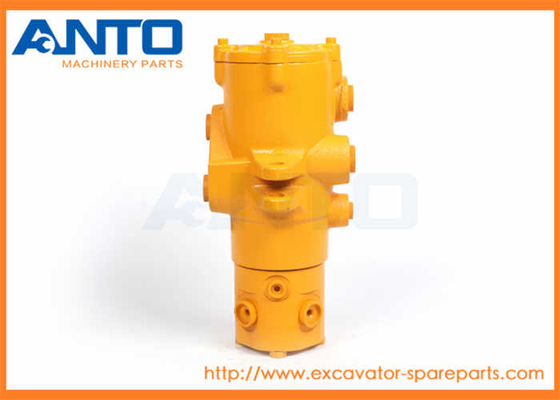

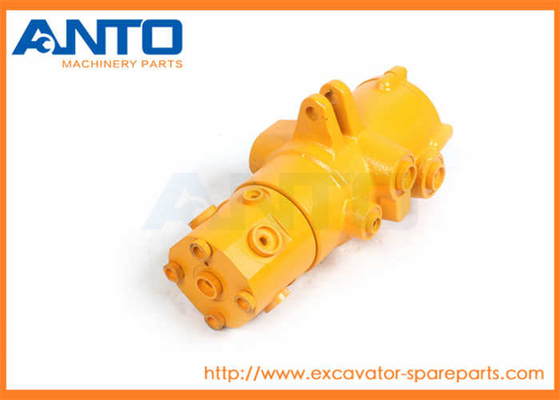

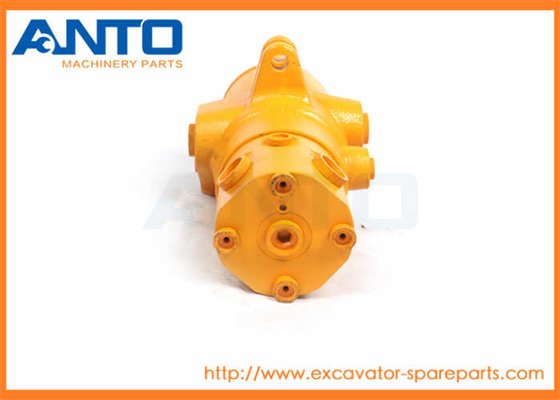

703-08-33232 703-08-00110 PC120-6 Swivel Joint PC100-6 PC128US Center Joint
| Application | Excavator Turning Joint |
| Name | Swivel joint assy |
| Parts No | 703-08-33232 703-08-00110 |
| Model | PC100 PC120 PC128 PC130 PC138 PC150 |
| Lead time | 2-7 days |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
EXCAVATORS PC100 PC100L PC120 PC120SC PC128US PC128UU PC130 PC138 PC138US PC150LGP Komatsu
More swivel group for KOAMTSU machine
| 703-09-31622 SWIVEL JOINT ASS'Y |
| BP500, PC120, PC200, PC220, PC240, PF3, PF3W, PF5, PW130, PW130ES, PW140, PW148, PW150ES, PW160 |
| 703-09-33110 SWIVEL JOINT ASS'Y |
| PC100, PC120, PC128US, PC128UU, PC130, PC138, PC138US, WINDOW |
| 703-09-00110 SWIVEL JOINT ASS'Y |
| PC100, PC120, PC130 |
| 703-08-00110 SWIVEL JOINT ASS'Y |
| PC100, PC100L, PC120, PC120SC, PC130 |
| 703-08-33230 SWIVEL JOINT ASS'Y |
| PC100, PC100L, PC120, PC130 |
| 20Y-957-5480 SWIVEL JOINT |
| PC120SC, PC200SC, PC300SC |
| 703-09-33400 SWIVEL JOINT ASS'Y |
| PC200, PC228, PC228US |
| 20M-60-14001 SWIVEL JOINT ASS'Y |
| PC05 |
| 20M-60-14000 SWIVEL JOINT ASS'Y |
| PC05 |
| 703-09-31622 SWIVEL JOINT ASS'Y |
| BP500, PC120, PC200, PC220, PC240, PF3, PF3W, PF5, PW130, PW130ES, PW140, PW148, PW150ES, PW160 |
| 703-06-22111 SWIVEL JOINT ASS'Y |
| PC30R, PC35R, PC40R, PC45R, PC50UD, PC50UG, PC50UU, PC50UUM, PC58SF |
| 703-15-73201 SWIVEL JOINT ASS'Y |
| PC1000, PC1000SE, PC1000SP, PC1600, PC1600SP, PC1800, PC2000 |
| 22W-60-12500 SWIVEL JOINT ASS'Y |
| LW160, LW200L, LW250L |
| 703-08-13111 SWIVEL JOINT ASS'Y,(SEE FIG.6151) |
| PW20, PW30, PW30T |
| 232-60-54702 SWIVEL JOINT ASS'Y |
| GD305A, GD355A, GD405A, GD505A, GD510R, GD511A, GD521A, GD600R, GD605A, GD611A, GD621A, GD621R, GD623A, GD661A, GD663A |
| 703-15-00121 SWIVEL JOINT ASS'Y,(FINAL COATING) |
| PC2000, TRAVEL |
| 703-09-33110 SWIVEL JOINT ASS'Y |
| PC100, PC120, PC128US, PC128UU, PC130, PC138, PC138US, WINDOW |
| 703-05-12110 SWIVEL JOINT ASS'Y |
| PC10, PC20, PC30 |
| Pos. | Part No | Qty | Parts name | Comments |
| 703-08-00110 | [1] | SWIVEL JOINT ASS'Y Komatsu | 32.501 kg. | |
| ["SN: 60664-UP"] analogs:["7030833232"] |$0. | ||||
| 703-08-33232 | [1] | SWIVEL JOINT ASS'Y Komatsu | 32.501 kg. | |
| ["SN: 47571-60663"] analogs:["7030800110"] |$1. | ||||
| 703-08-33230 | [1] | SWIVEL JOINT ASS'Y Komatsu China | ||
| ["SN: 45001-47570"] |$2. | ||||
| 1 | 703-08-91130 | [1] | ROTOR Komatsu China | |
| ["SN: 45001-UP"] | ||||
| 2 | 703-08-95620 | [6] | SEAL Komatsu China | 0.01 kg. |
| ["SN: 45001-UP"] analogs:["7030895611"] | ||||
| 3 | 07000-15080 | [2] | O-RING Komatsu China | 0.009 kg. |
| ["SN: 45001-UP"] analogs:["0700005080"] | ||||
| 4 | 703-08-92130 | [1] | SHAFT Komatsu China | |
| ["SN: 45001-UP"] | ||||
| 5 | 703-09-98710 | [1] | PLUG Komatsu China | |
| ["SN: 45001-UP"] | ||||
| 6 | 703-09-98510 | [4] | PLUG Komatsu China | |
| ["SN: 45001-UP"] | ||||
| 7 | 703-08-94510 | [1] | RING Komatsu | 0.09 kg. |
| ["SN: 45001-UP"] | ||||
| 8 | 04064-07525 | [1] | RING,SNAP Komatsu | 0.026 kg. |
| ["SN: 45001-UP"] | ||||
| 9 | 703-08-93511 | [1] | COVER Komatsu China | |
| ["SN: 47571-UP"] | ||||
| 9 | 703-08-93510 | [1] | COVER Komatsu China | |
| ["SN: 45001-47570"] | ||||
| 10 | 07000-02105 | [1] | O-RING Komatsu OEM | 0.004 kg. |
| ["SN: 45001-UP"] analogs:["0700012105"] | ||||
| 11 | 01010-50835 | [4] | BOLT Komatsu | 0.019 kg. |
| ["SN: 45001-UP"] analogs:["0101080835"] | ||||
| 12 | 01643-30823 | [4] | WASHER Komatsu | 0.004 kg. |
| ["SN: 45001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1) International Express: Such as DHL,TNT, FEDEX and so on.
2) Air transportation: For goods above 45KG, it is economic choice for customers.
3) By sea: Heavy cargo by container transport.
Unless specified, a manufacturer’s warranty is 90 DAYS will apply on all products. Should the goods prove to be defective within this period, Anto will, at its discretion and provided that the damage is not due to use or misuse of the goods or from fair wear and tear, replace or repair defective goods free of charge. The goods must be returned to us at the address above and proof of purchase must also be provided.
The images used in this web site are for illustrative purposes only and may not always be identical to the actual product. We reserve the right to make product enhancements or improvements at any time in order to offer superior products.
