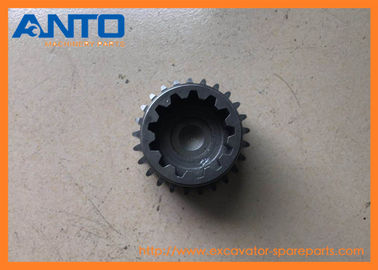

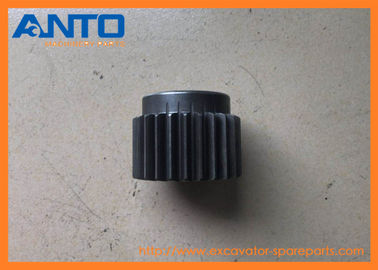

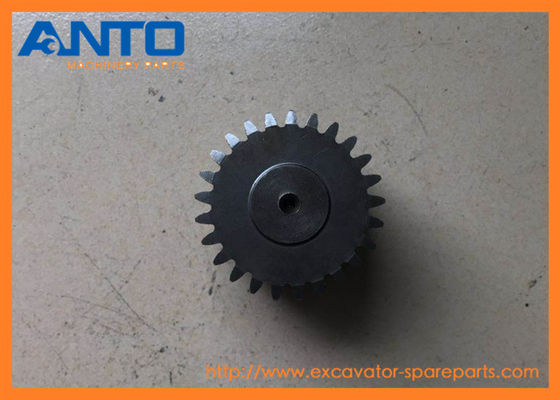

05/903867 05903867 Excavator Sun Gear For JCB JS200 JS220 Swing Reduction Gearbox

​

• Parts Diagram

Number 7 on drawing

A. JRC0007 [1]
Gearbox swing
1. 05/903860 [1]
Gear reduction assembly
2. 05/902010 [2]
O Ring
3. 05/903862 [1]
Ring Toothed
4. 05/903863 [1]
Gear Sun
5. 05/903864 [1]
Cover
5A. 05/903865 [1]
Ring Toothed
6. 05/903866 [1]
Gear Reduction Assembly
7. 05/903867 [1]
Gear Sun
8. 05/903868 [16]
Screw M16 x 120mm
10. 05/903873 [1]
Gear output assembly
10-1. 05/903869 [1]
Shaft pinion 14 teeth
10-2. 05/903870 [1]
Spacer
10-3. 05/903871 [1]
Ring
10-4. 05/903872 [1]
Bearing
10-6. 05/903874 [1]
Nut
10-7. 05/903875 [1]
Bearing
10-8. 05/903876 [1]
Seal ring 100 x 130 x 12mm
10-8. 333/C7880 [1]
Seal 100x140x13 LARGER SIZE
10-9. 05/903877 [1]
Housing
11.
'See Remark' Gauge,oil level see page E2-7-3,Swing motor

• Description

• Advantage

• Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


• Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
