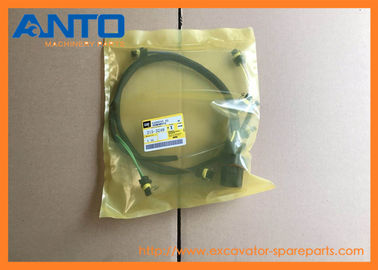

215-3249 2153249 C9 C-9 Engine Fuel Injector Harness For 330D Excavator Electric Parts

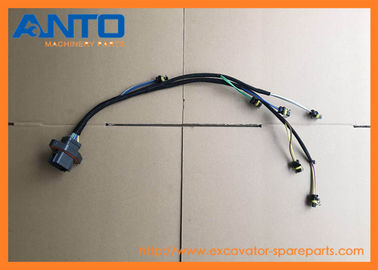

215-3249 2153249 C9 C-9 Engine Fuel Injector Harness For 330D Excavator Electric Parts
215-3249 2153249 C9 C-9 Engine Fuel Injector Harness For 330D Excavator Electric Parts

Large Image :  215-3249 2153249 C9 C-9 Engine Fuel Injector Harness For 330D Excavator Electric Parts

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 215-3249 2153249
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Engine Spare Parts Model: C9 C-9
Part NO.: 215-3249 2153249 Parts Name: Electric Wiring Harness
Package: Standard Box Package Warranty: 6 Months
Highlight:

330D Excavator Electric Parts

,

215-3249 Excavator Electric Parts

,

C9 Engine Fuel Injector Harness



  • 215-3249 2153249 C9 C-9 Engine Fule Injector Harness Applied To 330D 336D Excavator Parts






  • Specification
Excavator spare parts name engine injector harness
Equipment Model C9 C-9 330D 336D
Parts Category excavator engine parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days





  • Application

CHALLENGER MTC735
EXCAVATOR 330C 330C FM 330C L 330C MH 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 340D L
GENERATOR SET C9
INDUSTRIAL ENGINE C-9 C9
LANDFILL COMPACTOR 816F II
MARINE ENGINE C9
MOBILE HYD POWER UNIT 330C 330D 330D L 336D L
MOTOR GRADER 12H 140M 140M 2 160M
PETROLEUM ENGINE C9
PETROLEUM PACKAGE CX31-C9I
PETROLEUM TRANSMISSION TH31-E61
SOIL COMPACTOR 815F II
TRACK FELLER BUNCHER 2290 2390 2391 2491 2590 511 521 521B 522 522B 532 541 541 2 551 552 552 2 TK711 TK721 TK722 TK732 TK741 TK751 TK752
TRACK LOADER 973C 973D
TRACK-TYPE TRACTOR D6R D6R II D6R III D6R STD D6T D7R XR
TRUCK ENGINE C-9 C9
WHEEL DOZER 814F II
WHEEL SCRAPER 627G 637D 637G
WHEEL TRACTOR
WHEELED EXCAVATOR M330D



  •  parts diagram



Pos. Part No Qty Parts name Comments
1 3S-2093 C [16] STRAP-CABLE
2 212-7766 Y [1] SWITCH GP-MAGNETIC (12-VOLT)(AIR INLET HEATER)
3 215-3249 [1] HARNESS AS-ENGINE (UNIT INJECTOR)
4 221-2319 [1] HARNESS AS-ENGINE (ELECTRONIC CONTROL)
  102-8802 [2] KIT-RECEPTACLE (2-PIN)
      (EACH INCLUDES RECEPTACLE AS & WEDGE)
  102-8803 [3] KIT-RECEPTACLE (3-PIN)
      (EACH INCLUDES RECEPTACLE AS & WEDGE)
  100-3320 [1] PLUG AS-CONNECTOR (2-PIN)
  126-5011 [1] SEAL-CONNECTOR
  111-2416 [1] PLUG AS-CONNECTOR (2-PIN)
  126-5011 [1] SEAL-CONNECTOR
  155-2270 [4] KIT-CONNECTING PLUG (2-PIN)
      (EACH INCLUDES PLUG AS & WEDGE)
  160-7690 [1] PLUG AS-CONNECTOR (70-PIN)
  159-9322 [1] SEAL-O-RING
  155-2260 [5] KIT-CONNECTING PLUG (3-PIN)
      (EACH INCLUDES PLUG AS & WEDGE)
  214-7170 [1] KIT-REPAIR (ELECTRICAL CONNECTORS)(ENGINE HARNESS)
5 236-6234 C [1] CABLE AS (2 AWG)
  6V-9023 E   TUBE-HEAT SHRINK (12.7-MM DIA)(6CM)
  135-2543 [1] BOOT (RED)(RED)
6 3E-4353 [2] WASHER-HARD (11X25X3-MM THK)
7 4P-7429 [1] CLIP (LADDER)
8 4P-7581 C [2] CLIP (LADDER)
9 4P-8134 C [2] CLIP (LADDER)
10 6V-4369 [1] CLIP
11 6V-5215 M [1] BOLT (M8X1.25X16-MM)
12 6V-6317 M [2] BOLT (M10X1.5X20-MM)
13 7I-2272 M [2] BOLT (M5X0.8X12-MM)
14 8T-0328 [2] WASHER-HARD (5.5X10X1-MM THK)
15 8T-4205 [1] WASHER-HARD (7.2X14.5X2-MM THK)
16 8T-5451 M [1] BOLT (M6X1X12-MM)
17 9M-1974 [1] WASHER-HARD (8.8X16X2-MM THK)
  C   CHANGE FROM PREVIOUS TYPE
  E   ORDER BY THE CENTIMETER
  M   METRIC PART
  Y   SEPARATE ILLUSTRATION

215-3249 2153249 C9 C-9 Engine Fuel Injector Harness For 330D Excavator Electric Parts 0





  •  All spare parts are produced as per genuien standard system





  • Advantage



1. The parts are built to fit to the genuine system.

2. The parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty


1. Warranty Period: 6 Months' warranty from the date of arrival. Longer period of 12 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
