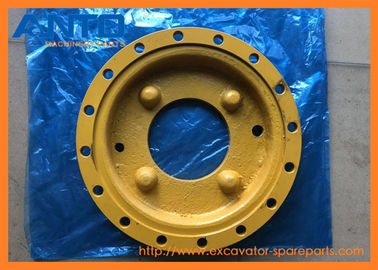

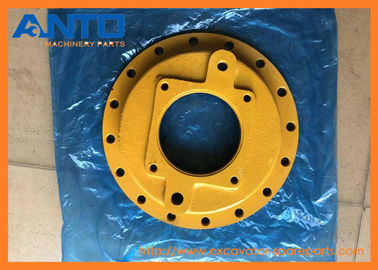

114-1401 1141401 Swing Drive Housing Cover For 325D 330D 345D Excavator

114-1401 1141401 Swing Drive Housing Cover For 325D 330D 345D Excavator
114-1401 1141401 Swing Drive Housing Cover For 325D 330D 345D Excavator

Large Image :  114-1401 1141401 Swing Drive Housing Cover For 325D 330D 345D Excavator

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 114-1401
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Excavator Swing Gear Parts Machine Model: 325D 330D 345D
Parts NO.: 114-1401 Material: Forged, Steel
Warranty: 3/6 Months Package: Standard Export Carton
Highlight:

swing gear box

,

swing reduction gear



  • 114-1401 1141401 Swing Drive Housing Cover Used For 325D 330D 345D Excavator





  • Spec Sheet



Excavator spare parts name Swing Gearbox housing cover
Equipment Model 330D 345D
Parts Category Excavator Swing gear
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days




  • Application



EXCAVATOR 322 FM L 322B L 322B LN 322C 322C FM 324D 324D FM 324D FM LL 324D L 324D LN 324E 324E L 324E LN 325B 325B L 325C 325C FM 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D 329D L 329D LN 329E 329E L 329E LN 330D FM 345B II 345B II MH 345B L 345C 345C L 345C MH 345D 345D L 345D L VG 349D 349D L 349E 349E L 349E L VG 349F L 568 FM LL M325D L MH M325D MH
LOGGER 322C
MOBILE HYD POWER UNIT 324D LN 325C 325D 325D L 329D L 329E 345C L 349D L 349E 349E L HVG
SHOVEL LOGGER 345C
TRACK FELLER BUNCHER 1090 1190 1190T 1290T 1390 2290 2390 2391 2491 2590 511 521 521B 522 522B 532 541 541 2 551 552 552 2 TK1051 TK711 TK721 TK722 TK732 TK741 TK751 TK752
WHEELED EXCAVATOR M325B M325C MH W345B II W345C MH





  • Parts Diagram

114-1401 1141401 Swing Drive Housing Cover For 325D 330D 345D Excavator 0

Pos. Part No Qty Parts name Comments
1 4I-7466 [4] GEAR-PLANETARY (23-TEETH)
2 227-6221 [1] BREATHER AS (SWING DRIVE)
2A. 4H-6112 [1] BREATHER (SWING DRIVE)
2B. 227-6215 [1] BOSS (1/4-18-THD)
2C. 267-6785 [1] PIPE
3 6V-7238 [1] VALVE-SHUTOFF (HYDRAULIC OIL)
4 7I-7728 [1] CARRIER-PLANETARY
5 7Y-0225 [3] SHAFT-PLANETARY
6 7Y-1434 [2] SPACER (40X69.5X6-MM THK)
7 093-1730 [2] RING-RETAINING
8 093-1731 [1] RING-RETAINING
9 094-0611 [6] WASHER (47.3X76X1-MM THK)
10 094-1528 [8] WASHER (53X84X1-MM THK)
11 136-2940 [1] BEARING
12 096-2653 [1] RING-RETAINING
13 136-2904 [1] BEARING
14 114-1383 [4] SHAFT-PLANETARY
15 114-1398 [1] GAUGE-OIL LEVEL (SWING DRIVE)
16 114-1399 [1] PIPE-GAUGE
17 114-1401 [1] COVER-HOUSING
18 191-2696 [1] CAGE
19 135-9044 [2] SEAL-LIP TYPE
20 169-5617 [1] GEAR-SUN (18-TEETH)
21 169-5618 [3] GEAR-PLANETARY (27-TEETH)
22 191-2579 [1] CARRIER-PLANETARY
23 171-9280 [1] GEAR-RING (72-TEETH)
24 191-2694 [1] SHAFT-PINION
25 191-2695 [1] HOUSING
26 171-9283 [1] GEAR-SUN (24-TEETH)
27 171-9375 [1] SEAL-O-RING
28 191-2697 [1] SPACER (110X140X90.1-MM THK)
29 509-6676 [7] PIN-SPRING
30 3K-0360 [1] SEAL-O-RING
31 8J-8879 [1] SEAL-O-RING
32 7Y-0252 [3] BEARING AS-ROLLER
33 191-2513 [8] BEARING AS-ROLLER
34 453-3447 M [8] BOLT (M12X1.75X40-MM)
35 451-2182 [8] WASHER-HARD (13.5X25.5X3-MM THK)
36 453-2843 M [16] BOLT (M16X2X180-MM)
37 451-2175 [16] WASHER-HARD (17.5X30X3.5-MM THK)

  1U-8846 BF   SEALANT-GASKET







  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .





  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
