Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Final Drive Parts | Machine Model: | 345D 349D |
|---|---|---|---|

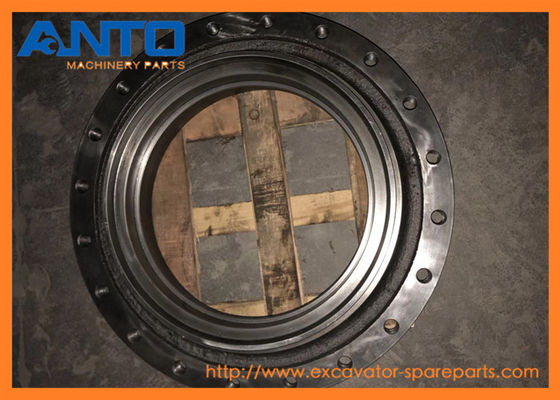

| Parts No.: | 200-3490 227-6045 | Parts Name: | Final Drive Hub Housing |
| Warranty: | 3/6 Months | Package: | Standard Export Carton |
| High Light: | final drive,excavator gearbox |
||
| Excavator spare parts name | final drive hub housing |
| Equipment Model | 345C 345D 349D |
| Parts Category | Excavator final drive parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
EXCAVATOR 330D L 330D MH 345C 345C L 345C MH 345D 345D L 345D L VG 349D 349D L
MOBILE HYD POWER UNIT 345C L
| Pos. | Part No | QTY | Parts name | Comments |
| 1 | 2R-0524 | [2] | CONE-BEARING | |
| 2 | 2R-0525 | [2] | CUP-BEARING | |
| 3 | 4I-7576 | [14] | WASHER (66.3X104X3-MM THK) | |
| 4 | 7M-8485 | [2] | SEAL-O-RING | |
| 5 | 7Y-0661 | [3] | SHAFT-PLANETARY | |
| 6 | 7Y-0662 | [4] | SHAFT-PLANETARY | |
| 7 | 199-4583 | [11] | BEARING AS | |
| 8 | 7Y-0808 B | [1] | SHIM (1.6-MM THK) | |
| 9 | 7Y-1469 | [1] | COUPLING | |
| 10 | 7Y-1470 | [1] | GEAR-SUN (21-TEETH) | |
| 11 | 7Y-1472 B | [1] | SHIM (0.15-MM THK) | |
| 12 | 7Y-1473 B | [1] | SHIM (0.3-MM THK) | |
| 13 | 7Y-1474 B | [1] | SHIM (0.4-MM THK) | |
| 14 | 7Y-1475 B | [1] | SHIM (0.5-MM THK) | |
| 15 | 7Y-1476 B | [1] | SHIM (0.6-MM THK) | |
| 16 | 7Y-1477 B | [1] | SHIM (0.7-MM THK) | |
| 17 | 7Y-1478 B | [1] | SHIM (0.8-MM THK) | |
| 18 | 7Y-1479 B | [1] | SHIM (1-MM THK) | |
| 19 | 7Y-1480 B | [1] | SHIM (1.6-MM THK) | |
| 20 | 7Y-1482 | [1] | CARRIER-PLANETARY | |
| 21 | 7Y-1483 | [1] | GEAR-RING (63-TEETH) | |
| 22 | 7Y-1485 | [1] | CARRIER-PLANETARY | |
| 23 | 7Y-1487 | [1] | GEAR-RING (85-TEETH) | |
| 24 | 7Y-1488 | [1] | CARRIER AS | |
| 7Y-0656 | [3] | SHAFT-PLANETARY | ||
| 25 | 7Y-1491 | [1] | GEAR-SUN (21-TEETH) | |
| 26 | 7Y-1493 | [1] | SPACER (8.7X50X14-MM THK) | |
| 27 | 7Y-1495 | [3] | GEAR-PLANETARY (29-TEETH) | |
| 28 | 7Y-1498 | [1] | COVER | |
| 29 | 7Y-1499 | [3] | GEAR-PLANETARY (20-TEETH) | |
| 30 | 7Y-1504 | [4] | GEAR-PLANETARY (20-TEETH) | |
| 31 | 7Y-5235 M | [20] | BOLT (M24X3X190-MM) | |
| 32 | 110-7217 | [2] | RING-RETAINING | |
| 33 | 114-1541 | [6] | PIN-DOWEL | |
| 34 | 169-5559 | [1] | GEAR-SUN (26-TEETH) | |
| 35 | 199-4719 | [1] | GEAR-COUPLING | |
| 36 | 200-3489 | [1] | HOUSING-MOTOR | |
| 37 | 200-3490 | [1] | HOUSING-GEAR | |
| 38 | 205-9025 | [1] | SEAL GP-DUO-CONE | |
| 205-9024 | [2] | RING-TORIC | ||
| 39 | 227-6048 | [12] | WASHER (26X40X4-MM THK) | |
| 40 | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 41 | 199-4582 | [3] | BEARING AS | |
| 42 | 095-0891 | [7] | PIN-SPRING | |
| 43 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 44 | 3E-2338 | [2] | PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) | |
| 45 | 6V-8133 M | [12] | BOLT (M24X3X80-MM) | |
| 46 | 7Y-1484 | [1] | SPACER (191X221X8.5-MM THK) | |
| 47 | 7Y-1492 | [2] | SPACER (67X101.1X10-MM THK) | |
| 48 | 8C-5240 | [1] | SEAL-O-RING | |
| 49 | 8T-3957 M | [10] | BOLT-SOCKET HEAD (M12X1.75X30-MM) | |
| 50 | 8T-4167 | [20] | WASHER-HARD (26X44X4-MM THK) | |
| 51 | 8T-4240 | [3] | RING-RETAINING | |
| 52 | 1U-8846 B | SEALANT-GASKET |
Engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
