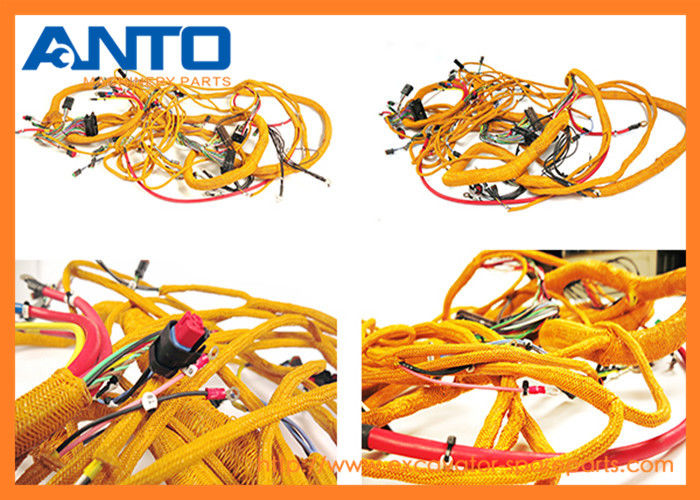

- E336D 330D 336D Excavator Parts 306-8797 Chassis Cab External Wiring Harness
| Excavator spare parts name |
EXTERNAL WIRING HARNESS |
| Equipment Model |
E330D E336D |
| Parts Category |
excavator electronic spare parts |
| Spare parts Condition |
Brand new |
| MOQ of order(PCS, SET) |
1 |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |
EXCAVATOR 330D, 330D L, 330D LN, 336D, 336D L, 340D L
1.2G-8767[2] -
WASHER (10.5X60X3-MM THK)
2.3S-2093 C[43] -
STRAP-CABLE
3.263-9574[2] -
BATTERY GP (12-VOLT, MAINTENANCE FREE)
4.4N-0205[2] -
SPACER (0.42X0.75X0.6-IN THK)
5.5I-8270[1] -
COVER-BATTERY
6.6G-2256[2] -
CLAMP
7.6G-2263[3] -
SPACER (10.5X19X28.5-MM THK)
8.6W-6005[1] -
HOLD-DOWN-BATTERY
9.7I-2673[5] -
STRAP-CABLE
10.7K-1181[25] -
STRAP-CABLE
11.7Y-5456[2] -
GROMMET
12.7Y-8165[2] -
GROMMET
13.087-4587[1] -
GROMMET
14.091-9035[1] -
SPACER (11X25X20-MM THK)
15.107-8618[1] -
SENSOR GP-TEMPERATURE (AMBIENT AIR)
102-8803[1] -
KIT-RECEPTACLE (3-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
186-3735[3] -
PIN-CONNECTOR (16-GA TO 18-GA)
112-4550 E-
SLEEVE (31-CM)
16.111-4836[9] -
CLIP
17.111-4837[12] -
CLIP
18.111-4838[16] -
CLIP
19.111-4839[16] -
STRAP
20.116-0118 C[13] -
CLIP
21.128-8886[1] -
STRAP AS-GROUND
22.130-1433[1] -
SPACER (11X25X17-MM THK)
23.132-1806[1] -
STRAP AS-GROUND
24.148-5018[1] -
GROMMET
25.170-6929[1] -
CABLE AS
5P-0761 E-
CABLE (00-GA, RED)(31-CM)
9G-0002[1] -
COVER AS-TERMINAL (RED)(BATTERY POSITIVE)
8L-8413[1] -
STRAP-CABLE
9G-0005[1] -
COVER AS-TERMINAL (BLACK)(BATTERY NEGATIVE)
8L-8413[1] -
STRAP-CABLE
8C-5918[1] -
TERMINAL AS (NEGATIVE)
1M-6119[1] -
BOLT (5/16-18X1.375-IN)
1M-6120[1] -
NUT (5/16-18-THD)
8T-9756[1] -
TERMINAL AS (POSITIVE)
1M-6119[1] -
BOLT (5/16-18X1.375-IN)
1M-6120[1] -
NUT (5/16-18-THD)
26.204-1611[1] -
STRAP-CABLE (DUAL)
27.204-1614[1] -
BRACKET AS
28.231-1827[1] -
CABLE AS
1S-7252[1] -
TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
5P-0747 E-
CABLE (00-GA, BLACK)(23-CM)
9G-0003[1] -
COVER AS-TERMINAL (BLACK)(BATTERY NEGATIVE)
8L-8413[1] -
STRAP-CABLE
9G-8909[1] -
COVER-TERMINAL (BLACK)(DISCONNECT SWITCH)
8T-9757[1] -
TERMINAL AS-BATTERY (NEGATIVE)
1M-6119[1] -
BOLT (5/16-18X1.375-IN)
1M-6120[1] -
NUT (5/16-18-THD)
29.238-2501[1] -
KNOB
30.238-2528[1] -
ROD
31.251-0153[1] -
BRACKET AS
32.251-0467[1] -
BRACKET AS
33.251-0625[1] -
CABLE AS
1S-7251[1] -
TERMINAL-CABLE (00-GA, 1/2-IN SCREW)
5P-0761 E-
CABLE (00-GA, RED)(413-CM)
8N-0869[1] -
COVER-TERMINAL (RED)(STARTING MOTOR)
9G-0004[1] -
COVER AS-TERMINAL (RED)(BATTERY)
8L-8413[1] -
STRAP-CABLE
8C-5917[1] -
TERMINAL AS-BATTERY (POSITIVE)
1M-6120[1] -
NUT (5/16-18-THD)
1M-6119[1] -
BOLT (5/16-18X1.375-IN)
34.259-5130[1] -
BRACKET AS
35.259-5132[1] -
BRACKET AS
36.291-7780[1] -
BRACKET AS
37.306-8797 C[1] -
HARNESS AS-CHASSIS
102-8802[4] -
KIT-RECEPTACLE (2-PIN)
102-8803[3] -
KIT-RECEPTACLE (3-PIN)
102-8804[1] -
KIT-RECEPTACLE (4-PIN)
102-8806[1] -
KIT-RECEPTACLE (8-PIN)
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
8T-8729[8] -
PIN-CONNECTOR (16-GA TO 18-GA)
8T-8730[52] -
SOCKET-CONNECTOR (16-GA TO 18-GA)
3S-2093[31] -
STRAP-CABLE
3T-4688[1] -
TERMINAL-RING (4-GA, 7/16-IN SCREW)
9X-0196[2] -
TERMINAL AS
7Y-3962[1] -
TERMINAL-BULLET (MALE)
7Y-3963[1] -
TERMINAL-BULLET (FEMALE)
8T-8737[168] -
PLUG-SEAL
8T-8827[2] -
BOOT (RED)
9X-4998[1] -
SOCKET (14-GA TO 16-GA)
103-2529 E-
HOSE (80-CM)
9W-0852[17] -
PIN-CONNECTOR (14-GA TO 16-GA)
9W-0844[11] -
SOCKET-CONNECTOR (14-GA TO 16-GA)
116-0126[1] -
HOUSING-PLUG
116-0128[2] -
SEAL
116-0255[2] -
TERMINAL-BLADE (10-GA TO 20-GA)
119-3662 BE-
TUBE-HEAT SHRINK (10.85-MM DIA)
121-1038[1] -
HOUSING-RECEPTACLE
121-1039[1] -
TERMINAL (MALE)
125-7874 BE-
TUBE-HEAT SHRINK (5.72-MM DIA)
125-7875 BE-
TUBE-HEAT SHRINK (7.44-MM DIA)
9X-3402[120] -
SOCKET-CONNECTOR (16-GA TO 18-GA)
126-1768[10] -
SOCKET-CONNECTOR (14-GA TO 16-GA)
9G-4343[4] -
TERMINAL-RING (4-GA, 1/4-IN SCREW)
5P-3454[1] -
TERMINAL-RING (4-GA, 5/16-IN SCREW)
9G-4336[1] -
TERMINAL-RING (4-GA, 3/8-IN SCREW)
9G-4344[1] -
TERMINAL-RING (4-GA, 1/2-IN SCREW)
2L-8049[1] -
TERMINAL-RING (6-GA, NO. 10 SCREW)
-OR-
2L-8057[1] -
TERMINAL-RING (8-GA, NO. 10 SCREW)
2L-8050[1] -
TERMINAL-RING (6-GA, 1/4-IN SCREW)
-OR-
2L-8058[1] -
TERMINAL-RING (8-GA, 1/4-IN SCREW)
2L-8069[6] -
TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)
2L-8075[4] -
TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)
2L-8079[1] -
TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)
176-9299[2] -
KIT-RECEPTACLE (3-PIN)
(EACH INCLUDES RECEPTACLE AS & WEDGE)
134-3297[1] -
SEAL
9X-3401[58] -
PIN-CONNECTOR (16-GA TO 18-GA)
153-2620[1] -
PLUG AS-CONNECTOR (54-PIN, BLACK)
163-6759[1] -
SEAL
153-2630[1] -
PLUG AS-CONNECTOR (54-PIN, BROWN)
163-6759[1] -
SEAL
155-2270[18] -
KIT-CONNECTING PLUG (2-PIN)
155-2271[1] -
KIT-CONNECTING PLUG (4-PIN)
155-2260[2] -
KIT-CONNECTING PLUG (3-PIN)
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
160-7689[1] -
PLUG AS-CONNECTOR (70-PIN)
159-9322[1] -
SEAL-O-RING
163-6637[1] -
RECEPTACLE AS-CONNECTOR (54-PIN, BLACK)
163-6773[2] -
PLUG-SEAL
174-3016[2] -
PLUG AS-CONNECTOR (3-PIN)
230-4009[2] -
PLUG AS-CONNECTOR (12-PIN)
(EACH INCLUDES)
264-7034[1] -
SEAL-CONNECTOR
230-4011[8] -
PLUG AS-CONNECTOR (2-PIN)
(EACH INCLUDES)
264-7029[1] -
SEAL-CONNECTOR
230-4013[4] -
PLUG AS-CONNECTOR (3-PIN)
(EACH INCLUDES)
264-7030[1] -
SEAL-CONNECTOR
230-5010[2] -
PLUG AS-CONNECTOR (6-PIN)
(EACH INCLUDES)
264-7032[1] -
SEAL-CONNECTOR
231-2295[1] -
PLUG AS-CONNECTOR (8-PIN)
264-7033[1] -
SEAL-CONNECTOR
243-4505[7] -
RECEPTACLE AS-CONNECTOR (2-PIN)
243-4506[2] -
RECEPTACLE AS-CONNECTOR (3-PIN)
243-4508[2] -
RECEPTACLE AS-CONNECTOR (6-PIN)
243-4509[1] -
RECEPTACLE AS-CONNECTOR (8-PIN)
243-4510[2] -
RECEPTACLE AS-CONNECTOR (12-PIN)
38.132-5789[8] -
CLIP
39.4K-8864[2] -
CLIP
40.4P-7428 C[2] -
CLIP
41.5I-8748 C[1] -
SPACER (11X18X5-MM THK)
42.5C-7261 M[1] -
NUT (M8X1.25-THD)
43.5C-7883 M[4] -
BOLT-SOCKET HEAD (M6X1X16-MM)
44.5P-4116 C[2] -
WASHER-HARD (8.8X20.5X2-MM THK)
45.5P-8439[1] -
GROMMET
46.6K-8178[6] -
CLIP
47.7X-2548 M[1] -
BOLT (M12X1.75X16-MM)
48.7X-2621 CM[5] -
BOLT (M10X1.5X12-MM)
49.350-8388 C[1] -
SPACER (11X25X65-MM THK)
50.8M-2770[1] -
CLIP
51.8T-4121[62] -
WASHER-HARD (11X21X2.5-MM THK)
52.8T-4133 M[1] -
NUT (M10X1.5-THD)
53.8T-4136 CM[11] -
BOLT (M10X1.5X25-MM)
54.8T-4137 M[20] -
BOLT (M10X1.5X20-MM)
55.8T-4172 M[1] -
BOLT (M10X1.5X80-MM)
56.306-8803 C[1] -
BRACKET AS
57.8T-4182 M[1] -
BOLT (M10X1.5X45-MM)
58.8T-4185 M[1] -
BOLT (M10X1.5X50-MM)
59.8T-4186 M[1] -
BOLT (M10X1.5X40-MM)
60.8T-4191 M[9] -
BOLT (M10X1.5X16-MM)
61.8T-4195 M[4] -
BOLT (M10X1.5X30-MM)
62.8T-4196 M[7] -
BOLT (M10X1.5X35-MM)
63.8T-4199 M[1] -
BOLT (M8X1.25X12-MM)
64.8T-4223[1] -
WASHER-HARD (13.5X25.5X3-MM THK)
65.8T-4226[1] -
WASHER-PLATED (10.5X45X3-MM THK)
66.8T-5005 M[1] -
BOLT (M10X1.5X70-MM)
67.8T-6466 M[1] -
BOLT (M10X1.5X60-MM)
68.9X-8256[4] -
WASHER (6.6X12X2-MM THK)
69.204-1673[1] -
STRAP-CABLE
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts catalog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
