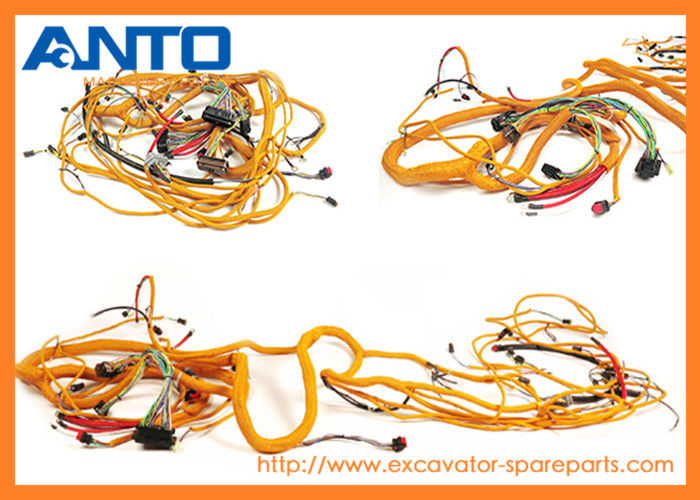

- E320D 320D 323D Excavator Parts 306-8610 External Chassis Wire Harness
| Excavator spare parts name |
CHASSIS HARNESS |
| Equipment Model |
E320D |
| Parts Category |
excavator electronic spare parts |
| Spare parts Condition |
Brand new |
| MOQ of order(PCS, SET) |
1 |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |
1.2G-8767[2] -
WASHER (10.5X60X3-MM THK)
2.3S-2093 C[38] -
STRAP-CABLE
3.3T-5760[2] -
BATTERY GP (12-VOLT, 750-CCA)
4.306-8401[1] -
GROMMET
5.5I-8270[1] -
COVER-BATTERY
6.5I-9368[1] -
SPACER (9.24X13.72X20.5-MM THK)
7.6W-6005[1] -
HOLD-DOWN-BATTERY
8.7I-2673[4] -
STRAP-CABLE
9.7K-1181[15] -
STRAP-CABLE
10.7Y-5456[2] -
GROMMET
11.111-4836[11] -
CLIP
12.111-4837[12] -
CLIP
13.111-4838[13] -
CLIP
14.111-4839[13] -
STRAP
15.116-0118 C[11] -
CLIP
16.132-1805[1] -
STRAP AS-GROUND
17.132-1806[1] -
STRAP AS-GROUND
18.170-6929[1] -
CABLE AS
5P-0761 E-
CABLE (00-GA, RED)(31-CM)
9G-0002[1] -
COVER AS-TERMINAL (RED)
9G-0005[1] -
COVER AS-TERMINAL (BLACK)
8T-9756[1] -
TERMINAL AS (POSITIVE)
8C-5918[1] -
TERMINAL AS (NEGATIVE)
(EACH TERMINAL AS INCLUDES)
1M-6119[1] -
BOLT (5/16-18X1.375-IN)
1M-6120[1] -
NUT (5/16-18-THD)
19.170-9336[1] -
BRACKET AS
20.183-1049[1] -
BRACKET
21.231-1827[1] -
CABLE AS
1S-7252[1] -
TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
5P-0747 E-
CABLE (00-GA, BLACK)(23-CM)
9G-0003[1] -
COVER AS-TERMINAL (BLACK)
9G-8909[1] -
COVER-TERMINAL (BLACK)
8T-9757[1] -
TERMINAL AS-BATTERY (NEGATIVE)
1M-6119[1] -
BOLT (5/16-18X1.375-IN)
1M-6120[1] -
NUT (5/16-18-THD)
22.238-2501[1] -
KNOB
23.238-2528[1] -
ROD
24.251-0467[1] -
BRACKET AS
25.259-5267[1] -
BRACKET AS
26.259-5317[1] -
BRACKET AS
27.306-8610 C[1] -
HARNESS AS-CHASSIS
28.291-7591[1] -
CABLE AS
1S-7252[1] -
TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
5P-0761 E-
CABLE (00-GA, RED)(327-CM)
9G-0004[1] -
COVER AS-TERMINAL (RED)
8N-0869[1] -
COVER-TERMINAL (RED)
8C-5917[1] -
TERMINAL AS-BATTERY (POSITIVE)
1M-6119[1] -
BOLT (5/16-18X1.375-IN)
1M-6120[1] -
NUT (5/16-18-THD)
29.291-7593[1] -
BRACKET AS
30.085-7329[2] -
SPACER (9X19X30-MM THK)
31.091-9035[1] -
SPACER (11X25X20-MM THK)
32.9X-8256[6] -
WASHER (6.6X12X2-MM THK)
33.132-5789[2] -
CLIP
34.4K-8864[1] -
CLIP
35.4P-7428[1] -
CLIP
36.4P-7581[4] -
CLIP
37.5C-7261 M[1] -
NUT (M8X1.25-THD)
38.5C-7883 M[4] -
BOLT-SOCKET HEAD (M6X1X16-MM)
39.5I-3878[1] -
GROMMET
40.5P-4116[5] -
WASHER-HARD (8.8X20.5X2-MM THK)
41.6G-2256[2] -
CLAMP
42.6G-2263[4] -
SPACER (10.5X19X28.5-MM THK)
43.6K-8178[4] -
CLIP
44.7X-0818 M[2] -
BOLT (M8X1.25X45-MM)
45.7X-2533 M[1] -
BOLT (M6X1X35-MM)
46.7X-2619 M[1] -
BOLT (M6X1X10-MM)
47.7X-2621 M[2] -
BOLT (M10X1.5X12-MM)
48.7Y-1924[2] -
SPACER (9X19X23-MM THK)
49.7Y-5226 M[1] -
NUT (M5X0.8-THD)
50.7Y-8165[1] -
GROMMET
51.7Y-8167[1] -
GROMMET
52.8J-1256[1] -
CLIP
53.8M-2770[1] -
CLIP
54.8T-0286 M[1] -
BOLT (M5X0.8X8-MM)
55.8T-0328[2] -
WASHER-HARD (5.5X10X1-MM THK)
56.8T-4121[60] -
WASHER-HARD (11X21X2.5-MM THK)
57.8T-4133 M[1] -
NUT (M10X1.5-THD)
58.8T-4136 M[10] -
BOLT (M10X1.5X25-MM)
59.8T-4137 M[36] -
BOLT (M10X1.5X20-MM)
60.8T-4182 M[2] -
BOLT (M10X1.5X45-MM)
61.8T-4185 M[2] -
BOLT (M10X1.5X50-MM)
62.8T-4191 M[3] -
BOLT (M10X1.5X16-MM)
63.8T-4195 M[5] -
BOLT (M10X1.5X30-MM)
64.8T-4196 M[1] -
BOLT (M10X1.5X35-MM)
65.8T-4199 M[1] -
BOLT (M8X1.25X12-MM)
66.8T-4226[1] -
WASHER-PLATED (10.5X45X3-MM THK)
67.8T-6466 M[1] -
BOLT (M10X1.5X60-MM)
68.8T-6912 M[2] -
BOLT (M8X1.25X50-MM)
69.299-2767 C[1] -
WIRE AS
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts catalog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
