9196963 4398514 Excavator Swing Motor Drive Device Gearbox For Hitachi ZX200 ZX225

9196963 4398514 Excavator Swing Motor Drive Device Gearbox For Hitachi ZX200 ZX225
9196963 4398514 Excavator Swing Motor Drive Device Gearbox For Hitachi ZX200 ZX225

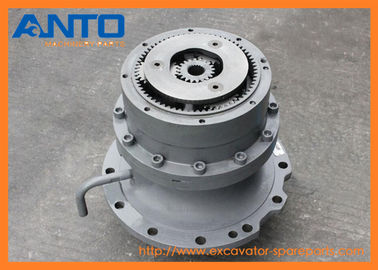

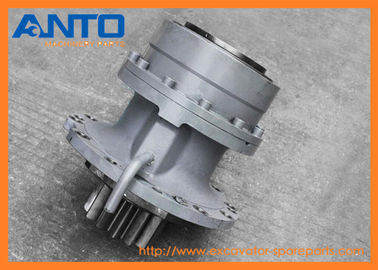

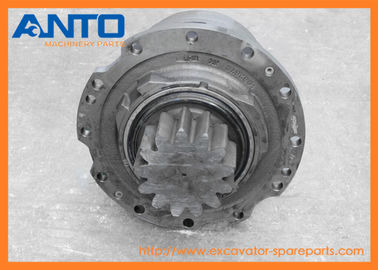

Large Image :  9196963 4398514 Excavator Swing Motor Drive Device Gearbox For Hitachi ZX200 ZX225

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: ZX200
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Detailed Product Description
Category: Excavator Swing Gear Parts Machine Model: ZX200
Parts NO.: 9196963 4398514 Material: Forged, Steel
Warranty: 3/6 Months Package: Standard Export Carton
High Light:

swing gear box

,

swing reduction gear



  • 9196963 4398514 Excavator Swing Motor Drive Device Gearbox Applied To Hitachi ZX200 ZX225





  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .





  • Spec Sheet



Excavator spare parts name Swing device gearbox
Equipment Model ZX200
Parts Category Excavator Swing gear
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days




  • Application



IZX200 . IZX200LC . IZX210F . IZX210MF . MA200-G . ZX180LC . ZX180LC-AMS . ZX180LC-HCME . ZX180W . ZX180W-AMS . ZX200 . ZX200-3-HCMC . ZX200-3G . ZX200-E . ZX200-HHE . ZX200-X . ZX200LC-HHE . ZX210-AMS . ZX210-HCME . ZX210H . ZX210H-3G . ZX210K . ZX210K-3G . ZX210LC-3G . ZX210N-AMS . ZX210N-HCME . ZX210W . ZX210W-AMS . ZX225USR . ZX225USR-E . ZX225USRK . ZX240-AMS . ZX240-HCME . Hitachi



  • Parts Diagram

9196963 4398514 Excavator Swing Motor Drive Device Gearbox For Hitachi ZX200 ZX225 0



ENTIRE GROUP T.MISSION (SWING):

ENTIRE GROUP SWING DEVICE:

01.2044634[1] -
SHAFT;PROP.
02.3083742[1] -
SLEEVE
03.A811120[1] -
O-RING
04.4402481[1] -
BRG.;ROL.
05.1027617 Y[1] -
HOUSING 1032876
05.1032876[1] -
HOUSING
06.4411535[1] -
SEAL;OIL
07.4402637[1] -
BRG.;ROL.
08.3086064[1] -
NUT
09.4411122[1] -
PLATE;LOCK
10.J901020[2] -
BOLT
11.1026662[1] -
CARRIER
12.4187590[1] -
PLATE;THRUST
13.3084729[3] -
GEAR;PLANETARY
14.4336929[6] -
PLATE;THRUST
15.4336925 I[3] -
PIN 4488904
15.4488904[3] -
PIN
16.4027427[3] -
PIN;SPRING
17.4427630 I[6] -
BRG.;NEEDLE 4461644
17.4461644[6] -
BRG.;NEEDLE
17.4631475 I[6] -
BRG.;NEEDLE 4461644
18.3080912[1] -
GEAR;SUN
20.1025957[1] -
GEAR;RING
21.M341645[12] -
BOLT;SOCKET
23.1025912[1] -
CARRIER
24.4403371[1] -
PLATE;THRUST
25.3082517[3] -
GEAR;PLANETARY
26.4404506[3] -
BRG.;NEEDLE
27.4403082[3] -
PLATE;THRUST
28.4336923[3] -
PIN
29.4051262[3] -
PIN;SPRING
30.3084056[1] -
GEAR;SUN
33.3089362[1] -
PIPE
35.4445352[2] -
PLUG
36.94-2012[1] -
PLUG
61.3090308[1] -
COVER (for transportation)
62.J011230[4] -
BOLT;SEMS
62.J271230 T[4] -
BOLT;SEMS J901230

J222012 (for transportation)
63.3053093[1] -
NAME-PLATE (for transportation)
64.M492564[2] -
SCREW;DRIVE (for transportation)
100.4398514[1] -
MOTOR;OIL
101.991342[1] -
RING;RETAINING
103.M341228 I[8] -
BOLT;SOCKET 4614096
103.4614096[8] -
BOLT;SOCKET
104.4264452[1] -
PIPE
105.3074223[1] -
GAUGE;LEVEL
106.4332658[1] -
PIPE
107.4343365[1] -
CAP
109.3053093[1] -
NAME-PLATE
110.M492564[2] -
SCREW;DRIVE
200.9196963[1] -
SWING DEVICE (WITHOUT MOTOR)
