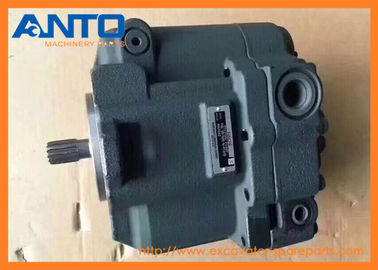

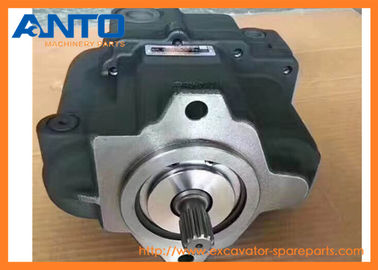

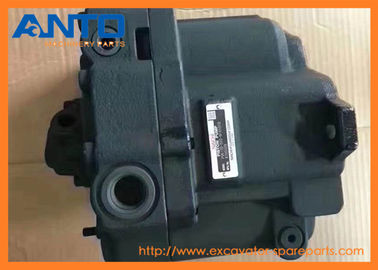

4621412 NACHI PVK-2B-505 Hydraulic Piston Pump For Hitachi ZX55UR-2 ZX55UR-3

4621412[1] -
PUMP;PISTON .
1.+++++++[1] -
BODY
2.+++++++[1] -
BODY
3.0842101[1] -
SHAFT
4.+++++++[1] -
BUSHING
5.+++++++[1] -
PLATE;VALVE
6.+++++++[11] -
PISTON
7.+++++++[11] -
SHOE
8.+++++++[1] -
HOLDER;SHOE
9.+++++++[1] -
HOLDER
10.0842102[1] -
PLATE .
11.+++++++[3] -
NEEDLE
12.0842103[2] -
PIN .
13.+++++++[1] -
PACKING
14.+++++++[1] -
SPRING
15.0842104[1] -
SPRING
16.0800005[1] -
HOLDER .
17.0630612[1] -
GUIDE;SPRING .
18.0429816[3] -
PIN .
19.+++++++[3] -
RETAINER
20.0861301[1] -
PIN .
21.0800007[1] -
SPRING .
22.0630606[1] -
HOLDER .
23.0842106[1] -
SLEEVE .
24.0842113[1] -
PISTON .
25.4509180[1] -
O-RING .
26.0429817[1] -
BRG.;BALL .
27.+++++++[1] -
BRG.;NEEDLE
28.+++++++[1] -
SEAL;OIL
29.988850[1] -
RING;RETAINING .
30.446751[1] -
RING;RETAINING
31.942517[1] -
RING;RETAINING .
32.0630505[1] -
PLUG .
33.957366[1] -
O-RING .
34.A811075[1] -
O-RING .
35.0800010[7] -
BOLT;SOCKET .
36.0655913[1] -
SCREW .
37.0630509[1] -
NUT .
38.4608835[1] -
WASHER;SEAL .
39.4345902[1] -
PUMP;GEAR ASS'Y .
40.0948901[1] -
COUPLING .
41.+++++++[2] -
BALL;STEEL
42.+++++++[4] -
BOLT;SOCKET
43.+++++++[2] -
BRG.
44.+++++++[4] -
WASHER
45.0637703[1] -
O-RING .
46.0630506[1] -
PLUG .
47.4506418[1] -
O-RING .
48.4633156[1] -
VALVE .
48A.+++++++[1] -
SLEEVE
48B.+++++++[1] -
SPOOL
48C.+++++++[1] -
GUIDE;SPRING
48D.+++++++[1] -
GUIDE;SPRING
48E.+++++++[2] -
SPRING
48F.+++++++[1] -
ADJUSTER
48G.4506320[1] -
O-RING .
48H.4506420[1] -
O-RING
48I.0842109[1] -
O-RING .
48J.0842108[1] -
O-RING .
48K.0842107[2] -
O-RING .
51.+++++++[3] -
PLUG
52.+++++++[1] -
CHOKE
54.0630515[1] -
GASKET .
200.0842111[1] -
CYL. BARREL KIT .
300.4633148[1] -
KIT;SEAL
