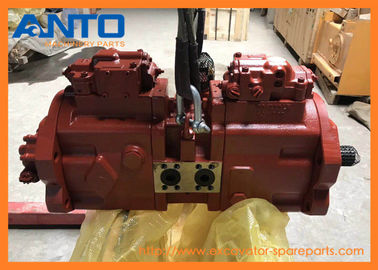

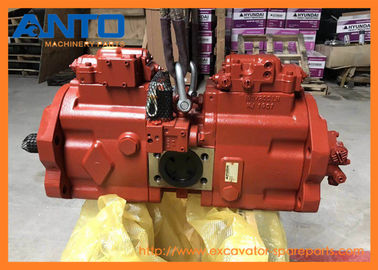

- 31N9-10010 Genuine K3V180DT-1RER-9CS9-DL Used For Hyundai R320LC-7 Excavator
| Excavator spare parts name |
Excavator pump |
| Equipment Model |
R320-7 |
| Parts Category |
excavator hydraulic spare parts |
| Spare parts Condition |
Brand new |
| MOQ of order(PCS, SET) |
1 |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |
The parts could be applied to below models:
Hyundai Robex R320LC-7 R320LC-7A
parts diagram:
* 31N9-10010 MAIN PUMP 1
*-1
MAIN PUMP UNIT 1
S012 XJBN-00567 BLOCK-CYLINDER 2
111 XJBN-00015 SHAFT-DRIVE(F) 1
113 XJBN-00153 SHAFT-DRIVE(R) 1
114 XJBN-00367 COUPLING-SPLINE 1
123 XJBN-00017 BEARING-ROLLER 2
124 XJBN-00018 BEARING-NEEDLE 2
127 XJBN-00019 SPACER-BEARING 3
S151 XJBN-00566 PISTON 1
S152 XJBN-00565 SHOE 1
153 XJBN-00020 PLATE-SET 2
156 XJBN-00564 BUSHING-SPHERICAL 2
157 XJBN-00541 SPRING-CYLINDER 18
211 XJBN-00023 PLATE-SHOE 2
S212 XJBN-00012 PLATE-SWASH 1
S214 XJBN-00013 BUSHING-TILTING 1
251 XJBN-00560 SUPPORT-S.P 2
261 XJBN-00025 COVER(FR)-SEAL 1
271 XJBN-00026 CASING-PUMP 2
312 XJBN-00027 BLOCK-VALVE 1
S313 XJBN-00557 PLATE-VALVE(R) 1
S314 XJBN-00556 PLATE-VALVE(L) 1
325 XJBN-00380 CASING-VALVE 1
401 XJBN-00028 SCREW 8
406 XJBN-00355 SCREW-HEX SOC HD 4
466 XJBN-00356 PLUG 2
468 XJBN-00357 PLUG 3
490 XJBN-00032 PLUG 30
S531 XJBN-00369 PIN-TILTING 1
532 XJBN-00033 PISTON-SERVO 2
534 XJBN-00034 STOPPER(L) 2
535 XJBN-00035 STOPPER(S) 2
541 XJBN-00036 SEAT 4
543 XJBN-00037 STOPPER 1 2
544 XJBN-00039 STOPPER 2 2
545 XJBN-00359 BALL-STEEL 4
S548 XJBN-00360 PIN-FEED BACK 1
K702 XJBN-00040 O-RING 2
K710 XJBN-00041 O-RING 1
K717 XJBN-00042 O-RING 2
K719 XJBN-00043 O-RING 2
K724 XJBN-00044 O-RING 16
K725 XJBN-00362 O-RING 4
K727 XJBN-00283 O-RING 1
K728 XJBN-00363 O-RING 3
K732 XJBN-00047 O-RING 2
K774 XJBN-00906 SEAL-OIL 1
K789 XJBN-00049 RING-BACK UP 2
K792 XJBN-00050 RING-BACK UP 2
808 XJBN-00364 NUT 4
824 XJBN-00052 RING-SNAP 2
885 XJBN-00053 PIN-2 2
886 XJBN-00365 PIN-SPRING 4
901 XJBN-00055 BOLT-EYE 2
953 XJBN-00654 SCREW-SET 2
954 XJBN-00057 SCREW-SET 2
981 XJBN-00391 NAME PLATE 1
983 XJBN-00341 PIN 2
*-2 XJBN-00656 REGULATOR 1
*-3 XJBN-00655 GEAR PUMP 1
11 XJBN-00563 PISTON ASSY 18
13 XJBN-00562 CYLINDER ASSY-RH 1
14 XJBN-00561 CYLINDER ASSY-LH 1
30 XJBN-00011 SWASH PLATE ASSY 2
530 XJBN-00371 TILTING PIN ASSY 2
K XJBN-01108 SEAL KIT-PUMP UNIT 1
