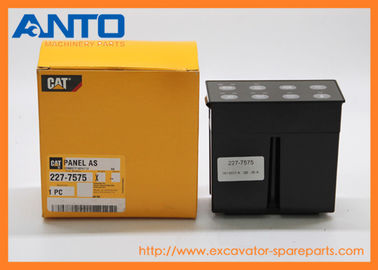

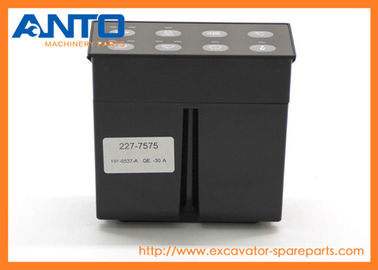

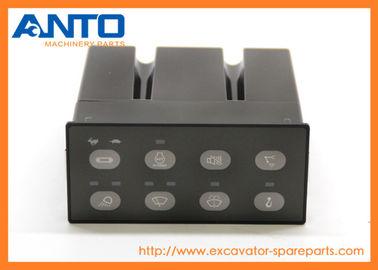

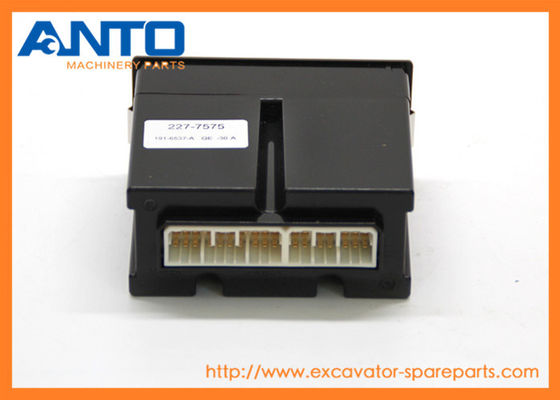

227-7575 Air Conditioner Control Panel Applied To 312D 315D 320D Excavator Parts

Large Image : 227-7575 Air Conditioner Control Panel Applied To 312D 315D 320D Excavator Parts

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	312D 320D

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	Engine Spare Parts	Model:	312D 320D
Part NO.:	227-7575	Parts Name:	Excavator Control Panel
Package:	Standard Box Package
Highlight:	spare parts , aftermarket parts

227-7575 Air Conditioner Control Panel Applied To 312D 315D 320D Excavator Parts

Excavator spare parts name	control panel
Equipment Model	312D 320D
Parts Category	excavator ENGINE spare parts
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

The control panel could be applied to below models:

311D LRR . 312D . 312D L . 312D2 . 312D2 GC . 312D2 L . 313D . 313D2 . 313D2 LGP . 314D CR . 314D LCR . 315D L . 318D L . 318D2 L . 319D . 319D L . 319D LN . 320D . 320D FM . 320D FM RR . 320D GC . 320D L . 320D LN . 320D LRR . 320D RR . 320D2 . 320D2 GC . 320D2 L . 321D LCR . 323D L . 323D LN . 323D SA . 324D . 324D FM . 324D FM LL . 324D L . 324D LN . 325D . 325D FM . 325D FM LL . 325D L . 325D MH . 326D L . 328D LCR . 329D . 329D L . 329D LN . 330D . 330D FM . 330D L . 330D LN . 330D MH . 336D . 336D L . 336D LN . 336D2 . 336D2 L . 340D L . 340D2 L . 345C . 345C L . 345C MH . 345D . 345D L . 345D L VG . 349D . 349D L . W345C MH .

parts diagram:

227-7575 Air Conditioner Control Panel Applied To 312D 315D 320D Excavator Parts 0

1.3S-2093[11] -
STRAP-CABLE
2.7Y-5505[2] -
SPEAKER AS .
7Y-3951[2] -
TERMINAL-BLADE (14-GA) .
7Y-3954[1] -
CONNECTOR-PLUG (3-PIN) .
3.9W-0335[1] -
LIGHTER AS-CIGAR (24-VOLT)
6T-6505[1] -
HOUSING-RECEPTACLE (BLADE, POSITIVE LOCK) .
6T-6506[1] -
TERMINAL-BLADE (14-GA TO 18-GA) .
4.094-2080[1] -
SWITCH-MAGNETIC (24-VOLT) .
5.099-7127 M[8] -
SCREW-MACHINE (M4X0.7X12-MM) .
6.102-8016[1] -
RESISTOR AS
7.113-8490[22] -
FUSE (10-AMPERE)
8.113-8491[4] -
FUSE (15-AMPERE)
9.113-8493[9] -
FUSE (25-AMPERE) .
10.116-0210[4] -
BRACKET AS .
11.124-3548[2] -
FUSE (30-AMPERE) .
12.132-1829 Y[1] -
ALARM GP (24-VOLT) .
13.141-2759[9] -
FUSE (5-AMPERE) .
14.161-3128[6] -
RELAY (24-VOLT)
15.161-3932[1] -
METER GP-SERVICE .
5C-8312 M[2] -
NUT (M4X0.7-THD)
9B-7233[2] -
LOCKWASHER
096-6166[2] -
WASHER-HARD (4.5X9X1-MM THK) .
16.163-6703[1] -
TIMER AS-OFF DELAY
186-3735[4] -
PIN-CONNECTOR (16-GA TO 18-GA)
102-8804[1] -
KIT-RECEPTACLE (4-PIN)

(INCLUDES RECEPTACLE AS & WEDGE)
17.163-6758[1] -
WIRE AS .
102-8802[1] -
KIT-RECEPTACLE (2-PIN)

(INCLUDES RECEPTACLE AS & WEDGE)
3E-3365[1] -
WEDGE-RECEPTACLE LOCK (2-PIN)
18.163-6795[14] -
STRAP-CABLE .
19.167-3593[1] -
STRAP .
20.170-6888[1] -
PULLER-FUSE .
21.197-4330[1] -
CONTROLLER-AIR (HEATER) .
22.213-0772[1] -
SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY)
23.227-7575[1] -
PANEL-CONTROL (SWITCH)
24.234-1097[1] -
BRACKET .
25.238-2212[1] -
SWITCH AS-ROCKER (FINE SWING) .
167-3542[1] -
RECEPTACLE-CONNECTOR (5-PIN) .
167-3543[5] -
TERMINAL (MALE) .
26.238-2318[1] -
LIGHTER AS-CIGAR (24-VOLT) .
27.238-2390[1] -
CABLE AS (RED) .
28.238-2391[1] -
CABLE AS (PURPLE) .
29.245-7760[8] -
INSULATION .
30.251-0637[1] -
INSULATION .
31.259-4883[1] -
ANTENNA AS .
259-5081[1] -
ROD .
259-5082[1] -
CABLE AS .
32.259-5223[1] -
HARNESS AS-CAB (AUXILIARY, CHASSIS) .
102-8803[3] -
KIT-RECEPTACLE (3-PIN)

(EACH INCLUDES RECEPTACLE AS & WEDGE)
3S-2093[114] -
STRAP-CABLE
155-2260[1] -
KIT-CONNECTING PLUG (3-PIN)
155-2270[2] -
KIT-CONNECTING PLUG (2-PIN)

(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
155-2272[1] -
PLUG AS-CONNECTOR (4-PIN) .
174-3016[2] -
PLUG AS-CONNECTOR (3-PIN) .
230-4009[1] -
PLUG AS-CONNECTOR (12-PIN) .
230-4011[1] -
PLUG AS-CONNECTOR (2-PIN)
230-4013[1] -
PLUG AS-CONNECTOR (3-PIN) .
33.259-5290[1] -
BRACKET AS .
34.267-7639[1] -
SWITCH AS-ROCKER (LEVELING) .
167-3542[1] -
RECEPTACLE-CONNECTOR (5-PIN) .
167-3543[5] -
TERMINAL (MALE) .
35.095-0723 M[3] -
SCREW-SPECIAL
36.096-5962[3] -
WASHER-HARD (3.4X7X0.8-MM THK) .
37.096-6166[2] -
WASHER-HARD (4.5X9X1-MM THK) .
38.132-5789[8] -
CLIP .
39.4P-7581[1] -
CLIP
40.5C-2890 M[9] -
NUT (M6X1-THD)
41.6V-5210 M[8] -
SCREW-MACHINE (M4X0.7X10-MM) .
42.6V-9672 M[2] -
SCREW-MACHINE (M4X0.7X16-MM) .
43.8T-0328[3] -
WASHER-HARD (5.5X10X1-MM THK)
44.8T-4127 M[2] -
SCREW-MACHINE (M5X0.8X20-MM) .
45.8T-6693 M[1] -
SCREW-MACHINE (M5X0.8X16-MM)
46.9X-2042 M[14] -
SCREW-TRUSS HEAD (M6X1X12-MM)
47.9X-2044 M[5] -
SCREW-TRUSS HEAD (M6X1X16-MM) .
48.9X-8256[9] -
WASHER (6.6X12X2-MM THK)
49.101-2846 E-
GUARD (9.5-CM) .
49A.101-2846 E-
GUARD (9-CM EACH)
