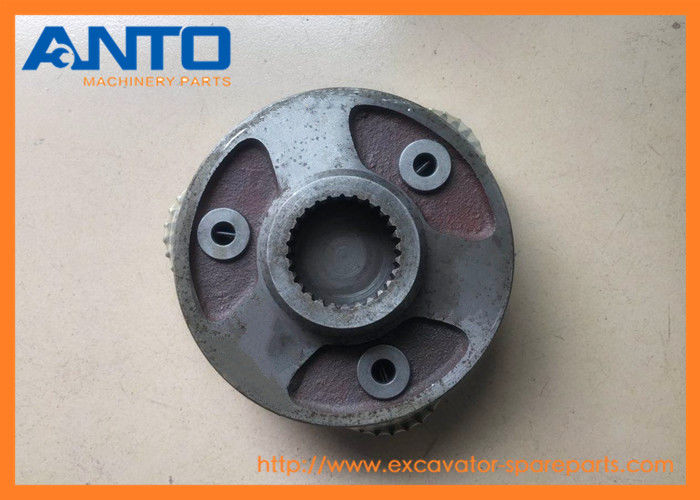

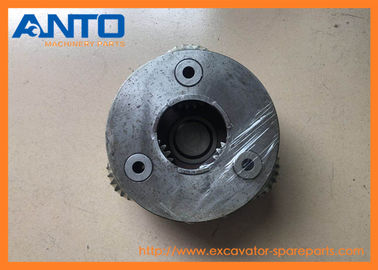

05/903866 Gear Reduction Assembly For JCB JS200 JS220 Swing Gearbox

05/903866 Gear Reduction Assembly For JCB JS200 JS220 Swing Gearbox
05/903866 Gear Reduction Assembly For JCB JS200 JS220 Swing Gearbox

Large Image :  05/903866 Gear Reduction Assembly For JCB JS200 JS220 Swing Gearbox

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 05/903866
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 568 PCS per week
Detailed Product Description
Category: Excavator Swing Gearbox Parts Machine Model: JS200 JS210 JS220
Parts No.: 05/903866 Parts Name: PLANET CARRIER ASSY
Warranty: 3/6 Months Package: Standard Export Carton
High Light:

swing gear box

,

swing reduction gear



  • 05/903866 Gear Reduction Assembly Applied To JCB JS200 JS220 Swing Gearbox




  • Spec Sheet



spare parts name Planet carrier assy
Equipment Model JCB JS200 JS210 JS220
Parts Category Excavator swing reducer
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days





  • Application

JCB JS200 JS210 JS220

  • Parts Diagram

Number 6 on drawing

05/903866 Gear Reduction Assembly For JCB JS200 JS220 Swing Gearbox 0



A. JRC0007 [1]
Gearbox swing
1. 05/903860 [1]
Gear reduction assembly
2. 05/902010 [2]
O Ring
3. 05/903862 [1]
Ring Toothed
4. 05/903863 [1]
Gear Sun
5. 05/903864 [1]
Cover
5A. 05/903865 [1]
Ring Toothed
6. 05/903866 [1]
Gear Reduction Assembly
7. 05/903867 [1]
Gear Sun
8. 05/903868 [16]
Screw M16 x 120mm
10. 05/903873 [1]
Gear output assembly
10-1. 05/903869 [1]
Shaft pinion 14 teeth
10-2. 05/903870 [1]
Spacer
10-3. 05/903871 [1]
Ring
10-4. 05/903872 [1]
Bearing
10-6. 05/903874 [1]
Nut
10-7. 05/903875 [1]
Bearing
10-8. 05/903876 [1]
Seal ring 100 x 130 x 12mm
10-8. 333/C7880 [1]
Seal 100x140x13 LARGER SIZE
10-9. 05/903877 [1]
Housing
11.
'See Remark' Gauge,oil level see page E2-7-3,Swing motor




  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .





  • Advantage




1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
