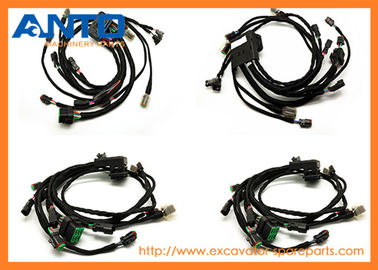

- E330C Excavator Parts 230-6279 C-9 Engine Wiring Harness
| Excavator spare parts name |
ENGINE HARNESS |
| Equipment Model |
E330C |
| Parts Category |
excavator electronic spare parts |
| Spare parts Condition |
Brand new |
| MOQ of order(PCS, SET) |
1 |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |
CHALLENGER MTC735 .
EXCAVATOR 330C . 330C FM . 330C L . 330C MH .
INDUSTRIAL ENGINE C-9 .
MOBILE HYD POWER UNIT 330C .
MOTOR GRADER 12H .
TRACK FELLER BUNCHER TK711 . TK721 . TK722 . TK732 . TK741 . TK751 . TK752 .
TRACK-TYPE TRACTOR D6R II .
WHEEL SCRAPER 627G . 637D . 637G .
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
3S-2093 C |
[24] |
STRAP-CABLE |
|
| 2 |
4P-5918 C |
[1] |
CLIP |
|
| 3 |
188-9865 |
[1] |
HARNESS AS-ENGINE (FUEL INJECTOR) |
|
| 4 |
224-9222 C |
[1] |
BRACKET |
|
| 5 |
230-6279 C |
[1] |
HARNESS AS-ENGINE (SENSORS) |
|
| |
214-7170 J |
[1] |
KIT-REPAIR (ELECTRICAL CONNECTORS)(FOR EXTREME COLD CLIMATES) |
|
| |
194-5226 |
[7] |
WIRE AS (16-GA) |
|
| |
3E-3371 |
[2] |
WEDGE-RECEPTACLE LOCK (3-PIN) |
|
| |
8T-8737 |
[8] |
PLUG-SEAL |
|
| |
155-2276 |
[3] |
WEDGE-PLUG LOCK (3-PIN) |
|
| |
102-8803 |
[2] |
KIT-RECEPTACLE (3-PIN) |
|
| |
|
|
(EACH INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
155-2260 |
[3] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
|
|
(EACH INCLUDES PLUG AS & WEDGE) |
|
| |
102-8802 |
[2] |
KIT-RECEPTACLE (2-PIN) |
|
| |
|
|
(EACH INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
102-8803 |
[4] |
KIT-RECEPTACLE (3-PIN) |
|
| |
|
|
(EACH INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
100-3320 |
[1] |
PLUG AS-CONNECTOR (2-PIN) |
|
| |
126-5011 |
[1] |
SEAL-CONNECTOR |
|
| |
111-2416 |
[1] |
PLUG AS-CONNECTOR (2-PIN) |
|
| |
126-5011 |
[1] |
SEAL-CONNECTOR |
|
| |
155-2269 |
|
PLUG AS-CONNECTOR (2-PIN) |
|
| |
155-2270 |
[4] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
|
|
(EACH INCLUDES PLUG AS & WEDGE) |
|
| |
160-7690 |
[1] |
PLUG AS-CONNECTOR (70-PIN) |
|
| |
159-9322 |
[1] |
SEAL-O-RING |
|
| |
155-2260 |
[6] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
|
|
(EACH INCLUDES PLUG AS & WEDGE) |
|
| 6 |
4P-7581 |
[4] |
CLIP (LADDER) |
|
| 7 |
4P-8134 C |
[3] |
CLIP (LADDER) |
|
| 8 |
6V-4369 |
[1] |
CLIP |
|
| 9 |
6V-5217 CM |
[1] |
BOLT (M8X1.25X20-MM) |
|
| 10 |
6V-5839 C |
[5] |
WASHER (11X21X2.5-MM THK) |
|
| 11 |
7I-2272 M |
[2] |
BOLT (M5X0.8X12-MM) |
|
| 12 |
8T-0328 |
[2] |
WASHER-HARD (5.5X10X1-MM THK) |
|
| 13 |
8T-4137 CM |
[1] |
BOLT (M10X1.5X20-MM) |
|
| 14 |
8T-4205 |
[1] |
WASHER-HARD (7.2X14.5X2-MM THK) |
|
| 15 |
8T-5451 M |
[1] |
BOLT (M6X1X12-MM) |
|
| 16 |
9M-1974 |
[1] |
WASHER-HARD (8.8X16X2-MM THK) |
|
| 17 |
101-6603 |
[1] |
CAP (STUD PROTECTOR) |
|
| 18 |
101-3129 M |
[1] |
STUD (M10X1.5-THD) |
|
| 19 |
6V-8212 M |
[1] |
BOLT (M10X1.5X16-MM) |
|
| 20 |
2Y-5829 M |
[1] |
NUT (M10X1.5-THD) |
|
| |
C |
|
CHANGE FROM PREVIOUS TYPE |
|
| |
J |
|
KIT MARKED "J" PROVIDES OIL GRADE PLUGS FOR 0W20, 10W30, AND 15W40 OIL GRADES |
|
| |
M |
|
METRIC PART |
|
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts catalog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
