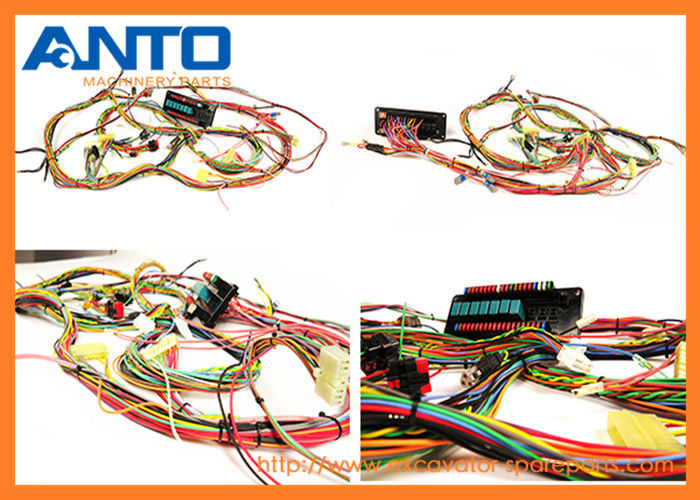

- E320D 312D 320D Excavator Parts 259-5296 Cab Harness Assembly
| Excavator spare parts name |
CHASSISWIRE FUSE BOX HARNESS |
| Equipment Model |
E320D |
| Parts Category |
excavator electronic spare parts |
| Spare parts Condition |
Brand new |
| MOQ of order(PCS, SET) |
1 |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
3S-2093 |
[10] |
STRAP-CABLE |
|
| 2 |
7Y-5505 |
[2] |
SPEAKER AS |
|
| |
|
|
(EACH INCLUDES) |
|
| |
7Y-3951 |
[2] |
TERMINAL-BLADE (14-GA) |
|
| |
7Y-3954 |
[1] |
CONNECTOR-PLUG (3-PIN) |
|
| 3 |
9W-0335 |
[1] |
LIGHTER AS-CIGAR (24-VOLT) |
|
| |
|
|
-OR- |
|
| |
238-2318 |
[1] |
LIGHTER AS-CIGAR (24-VOLT) |
|
| 4 |
094-2080 |
[1] |
SWITCH-MAGNETIC (24-VOLT)(START RELAY) |
|
| 5 |
099-7127 M |
[8] |
SCREW-MACHINE (M4X0.7X12-MM) |
|
| 6 |
102-8016 |
[1] |
RESISTOR AS (BACKUP) |
|
| 7 |
113-8490 |
[20] |
FUSE (10-AMPERE) |
|
| 8 |
113-8491 |
[5] |
FUSE (15-AMPERE) |
|
| 9 |
113-8492 |
[3] |
FUSE (20-AMPERE) |
|
| 10 |
113-8493 |
[3] |
FUSE (25-AMPERE) |
|
| 11 |
116-0210 |
[4] |
BRACKET AS |
|
| 12 |
124-3548 |
[2] |
FUSE (30-AMPERE) |
|
| 13 |
132-1829 Y |
[1] |
ALARM GP (24-VOLT) |
|
| 14 |
141-2759 |
[7] |
FUSE (5-AMPERE) |
|
| 15 |
161-3128 |
[1] |
RELAY (24-VOLT)(BOOM FLOODLIGHT) |
|
| 15A. |
161-3128 |
[1] |
RELAY (24-VOLT)(CHASSIS LIGHT) |
|
| 15B. |
161-3128 |
[1] |
RELAY (24-VOLT)(CAB FLOODLIGHT) |
|
| 15C. |
161-3128 |
[1] |
RELAY (24-VOLT)(HORN) |
|
| 15D. |
161-3128 |
[1] |
RELAY (24-VOLT)(NEUTRAL START) |
|
| 15E. |
161-3128 |
[1] |
RELAY (24-VOLT)(TRAVEL ALARM) |
|
| 16 |
268-1964 |
[1] |
KIT-SERVICE METER |
|
| |
|
|
(INCLUDES FILM & METER) |
|
| 17 |
163-6758 |
[1] |
WIRE AS |
|
| 18 |
163-6795 |
[15] |
STRAP-CABLE |
|
| 19 |
167-3593 |
[1] |
STRAP |
|
| 20 |
170-6888 |
[1] |
PULLER-FUSE |
|
| 21 |
213-0772 |
[1] |
SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY) |
|
| 22 |
227-7575 |
[1] |
PANEL-CONTROL (SWITCH) |
|
| 23 |
234-1097 |
[1] |
BRACKET |
|
| 24 |
238-2212 |
[1] |
SWITCH AS-ROCKER (FINE SWING) |
|
| |
167-3542 |
[1] |
RECEPTACLE-CONNECTOR (5-PIN) |
|
| |
167-3543 |
[5] |
TERMINAL (MALE) |
|
| 26 |
238-2390 |
[1] |
CABLE AS (RED) |
|
| |
3T-4004 |
[1] |
TERMINAL-SOLDER |
|
| |
125-7876 E |
|
TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM) |
|
| 27 |
238-2391 |
[1] |
CABLE AS (PURPLE) |
|
| |
9G-4343 |
[1] |
TERMINAL-RING (4-GA, 1/4-IN SCREW) |
|
| |
125-7876 E |
|
TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM) |
|
| 28 |
245-7760 |
[8] |
INSULATION |
|
| 29 |
251-0637 |
[1] |
INSULATION |
|
| 30 |
259-4883 |
[1] |
ANTENNA AS |
|
| 31 |
259-5290 |
[1] |
BRACKET AS |
|
| 32 |
259-5296 |
[1] |
HARNESS AS-CAB |
|
| |
7Y-3952 |
[4] |
PLUG-CONNECTOR (2-PIN) |
|
| |
7Y-3958 |
[2] |
CONNECTOR-PLUG (6-PIN) |
|
| |
102-7964 |
[2] |
PLUG-CONNECTOR (16-PIN) |
|
| |
111-4816 |
[1] |
PLUG-CONNECTOR (13-PIN) |
|
| |
163-6659 |
[1] |
CONNECTOR-PLUG (12-PIN) |
|
| |
163-6699 |
[1] |
CONNECTOR-PLUG (18-PIN) |
|
| |
163-6803 |
[9] |
PLUG-CONNECTOR (5-PIN) |
|
| |
7Y-3955 |
[2] |
CONNECTOR-RECEPTACLE |
|
| |
121-1168 |
[1] |
CONNECTOR-RECEPTACLE |
|
| |
153-2602 |
[5] |
RECEPTACLE-CONNECTOR (1-PIN) |
|
| |
9W-1951 |
[1] |
RECEPTACLE-CONNECTOR (9-PIN) |
|
| |
8C-6354 |
[1] |
CAP-RECEPTACLE (ET CONNECTOR) |
|
| |
5P-6271 |
[1] |
CONNECTOR AS |
|
| |
134-3296 |
[1] |
HOUSING-PLUG |
|
| |
134-3297 |
[1] |
SEAL |
|
| |
3S-2093 |
[111] |
STRAP-CABLE |
|
| |
121-1022 |
[3] |
DIODE |
|
| |
238-2319 |
[1] |
BASE AS (FUSE, RELAY PANEL) |
|
| |
9X-8256 |
[2] |
WASHER (6.6X12X2-MM THK) |
|
| |
095-0742 M |
[2] |
SCREW-MACHINE (M6X1X16-MM) |
|
| |
170-9394 |
[40] |
TERMINAL |
|
| |
102-8803 |
[3] |
KIT-RECEPTACLE (3-PIN) |
|
| |
|
|
(INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
155-2260 |
[1] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
155-2270 |
[2] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
|
|
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
|
| |
230-4011 |
[1] |
PLUG AS-CONNECTOR (2-PIN) |
|
| |
264-7029 |
[1] |
SEAL-CONNECTOR |
|
| |
230-4013 |
[1] |
PLUG AS-CONNECTOR (3-PIN) |
|
| |
264-7030 |
[1] |
SEAL-CONNECTOR |
|
| |
239-7356 |
[1] |
PLUG AS-CONNECTOR (12-PIN) |
|
| |
230-4009 |
[1] |
PLUG AS-CONNECTOR (12-PIN) |
|
| |
|
|
(EACH PLUG AS INCLUDES) |
|
| |
264-7034 |
[1] |
SEAL-CONNECTOR |
|
| |
174-3016 |
[2] |
PLUG AS-CONNECTOR (3-PIN) |
|
| |
243-4505 |
[2] |
RECEPTACLE AS-CONNECTOR (2-PIN) |
|
| |
243-4506 |
[1] |
RECEPTACLE AS-CONNECTOR (3-PIN) |
|
| 33 |
267-7639 |
[1] |
SWITCH AS-ROCKER (LEVELING) |
|
| |
167-3542 |
[1] |
RECEPTACLE-CONNECTOR (5-PIN) |
|
| |
167-3543 |
[5] |
TERMINAL (MALE) |
|
| 34 |
095-0723 M |
[3] |
SCREW-SPECIAL (M3X0.5X10-MM) |
|
| 35 |
096-5962 |
[3] |
WASHER-HARD (3.4X7X0.8-MM THK) |
|
| 36 |
096-6166 |
[2] |
WASHER-HARD (4.5X9X1-MM THK) |
|
| 37 |
132-5789 |
[7] |
CLIP (LADDER) |
|
| 38 |
4P-7581 |
[1] |
CLIP (LADDER) |
|
| 39 |
5C-2890 M |
[5] |
NUT (M6X1-THD) |
|
| 40 |
6V-5210 M |
[8] |
SCREW-MACHINE (M4X0.7X10-MM) |
|
| 41 |
6V-9672 M |
[2] |
SCREW-MACHINE (M4X0.7X16-MM) |
|
| 42 |
8T-0328 |
[3] |
WASHER-HARD (5.5X10X1-MM THK) |
|
| 43 |
8T-4127 M |
[2] |
SCREW-MACHINE (M5X0.8X20-MM) |
|
| 44 |
8T-6693 M |
[1] |
SCREW-MACHINE (M5X0.8X16-MM) |
|
| 45 |
9X-2042 M |
[13] |
SCREW-TRUSS HEAD (M6X1X12-MM) |
|
| 46 |
9X-2044 M |
[5] |
SCREW-TRUSS HEAD (M6X1X16-MM) |
|
| 47 |
9X-8256 |
[5] |
WASHER (6.6X12X2-MM THK) |
|
| 48 |
101-2846 E |
|
GUARD (9.5-CM) |
|
| 48A. |
101-2846 E |
|
GUARD (9-CM EACH) |
|
| |
E |
|
ORDER BY THE CENTIMETER |
|
| |
M |
|
METRIC PART |
|
| |
Y |
|
SEPARATE ILLUSTRATION |
|
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts catalog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
