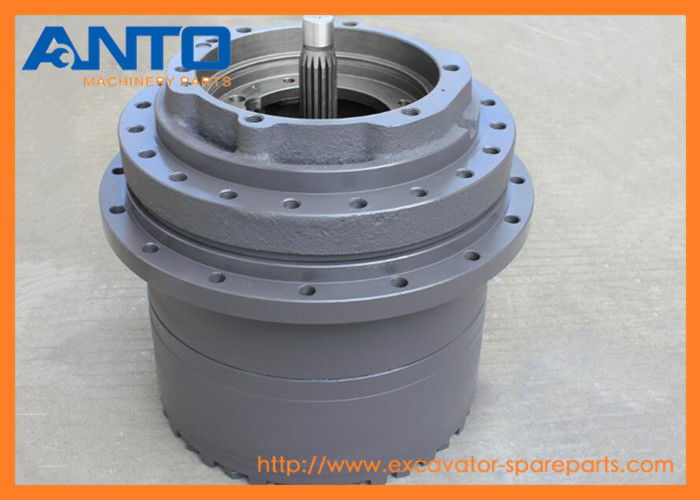

VOE14528258 14528258 VOE14569763 Final Drive Applied To Vo-lvo EC290B Travel Gearbox

VOE14528258 14528258 VOE14569763 Final Drive Applied To Vo-lvo EC290B Travel Gearbox
VOE14528258 14528258 VOE14569763 Final Drive Applied To Vo-lvo EC290B Travel Gearbox

Large Image :  VOE14528258 14528258 VOE14569763 Final Drive Applied To Vo-lvo EC290B Travel Gearbox

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: EC290B
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100-2000
Detailed Product Description
Parts No.: VOE14528258 VOE14569763 Excavator Model: EC290
Excavator Brand: Vo-lvo Packing: Wood Box
Warranty: 3/6 Months Weight: 350 KG
High Light:

final drive parts

,

excavator gearbox



  • VOE14528258 14528258 VOE14569763 Final Drive Applied To Vo-lvo EC290B Travel Gearbox







  • Spec Sheet



Excavator spare parts name Travel reduction gear
Equipment Model EC290B
Parts Category excavator final drive
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days





  • Parts Diagram
VOE14528258 14528258 VOE14569763 Final Drive Applied To Vo-lvo EC290B Travel Gearbox 0. VOE14528258 14528258 VOE14569763 Final Drive Applied To Vo-lvo EC290B Travel Gearbox 1

ENTIRE GROUP Travel gearbox:

VOE14569763[1]-
Gearbox
1.VOE14570930[1]-
Housing
2.VOE14566409[1]-
Gear
3.SA9213-20000[18]-
Spring washer
4.VOE992961[19]-
Hexagon screw
5.VOE14566432[1]-
Cover
6.SA9415-11042[2]-
Plug
7.SA7117-38230[2]-
Bearing
8.VOE14566403[1]-
Retainer
9.VOE14566404[REQ]-
Shim THICK = 0,1 mm
9.VOE14566405[REQ]-
Shim THICK = 0,5 mm
9.VOE14566406[REQ]-
Shim THICK = 0,7 mm
9.VOE14566407[REQ]-
Shim THICK = 0,8 mm
9.VOE14566408[REQ]-
Shim THICK = 1,0 mm
10.VOE984088[20]-
Hex. socket screw
11.VOE14566410[1]-
Planet carrier
12.VOE14566411[1]-
Planet carrier
13.VOE14566415[5]-
Pin
14.VOE14566413[4]-
Planetary gear
15.VOE14566414[8]-
Washer
16.SA9325-06012[4]-
Spring pin
17.SA8230-21020[1]-
Thrust ring
18.VOE14566412[4]-
Needle bearing
19.VOE14566416[1]-
Gear
20.VOE14566418[1]-
Planet carrier
21.VOE14566423[3]-
Pin
22.VOE14566419[1]-
Planet carrier
23.VOE14566421[3]-
Planetary gear
24.VOE14566422[6]-
Washer
25.SA9325-06012[3]-
Spring pin
26.VOE14566420[3]-
Needle bearing
27.VOE14566433[1]-
Thrust washer
28.VOE14566424[1]-
Gear
29.VOE14570931[1]-
Planet carrier
29.VOE14570933[3]-
Gear
29.VOE14566427[3]-
Needle bearing
29.VOE14566429[6]-
Washer
29.VOE14566430[3]-
Pin
29.SA9325-06012[3]-
Spring pin
29.VOE14569232[1]-
Ring
30.VOE14566417[1]-
Ring
31.VOE14570934[1]-
Gear
32.VOE990557[2]-
O-ring
33.VOE950677[2]-
Pin
34.VOE914467[1]-
Retaining ring
35.VOE14579901[1]-
Sealing

VOE14528258[1]-
Travel Gearbox
1.SA7117-38221[1]-
Housing SER NO 10001-10928
VOE14521858[1]-
Housing SER NO 10929-11467
VOE14522896[1]-
Housing SER NO 11468-
2.SA7117-38230[2]-
Bearing
3.SA7117-38240[1]-
Seal SER NO 10001-11467
VOE14522998[1]-
Sealing SER NO 11468-
4.SA7117-38251[1]-
Nut SER NO 10001-12345
VOE14528319[1]-
Nut SER NO 12346-
5.SA1036-00300[1]-
Ring
6.SA7117-38271[4]-
Planet gear
7.SA7117-38520[4]-
Needle bearing
8.SA7117-38301[4]-
Pin
9.SA7117-38311[1]-
Gear SER NO 10001-11311
VOE14522897[1]-
Gear SER NO 11312-
10.SA9016-21620[20]-
Hex. socket screw
11.SA7117-38210[1]-
Carrier
12.SA7117-34320[6]-
Washer
13.SA7117-38320[1]-
Planet carrier
14.SA7117-38330[1]-
Gear
15.SA7117-38340[1]-
Ring
16.SA7117-38350[3]-
Planetary Gear
17.SA7117-38360[3]-
Needle bearing
18.SA7117-38380[1]-
Pin
19.SA9325-06012[3]-
Spring pin
20.SA1036-00290[1]-
Thrust ring
21.SA7117-38371[1]-
Gear
22.VOE14551156[1]-
Planet carrier
23.SA7117-38180[1]-
Pin
24.SA7117-38391[1]-
Planet carrier
25.SA7117-38400[1]-
Gear
26.SA7117-38410[1]-
Ring
27.SA7117-38420[3]-
Needle Bearing
28. [3]-
Planetary Gear
29.VOE14556489[1]-
Washer
30.VOE14556490[1]-
Washer
31.SA9325-06012[3]-
Spring pin
32.SA9541-01040[3]-
Ring
33.VOE914467[1]-
Retaining ring
34.SA7117-38190[1]-
Cover SER NO 10001-10255
VOE14517931[1]-
Cover SER NO 10256-11311
VOE14601855[1]-
Cover SER NO 11312-
35.VOE967631[16]-
Hex. socket screw SER NO 10001-11311
VOE983252[16]-
Hexagon screw SER NO 11312-
36.SA9415-43042[3]-
Plug SER NO 10001-10255
SA9415-11052[3]-
Plug SER NO 10256-
37.SA7117-38460[4]-
Inner ring
38.SA7117-38470[8]-
Washer
39.SA9023-10803[2]-
Set screw SER NO 10001-12345
VOE14526459[2]-
Screw SER NO 12346-
40.SA1146-06870[2]-
Pad SER NO 10001-12345
41.SA9325-06012[4]-
Spring pin
42.SA9511-12024[3]-
O-ring SER NO 10256-
43.VOE955922[16]-
Spring washer SER NO 11312







  • Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.



  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
