267-6799 169-5593 227-6119 Excavator Final Drive Planetary Carrier For CAT 322C 324D 325C 325D 329D

I appreciate the help from Paul, he's prefessional and knows exactly what parts I need. My CAT has gone back to work without any problem.

—— Raphael

Got the final drive and its beautiful I think. We've have it assembled in our Hitachi ZX330 excavator, my machines goes to work again now. Many thanks

—— Kevin

I'm Online Chat Now

267-6799 169-5593 227-6119 Excavator Final Drive Planetary Carrier For CAT 322C 324D 325C 325D 329D

China 267-6799 169-5593 227-6119 Excavator Final Drive Planetary Carrier For CAT 322C 324D 325C 325D 329D supplier
267-6799 169-5593 227-6119 Excavator Final Drive Planetary Carrier For CAT 322C 324D 325C 325D 329D supplier 267-6799 169-5593 227-6119 Excavator Final Drive Planetary Carrier For CAT 322C 324D 325C 325D 329D supplier 267-6799 169-5593 227-6119 Excavator Final Drive Planetary Carrier For CAT 322C 324D 325C 325D 329D supplier

Large Image :  267-6799 169-5593 227-6119 Excavator Final Drive Planetary Carrier For CAT 322C 324D 325C 325D 329D

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: CAT 322C 324D 325C 325D 329D

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Excavator Final Drive Parts Excavator Model: CAT 322C 324D 325C 325D 329D
Parts No.: 267-6799 169-5593 227-6119 Material: Forged Iron, Steel
Parts Name: Carrier No.3 Package: Standard Export Carton

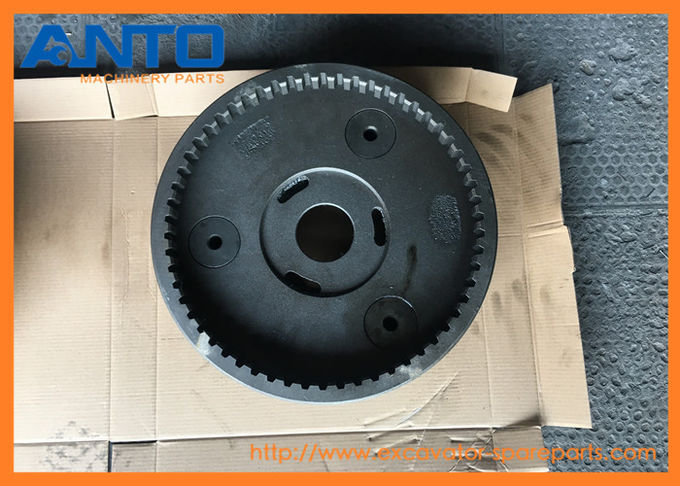

  • 267-6799 169-5593 227-6119 Planetary Carrier AS Used For CAT 322C 324D 325C 325D 329D Excavator Final Drive





  • Application



The planetary carrier assembly could be applied to below models:



320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN



267-6799 169-5593 227-6119 Excavator Final Drive Planetary Carrier For CAT 322C 324D 325C 325D 329D

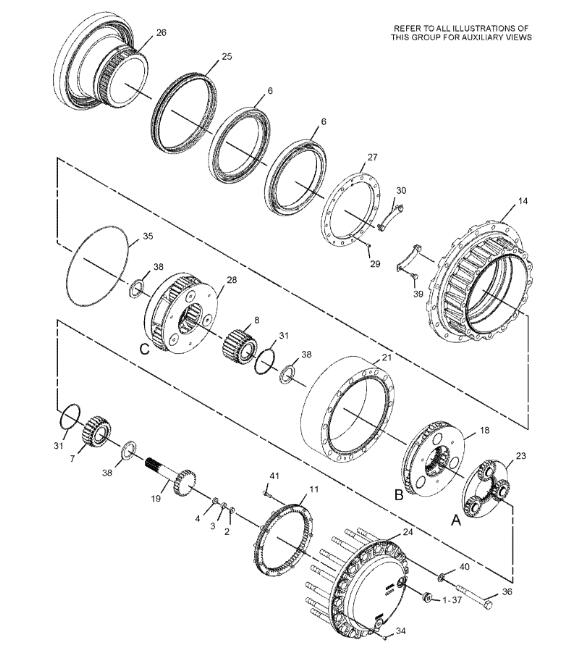

  • Parts Diagram



267-6799 169-5593 227-6119 Excavator Final Drive Planetary Carrier For CAT 322C 324D 325C 325D 329D


1.3E-2338[2] -
PLUG-PIPE
2.094-0578[1] -
PLATE (8-MM THK)
3.094-0579[1] -
PLATE (9-MM THK)
4.094-0580[1] -
PLATE (10-MM THK)
5.094-1528 M[12] -
WASHER (53X84X1-MM THK)
6.168-8452 J[2] -
BALL BEARING
7.169-5589[1] -
GEAR-SUN (24-TEETH)
8.169-5590[1] -
GEAR-SUN (24-TEETH)
9.169-5592[3] -
GEAR-PLANETARY (23-TEETH)
10.169-5593[3] -
GEAR-PLANETARY (23-TEETH)
11.169-5594[1] -
GEAR-RING (65-TEETH) .
12.169-5601[3] -
SHAFT-PLANETARY
13.169-5602[3] -
SHAFT-PLANETARY
14.169-5608 J[1] -
HOUSING .
15.171-9297[6] -
WASHER (34.3X62X1-MM THK)
16.191-2569[3] -
BEARING AS (CAGED ROLLER)
17.191-2570[6] -
BEARING AS (CAGED ROLLER)
18.191-2571[1] -
CARRIER-PLANETARY .
19.191-2674[1] -
GEAR-SUN (25-TEETH) .
20.191-2675[3] -
GEAR-PLANETARY (20-TEETH)
21.191-2676[1] -
GEAR-RING (72-TEETH)
22.191-2677[3] -
BEARING AS (CAGED ROLLER)
23.191-2678[1] -
CARRIER AS .
24.199-4503[1] -
COVER .
25.207-1571 J[1] -
SEAL GP-DUO-CONE
214-3570[2] -
RING-TORIC .
26.227-6117 J[1] -
HOUSING-MOTOR .
27.227-6118 J[1] -
RETAINER .
28.227-6119[1] -
CARRIER-PLANETARY .
29.227-6123 J[2] -
DOWEL .
30.227-6124 J[2] -
PLATE-WASHER
31.093-1731[2] -
RING-RETAINING
32.095-0891[6] -
PIN-SPRING
33.096-0433[3] -
RING-RETAINING
34.096-3216 M[2] -
SETSCREW-SOCKET (M12X1.75X12-MM)
35.171-9298[1] -
SEAL-O-RING
36.179-8733 M[16] -
BOLT (M20X2.5X170-MM) .
37.7M-8485[2] -
SEAL-O-RING
38.7Y-0595[3] -
SPACER (58X79.6X6-MM THK)
39.8T-0293 JM[4] -
BOLT (M12X1.75X20-MM)
40.8T-4123[16] -
WASHER (3.62X5.75X0.375-MM THK)
41.9X-6032 M[12] -
BOLT-SOCKET HEAD (M10X1.5X30-MM)


  • Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.



  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX



Contact Details
Guangzhou Anto Machinery Parts Co.,Ltd.

Contact Person: Paul Cheng

Send your inquiry directly to us (0 / 3000)
