VOE14599945 14599945 Sun Gear For Vo-lvo EC250D EC300D Excavator Travel Reducer

I appreciate the help from Paul, he's prefessional and knows exactly what parts I need. My CAT has gone back to work without any problem.

—— Raphael

Got the final drive and its beautiful I think. We've have it assembled in our Hitachi ZX330 excavator, my machines goes to work again now. Many thanks

—— Kevin

Fast shippment, the arrived parts is good quality, our engine is repaired and is perfectly running at maximum power. Thank you, god bless.

—— Mohammed

I'm Online Chat Now

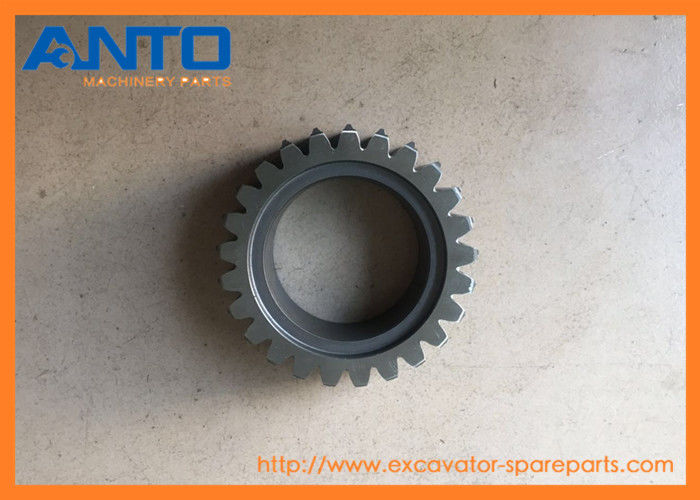

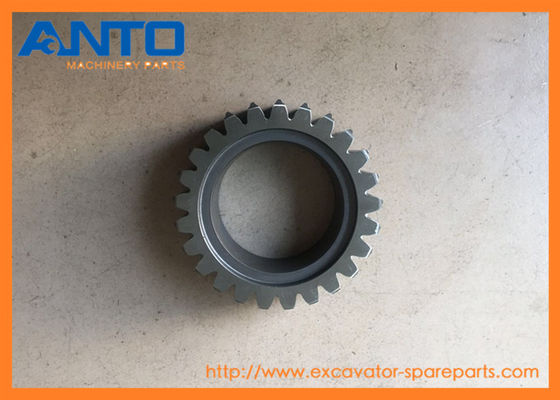

VOE14599945 14599945 Sun Gear For Vo-lvo EC250D EC300D Excavator Travel Reducer

VOE14599945 14599945 Sun Gear For Vo-lvo EC250D EC300D Excavator Travel Reducer
VOE14599945 14599945 Sun Gear For Vo-lvo EC250D EC300D Excavator Travel Reducer

Large Image :  VOE14599945 14599945 Sun Gear For Vo-lvo EC250D EC300D Excavator Travel Reducer

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: VOE14599945 14599945
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100-2000
Detailed Product Description
Product Name: Sun Gear Excavator Model: EC250D EC300D
Parts Number: VOE14599945 14599945 Warranty: 6 Months
Category: Excavator Travel Gearbox Packing: Standard Wooden Box
High Light:

final drive

,

excavator gearbox

  • VOE14599945 14599945 Sun Gear Applied To Vo-lvo EC250D EC300D Excavator Travel Reducer



  • Spec Sheet



Spare Parts Description Sun gear
Parts No. VOE14599945 14599945
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days




  • Application

EC250D EC250E EC300D EC300E Vo-lvo.Heavy





  • Parts Diagram

VOE14599945 14599945 Sun Gear For Vo-lvo EC250D EC300D Excavator Travel Reducer 0

Pos. Part No Qty Parts name Comments
  VOE14599921 [1] Travel gearbox
1 VOE14599922 [1] Housing
2 VOE14599932 [1] Gear
3 SA14599923 [2] Bearing
4 VOE14599927 [1] Shim THICK = 0,6 MM
4 VOE14599928 [1] Shim THICK = 0,8 MM
4 VOE14599929 [1] Shim THICK = 1,0 MM
4 VOE14599930 [1] Shim THICK = 0,7 MM
4 VOE14599931 [1] Shim THICK = 0,9 MM
4 VOE14607977 [1] Shim THICK = 1,1 MM
5 VOE14599926 [1] Retainer
6 VOE14599933 [1] Planet carrier
7 None14599934 [1] Carrier
8 VOE14566415 [4] Pin
9 VOE14599935 [4] Planetary Gear
10 VOE14566414 [8] Washer
11 SA9325-06012 [4] Spring pin
12 SA1036-00300 [1] Ring
13 VOE14566412 [4] Needle bearing
14 VOE983919 [16] Hex. socket screw
15 VOE14599938 [1] Gear
16 VOE14599939 [0001] Planet carrier
17 VOE14599944 [3] Pin
18 None14599940 [1] Carrier
19 VOE14599941 [3] Planetary Gear
20 VOE14599943 [6] Washer
21 SA9325-06012 [3] Spring pin
22 VOE14599942 [3] Needle Bearing
23 VOE14566433 [1] Thrust washer
24 VOE14599945 [1] Gear
25 VOE14599946 [1] Planet carrier
26 None14599947 [1] Carrier
27 VOE14599948 [3] Planetary Gear
28 VOE14599950 [6] Washer
29 VOE14599951 [3] Pin
30 VOE951955 [3] Spring pin
31 VOE14599949 [3] Needle Bearing
32 VOE14569232 [1] Ring
33 VOE14566417 [1] Ring
34 VOE14599952 [1] Gear
35 VOE9541-01038 [1] Snap Ring
36 VOE14599953 [1] Cover
37 VOE982211 [18] Hexagon screw
38 SA9213-20000 [18] Spring washer
39 VOE14883847 [2] Plug
40 VOE990557 [2] O-ring
41 VOE9324-21617 [4] Pin
42 VOE14599925 [1] Seal


VOE14599945 14599945 Sun Gear For Vo-lvo EC250D EC300D Excavator Travel Reducer 1



  • Description


The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.


  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
