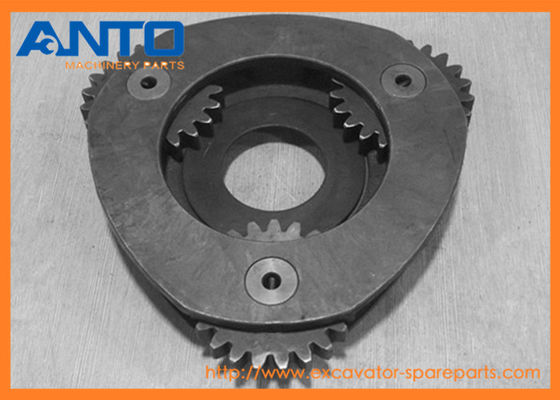

1019147 2034836 2034835 2034834 Travel Device Carrier for Hitachi EX200-5 Excavator

1019147 2034836 2034835 2034834 Travel Device Carrier for Hitachi EX200-5 Excavator
1019147 2034836 2034835 2034834 Travel Device Carrier for Hitachi EX200-5 Excavator

Large Image :  1019147 2034836 2034835 2034834 Travel Device Carrier for Hitachi EX200-5 Excavator

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: EX200-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Detailed Product Description
Category: Excavator Drive Gear Parts Excavator Model: EX200-5 Hitachi
Parts No.: 1019147 2034836 2034835 2034834 Material: Forged Iron, Steel
Warranty: 3 Months Package: Standard Export Carton
High Light:

final drive parts

,

final drive



  • Travel Device Carrier 1019147 2034836 2034835 2034834 Apply To Hitachi EX200-5 Excavator





  • Spec Sheet



PARTS NAME  EX200-5 Track carrier
EQUIPMENT EX200-5 Excavator
Category Excavator track drive
ITEM CONDITION New
Application Replacement
MATERIAL Steel
PROCESSING Casting
MOQ 1 pcs





  • Parts Diagram

1019147 2034836 2034835 2034834 Travel Device Carrier for Hitachi EX200-5 Excavator 0

ENTIRE GROUP TRAVEL DEVICE:

00-48.(9132405)[2] -
TRAVEL DEVICE ASS'Y (for transportation)
00-48.9119377 I[2] -
TRAVEL DEVICE ASS'Y 9132405 (for assembly of machine)
00.(9131678)[1] -
MOTOR;OIL (for transportation)
00.9120000 I[1] -
MOTOR;OIL 9131678 (for assembly of machine)
02.4114753[1] -
SEAL;GROUP
03.4246793[2] -
BRG.;ROL.
04.1018736[1] -
DRUM
05.1018740[1] -
SPROCKET
06.J932055[16] -
BOLT
07.A590920[16] -
WASHER;SPRING
08.3047448[1] -
HUB
09.3057125[1] -
NUT
10.4246783[1] -
PIN;KNOCK
12.1019147[1] -
CARRIER
13.3063957[3] -
GEAR;PLANETARY
14.4317122[6] -
BRG.;NEEDLE
15.4284521[6] -
PLATE;THRUST
16.4315838[3] -
PIN
17.4116309[3] -
PIN;SPRING
18.3063959[1] -
GEAR;SUN
20.1018789[1] -
GEAR;RING
21.J931640[24] -
BOLT
23.2034836[1] -
CARRIER
24.4192979[2] -
SPACER
25.3063956[3] -
GEAR;PLANETARY
26.4317121[3] -
BRG.;NEEDLE
27.4210851[6] -
PLATE;THRUST
28.4309995[3] -
PIN
29.4192020[3] -
PIN;SPRING
30.3063958[1] -
GEAR;SUN
32.2034835[1] -
CARRIER
33.3063955[3] -
GEAR;PLANETARY
34.4317120[3] -
BRG.;NEEDLE
35.4192910[6] -
PLATE;THRUST
36.4210853[3] -
PIN
37.4173093[3] -
PIN;SPRING
38.2034834[1] -
SHAFT;PROP.
40.2034833[1] -
COVER
41.4285323[1] -
PIN;STOPPER
42.J011230[12] -
BOLT;SEMS
43.4245797[3] -
PLUG
47.M492564[2] -
SCREW;DRIVE
48.3053559[1] -
NAME-PLATE
132.4248607[28] -
BOLT
133.4018545[28] -
WASHER





  • Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.





  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
