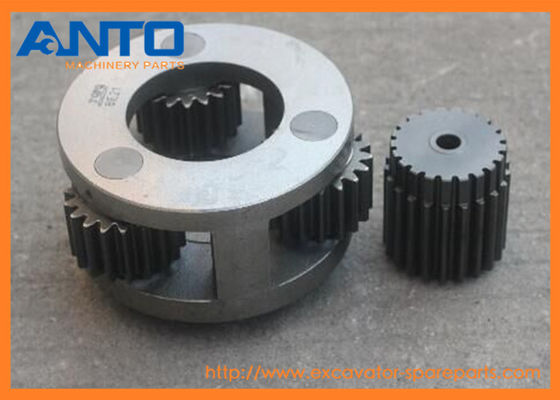

2031037 2031036 2030269 1015182 Swing Carrier Used For Hitachi EX60-2 EX75-3 Swing Device Parts

2031037 2031036 2030269 1015182 Swing Carrier Used For Hitachi EX60-2 EX75-3 Swing Device Parts
2031037 2031036 2030269 1015182 Swing Carrier Used For Hitachi EX60-2 EX75-3 Swing Device Parts

Large Image :  2031037 2031036 2030269 1015182 Swing Carrier Used For Hitachi EX60-2 EX75-3 Swing Device Parts

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: EX60-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Detailed Product Description
Category: Excavator Swing Drive Parts Excavator Model: EX60-2
Parts No.: 2031037 2031036 2030269 1015182 Material: Forged Iron, Steel
Warranty: 6 Months Package: Standard Export Carton
High Light:

swing reduction gear

,

swing gear box



  • EX60-2 Swing Device Planetary Carrier 2031037 2031036 2030269 1015182 Applied To Hitachi Excavator Swing Gear





  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .



  • Spec Sheet



Excavator spare parts name Swing reducer
Equipment Model EX60-2 EX60-3 EX75
Parts Category excavator swing gear
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days





  • Parts Diagram

2031037 2031036 2030269 1015182 Swing Carrier Used For Hitachi EX60-2 EX75-3 Swing Device Parts 0



ENTIRE GROUP SWING DEVICE:

00.J021035[8] -
BOLT;SEMS .
01.2030269[1] -
SHAFT;PROP.
02.3051675[1] -
SLEEVE
03.A811060[1] -
O-RING
04.4260666[1] -
BRG.;SPH.ROL.
05.4259935[1] -
SEAL;OIL
06.3051676[1] -
COVER
07.4260028[2] -
O-RING
10.4274179[1] -
BRG.;SPH.ROL.
11.1015181[1] -
HOUSING
13.960323[1] -
RING;RETAINING
14.1015182[1] -
GEAR;RING
16.2031037[1] -
CARRIER
17.4176070[2] -
PLATE;THRUST
18.9735359[3] -
GEAR;PLANETARY
19.4267081[6] -
PLATE;THRUST
20.J011235[16] -
BOLT;SEMS
21.4259937[3] -
PIN
22.4139939[6] -
PIN;SPRING
23.3051678[1] -
GEAR;SUN
24.2031036[1] -
CARRIER
25.3051679[3] -
GEAR;PLANETARY
26.4259938[3] -
BRG.;NEEDLE
27.4259939[3] -
PIN
28.3051680[1] -
GEAR;SUN
30.4270468[6] -
PLATE;THRUST
35.8050351[1] -
PIPE
36.94-2012[1] -
PLUG
37.3063597[1] -
COVER (for transportation)
38.94-2011[1] -
PLUG (for transportation)
39.J011035[8] -
BOLT;SEMS (for transportation)
40.4295829[1] -
O-RING (for transportation)
100.M341036[8] -
BOLT;SOCKET
106.3053451[1] -
GAUGE;LEVEL
108.4272301[1] -
PLATE
109.4255227[1] -
PIPE
110.4255226[1] -
CAP
111.4272670[1] -
MOTOR;OIL
112.4295829[1] -
O-RING
113.3053093[1] -
NAME-PLATE
114.M492564[2] -
SCREW;DRIVE
115.4259940[1] -
PIPE
227.J931650[10] -
BOLT
228.J222016[10] -
WASHER
300.9118328[1] -
SWING DEVICE(WITHOUT MOTOR)



  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* rust



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
