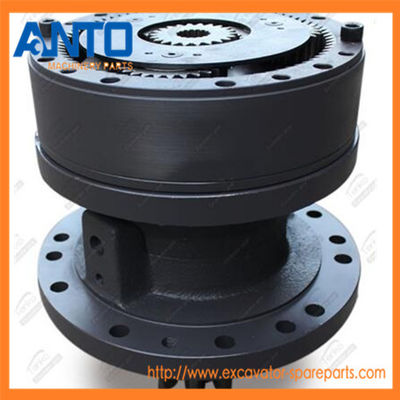

RG04S-152-05 31N4-10140 31N4-10141 Excavator Swing Reduction Gear Used For Hyundai R110-7 R140-7

I appreciate the help from Paul, he's prefessional and knows exactly what parts I need. My CAT has gone back to work without any problem.

—— Raphael

Got the final drive and its beautiful I think. We've have it assembled in our Hitachi ZX330 excavator, my machines goes to work again now. Many thanks

—— Kevin

Fast shippment, the arrived parts is good quality, our engine is repaired and is perfectly running at maximum power. Thank you, god bless.

—— Mohammed

I'm Online Chat Now

RG04S-152-05 31N4-10140 31N4-10141 Excavator Swing Reduction Gear Used For Hyundai R110-7 R140-7

RG04S-152-05 31N4-10140 31N4-10141 Excavator Swing Reduction Gear Used For Hyundai R110-7 R140-7
RG04S-152-05 31N4-10140 31N4-10141 Excavator Swing Reduction Gear Used For Hyundai R110-7 R140-7

Large Image :  RG04S-152-05 31N4-10140 31N4-10141 Excavator Swing Reduction Gear Used For Hyundai R110-7 R140-7

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: R130 R110-7 R140-7
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100-2000
Detailed Product Description
Parts No.: 31N4-10140 31N4-10141 Parts Name: Swing Gearbox
Excavator Brand: Hyundai Packing: Wood Box
Warranty: 3/6 Months Weight: 60KG
High Light:

swing reduction gear

,

swing bearing



  • RG04S-152-05 31N4-10140 31N4-10141 Excavator Swing Reduction Gear Used For Hyundai R110-7 R140-7




  • Description


The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .


  • Spec Sheet



Excavator spare parts nameSwing reducer
Equipment ModelR110-7 R140-7
Parts Categoryexcavator swing gear
Spare parts ConditionBrand new
MOQ of order(PCS, SET)1
Parts AvailabilityIn stock
Delivery Lead time1-3 days




  • Parts Diagram



* SWING MOTOR ASSY1
*-231N4-10140SWING REDUCTION GEAR1
*-231N4-10141SWING REDUCTION GEAR1
1XKAQ-00134CASING1
1XKAQ-00332CASING1
2XKAQ-00249SHAFT-DRIVE1
3XKAQ-00102GEAR-RING1
5XKAQ-00100GEAR-SUN NO.21
*-21XKAQ-00271CARRIER NO.1 ASSY1
6XKAQ-00099GEAR-PLANET NO.13
7XKAQ-00098SUN-GEAR NO.11
9XKAQ-00096CARRIER NO.11
11XKAQ-00094PIN ASSY NO.13
12XKAQ-00093WASHER-THRUST(B)6
13XKAQ-00092WASHER-THRUST(A)1
23XKAQ-00086PIN-SPRING3
24XKAQ-00085RING-STOP4
29XKAQ-00080CAGE-NEEDLE3
*-22XKAQ-00272CARRIER NO.2 ASSY1
4XKAQ-00101GEAR-PLANET NO.24
8XKAQ-00097CARRIER NO.21
10XKAQ-00095PIN ASSY NO.24
12XKAQ-00093WASHER-THRUST(B)4
23XKAQ-00086PIN-SPRING4
16XKAQ-00091PIN-KNOCK2
17XKAQ-00090BEARING-SPH ROLLER1
18XKAQ-00089BEARING-CYL ROLLER1
19XKAQ-00088BOLT-SOCKET10
20XKAQ-00087SEAL-OIL1
21XKAQ-00049PLUG-PRESSURE1
22XKAQ-00066PLUG2
25XKAQ-00084RING-STOP1
26XKAQ-00083SPACER1
27XKAQ-00082PLATE-COVER1
28XKAQ-00081BOLT-HEX6
31XKAQ-00333CAP-RUBBER4




  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* rust


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
