SA7118-30100 VOE14541069 Excavator Swing Gearbox Used For Volvo EC210B EC210 EC235C EC220D

China SA7118-30100 VOE14541069 Excavator Swing Gearbox Used For Volvo EC210B EC210 EC235C EC220D supplier

Large Image :  SA7118-30100 VOE14541069 Excavator Swing Gearbox Used For Volvo EC210B EC210 EC235C EC220D

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: EC210

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Parts No.: SA7118-30100 VOE14541069 Excavator Model: EC210B
Excavator Brand: Volvo Packing: Wood Box
Warranty: 3/6 Months Weight: 180KG



  • Swing Reduction Gearbox SA7118-30100 VOE14541069 Fit For Volvo EC210B EC210C EC235C EC220D EC200B



  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.



  • Spec Sheet



Excavator spare parts name Swing reducer
Equipment Model EC210 EC210B EC210C EC235 EC220D
Parts Category excavator swing gear
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days

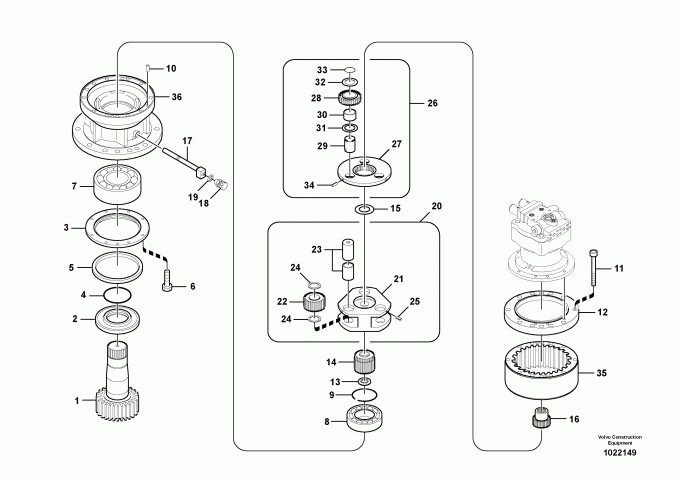

  • Parts DiagramSA7118-30100 VOE14541069 Excavator Swing Gearbox Used For Volvo EC210B EC210 EC235C EC220D

ENTIRE GROUP Swing gearbox:

VOE14541069[1]-
Swing gearbox
1.VOE14528929[1]-
Shaft
2.VOE14540405[1]-
Collar
3.VOE14509281[1]-
Cover
4.VOE990596[1]-
O-ring
5.VOE14508911[1]-
Sealing
6.SA9011-11007[10]-
Bolt
7.SA7118-01740[1]-
Roller bearing
8.SA7118-00040[1]-
Roller bearing
9.SA9541-01090[1]-
Retaining ring
10.SA9324-21617[4]-
Pin
11.VOE984363[12]-
Hex. socket screw
12.SA7118-30370[1]-
Plate
13.SA7118-30380[1]-
Thrust ring
14.SA7118-30390[1]-
Gear
15.SA7118-30480[1]-
Washer
16.SA7118-30490[1]-
Sun gear
17.VOE14540733[1]-
Pipe
18.VOE14521728[1]-
Valve
19.SA9426-20090[1]-
Gasket
20.SA7118-30200[1]-
Planet carrier No.2
21.SA7118-30210[1]-
Planet carrier
22.SA7118-30220[3]-
Planetary Gear
23.SA7118-30230[3]-
Pin
24.SA7118-30260[6]-
Washer
25.SA9325-08010[3]-
Spring pin
26.VOE14528725[1]-
Planet carrier No.1
27.SA7118-30410[1]-
Planet carrier
28.SA7118-30420[3]-
Planetary gear
29.VOE14528726[3]-
Pin
30.VOE14550879[3]-
Needle bearing
31.SA7118-30450[3]-
Washer
32.SA7118-30460[3]-
Washer
33.SA9541-01042[3]-
Ring
34.SA9325-08010[3]-
Spring pin
35.SA7118-30350[1]-
Ring gear
36.SA7118-30340[1]-
Case
10.VOE14526214[1]-
Overhaul kit

  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* rust



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
