9244944 9281920 9281921 9256991 Excavator Final Drive Applied To Hitachi ZX330-3 ZX350-3 Travel Device

China 9244944 9281920 9281921 9256991 Excavator Final Drive Applied To Hitachi ZX330-3 ZX350-3 Travel Device supplier
9244944 9281920 9281921 9256991 Excavator Final Drive Applied To Hitachi ZX330-3 ZX350-3 Travel Device supplier 9244944 9281920 9281921 9256991 Excavator Final Drive Applied To Hitachi ZX330-3 ZX350-3 Travel Device supplier

Large Image :  9244944 9281920 9281921 9256991 Excavator Final Drive Applied To Hitachi ZX330-3 ZX350-3 Travel Device

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: ZX330-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Excavator Final Drive Excavator Type: Crawler Excavator
Parts No.: 9281921 9281920 9244944 9256991 Weight: 350 KG
Packing: Wood Box, Standard Carton, Pallet Warranty: 6 Months



  • 9244944 9281920 9281921 9256991 Excavator Final Drive Applied To Hitachi ZX330-3 ZX350-3 Travel Device





  • Spec Sheet



Excavator spare parts name Travel reduction gear
Equipment Model ZX330-3G ZX350-3G
Parts Category excavator final drive
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days





  • Application



EXCAVATOR ZX290L-5G . ZX330-3 . ZX330-3-HCMC . ZX330-3F . ZX330-3G . ZX330-5G . ZX330LC-3G . ZX330LC-5G . ZX350-3-AMS . ZX350H-3 . ZX350H-3F . ZX350H-3G . ZX350H-5G . ZX350K-3 . ZX350K-3F . ZX350K-3G . ZX350K-5G . ZX350LC-3-HCME . ZX350LC-3F-HCME . ZX350LC-3FAMS . ZX350LC-5B . ZX350LCH-3G . ZX350LCH-5G . ZX350LCK-3G . ZX350LCK-5G . ZX350LCN-3FAMS . ZX350LCN-3FHCME . ZX350LCN-5B . ZX360H-3G . ZX400LCH-3 . Hitachi

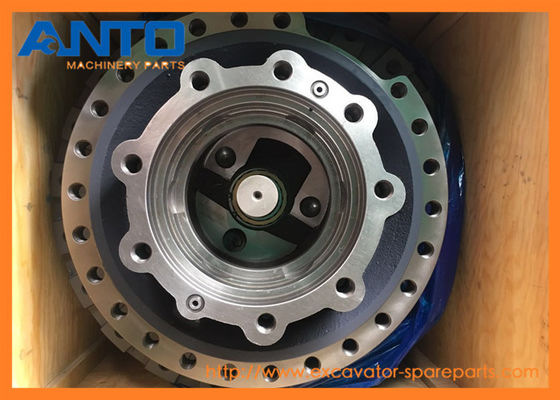

  • Product Photos



9244944 9281920 9281921 9256991 Excavator Final Drive Applied To Hitachi ZX330-3 ZX350-3 Travel Device





  • Parts Diagram

9244944 9281920 9281921 9256991 Excavator Final Drive Applied To Hitachi ZX330-3 ZX350-3 Travel Device

ENTIRE GROUP TRAVEL DEVICE:

9281920 I[1] -
TRAVEL DEVICE 9281921 <for assembly of machine> .
9281921[1] -
TRAVEL DEVICE <for transportation> .
00.9281841 I[1] -
MOTOR;OIL 9281842 <for assembly of machine> .
00.9281842[1] -
MOTOR;OIL <for transportation> .
03.4066695 Y[1] -
SEAL;GROUP 4664392
03.4664392[1] -
SEAL;GROUP .
04.4629674[2] -
BRG.;ROL. .
05.1033164[1] -
DRUM
06.1033163[1] -
SPROCKET
07.A590922[22] -
WASHER;SPRING
08.J932265[22] -
BOLT .
10.3094717[1] -
NUT
11.4470326[1] -
PLATE;LOCK .
12.J901225[2] -
BOLT .
14.1032599[1] -
CARRIER
15.4621530[3] -
SPACER .
16.3103555[4] -
GEAR;PLANETARY .
17.4628768[8] -
BRG.;NEEDLE .
18.4269470[8] -
PLATE;THRUST .
19.4269452[4] -
PIN .
20.4207947[4] -
PIN;SPRING .
21.3103554[1] -
GEAR;SUN .
23.1032600[1] -
GEAR;RING .
24.J931640[34] -
BOLT .
26.1032598[1] -
CARRIER .
27.3103553[3] -
GEAR;PLANETARY .
28.4628766[3] -
BRG.;NEEDLE .
29.4284521[6] -
PLATE;THRUST .
30.4269451[3] -
PIN .
31.4197763[3] -
PIN;SPRING .
32.3103552[1] -
GEAR;SUN .
34.1032597[1] -
CARRIER .
36.3103551[3] -
GEAR;PLANETARY .
37.4455098[3] -
BRG.;NEEDLE .
38.4642993[6] -
PLATE;THRUST .
39.4269472[3] -
PIN .
40.4192020[3] -
PIN;SPRING .
41.2051884[1] -
SHAFT;PROP. .
43.1032596[1] -
COVER .
44.4277474[1] -
PIN;STOPPER .
45.4278168[1] -
BRG.;BALL
46.930451[1] -
RING;RETAINING
47.4609016 Y[20] -
BOLT;SEMS 4699148 .
47.4699148[20] -
BOLT;SEMS .
48.4245797[3] -
PLUG .
51.+++++++[1] -
NAME-PLATE
52.M492564[2] -
SCREW;DRIVE


  • Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.



  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
