Product Details:
Payment & Shipping Terms:
|
| Model Number: | HM350 HM400 WA500 PC800 | Engine Model: | SAA6D140E-5 |
|---|---|---|---|
| Part Number: | 6261-71-1111 6261-71-1110 ND094100-0472 | Product Name: | Fuel Supply Pump |
| Lead Time: | 1-3 Days For Delivery | Packing: | Standard Export Carton |
| High Light: | 6D140E-5 Fuel Injection Pump,6261-71-1110 Fuel Injection Pump,ND094100-0472 Fuel Injection Pump |
||
| Category | KOMATSU Engine parts |

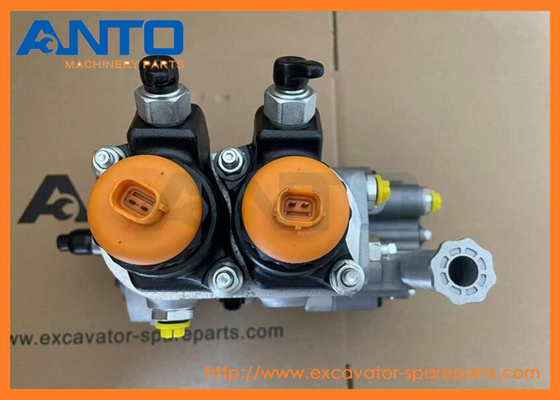

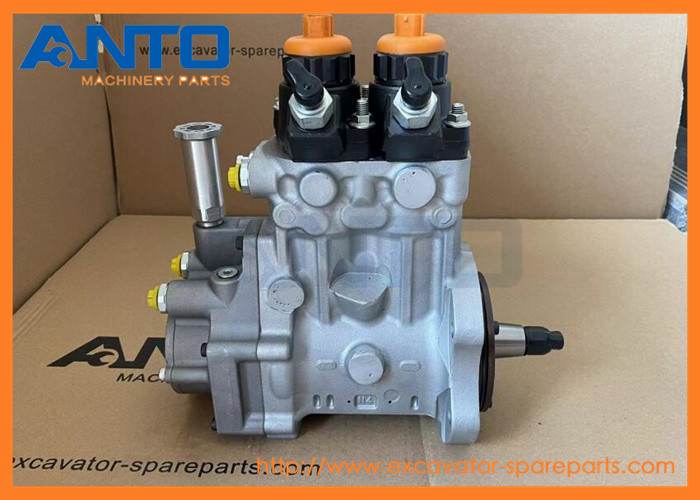

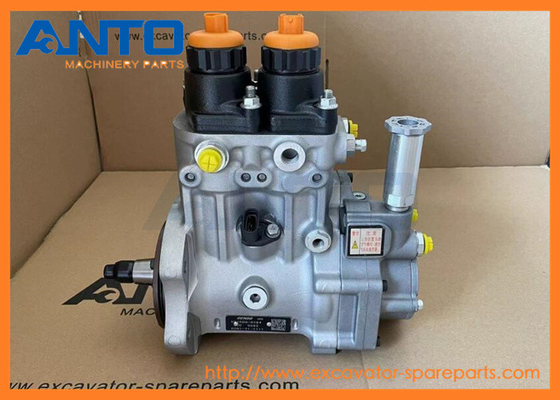

| Name | Fuel injection supply pump |
| Parts No | 6261-71-1111 6261-71-1110 ND094100-0472 |
| Machine Model | HM350 HM400 WA500 PC800 |
| Engine model | SAA6D140E-5 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
DUMP TRUCKS HM350 HM400
WHEEL LOADERS WA500 Komatsu
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6261-71-3220 | [1] | GEAR,PUMP DRIVE Komatsu China | |
| ["SN: 530001-UP"] | ||||
| 2 | 04010-00519 | [1] | KEY,WOODRUFF Komatsu | 0.01 kg. |
| ["SN: 530001-UP"] analogs:["0401010519"] | ||||
| 3 | 6219-71-3150 | [1] | NUT Komatsu | 0.01 kg. |
| ["SN: 530001-UP"] | ||||
| 4 | 6217-71-1910 | [1] | COVER,PRIMING PUMP Komatsu | 0.01 kg. |
| ["SN: 530001-UP"] analogs:["ND0900610011"] | ||||
| 5 | 6217-71-5910 | [1] | TUBE,CROSS Komatsu | 0.07 kg. |
| ["SN: 530001-UP"] | ||||
| 6 | 6261-71-1111 | [1] | SUPPLY PUMP ASS'Y,(SEE FIG.A4010-C4R1) Komatsu | 16 kg. |
| ["SN: 535909-UP"] analogs:["6261711110", "ND0941000472"] | ||||
| 6 | 6261-71-1110 | [1] | SUPPLY PUMP ASS'Y,(SEE FIG.A4010-C4R1) Komatsu | 16 kg. |
| ["SN: 530001-535908"] analogs:["6261711111", "ND0941000472"] | ||||
| 7 | 01010-81035 | [4] | BOLT Komatsu | 0.033 kg. |
| ["SN: 530001-UP"] analogs:["801015556", "01010D1035", "0101051035"] | ||||
| 8 | 01643-31032 | [4] | WASHER Komatsu | 0.054 kg. |
| ["SN: 530001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 9 | 6217-71-5251 | [2] | BOLT Komatsu | 0.7 kg. |
| ["SN: 530001-UP"] | ||||
| 10 | 6261-71-1220 | [1] | COMMON RAIL ASS'Y,(SEE FIG.A4010-B4R1) Komatsu | 5.352 kg. |
| ["SN: 530001-UP"] analogs:["6261711210"] | ||||
| 11 | 6110-23-6490 | [1] | SPACER Komatsu | 0.02 kg. |
| ["SN: 530001-UP"] | ||||
| 12 | 6217-71-5171 | [1] | CLAMP Komatsu | 0.000 kg. |
| ["SN: 535982-UP"] | ||||
| 12 | 6217-71-5170 | [1] | CLAMP Komatsu | 0.08 kg. |
| ["SN: 530001-535981"] | ||||
| 13 | 6217-71-5211 | [3] | CLAMP Komatsu | 0.000 kg. |
| ["SN: 535982-UP"] | ||||
| 13 | 6217-71-5210 | [3] | CLAMP Komatsu | 0.064 kg. |
| ["SN: 530001-535981"] | ||||
| 14 | 6217-71-5281 | [1] | BRACKET Komatsu | 0.18 kg. |
| ["SN: 530001-UP"] | ||||
| 15 | 6261-71-5910 | [1] | BRACKET Komatsu China | |
| ["SN: 530001-UP"] | ||||
| 16 | 6217-71-6640 | [1] | CLAMP Komatsu | 0.08 kg. |
| ["SN: 530001-UP"] analogs:["6217715562"] | ||||
| 17 | 6217-71-6650 | [1] | CLAMP Komatsu | 0.08 kg. |
| ["SN: 530001-UP"] analogs:["6217715573", "6217715572"] | ||||
| 18 | 6261-71-5670 | [1] | BRACKET Komatsu China | |
| ["SN: 530001-UP"] | ||||
| 19 | 6261-71-5690 | [1] | BRACKET Komatsu China | |
| ["SN: 530001-UP"] | ||||
| 20 | 6261-71-4111 | [2] | TUBE,SUPPLY Komatsu | 0.3 kg. |
| ["SN: 532458-UP"] analogs:["6261714110", "6261714112"] | ||||
| 20 | 6261-71-4110 | [2] | TUBE,SUPPLY Komatsu | 0.3 kg. |
| ["SN: 530001-532457"] analogs:["6261714112"] | ||||
| 21 | 01436-01010 | [1] | BOLT Komatsu China | |
| ["SN: 530001-UP"] analogs:["0143621010"] | ||||
| 22 | 01435-00630 | [2] | BOLT Komatsu | 0.064 kg. |
| ["SN: 531096-UP"] | ||||
| 22A. | 01435-00635 | [1] | BOLT Komatsu | 0.01 kg. |
| ["SN: 531096-UP"] | ||||
| 23 | 01643-30823 | [2] | WASHER Komatsu | 0.004 kg. |
| ["SN: 530001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 24 | 01435-00640 | [2] | BOLT Komatsu | 0.52 kg. |
| ["SN: 530001-UP"] | ||||
| 25 | 01435-01035 | [1] | BOLT Komatsu | 0.03 kg. |
| ["SN: 530001-UP"] | ||||
| 26 | 01435-01025 | [1] | BOLT Komatsu | 0.192 kg. |
| ["SN: 530001-UP"] analogs:["0143521025"] | ||||
| 27 | 01584-01008 | [3] | NUT Komatsu | 0.01 kg. |
| ["SN: 530001-UP"] | ||||
| 29 | 01436-01080 | [1] | BOLT Komatsu | 0.1 kg. |
| ["SN: 530001-UP"] | ||||
| 30 | 175-79-83760 | [1] | SPACER Komatsu | 0.05 kg. |
| ["SN: 530001-UP"] analogs:["1750631121"] | ||||
| 31 | 6210-51-8320 | [1] | CLIP Komatsu | 0.026 kg. |
| ["SN: 530001-UP"] | ||||
| 32 | 6261-71-5411 | [1] | TUBE,OVER FLOW Komatsu | 0.6 kg. |
| ["SN: 530001-UP"] | ||||
| 35 | 01435-01040 | [1] | BOLT Komatsu | 0.033 kg. |
| ["SN: 530001-UP"] | ||||
| 37 | 01435-01020 | [1] | BOLT Komatsu | 0.023 kg. |
| ["SN: 530001-UP"] analogs:["0143521020"] | ||||
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
