| Model Number: | PC400 WA450 WA470 GD405 GD705 | Product Name: | Engine Stop Motor |
|---|---|---|---|
| Part Number: | 6008157660 6008157650 600-815-7660 600-815-7650 | Packing: | Standard Export Carton |
| Transportation: | By Sea/air By Express | Warranty: | 6/12 Months |
| High Light: | 600-815-7660 Engine Stop Motor,6008157650 Engine Stop Motor,6D125E Engine Stop Motor |
||

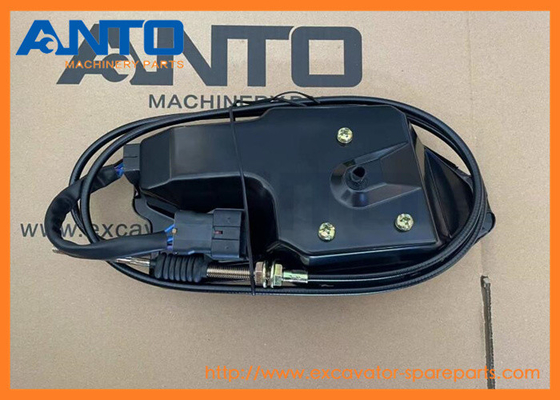

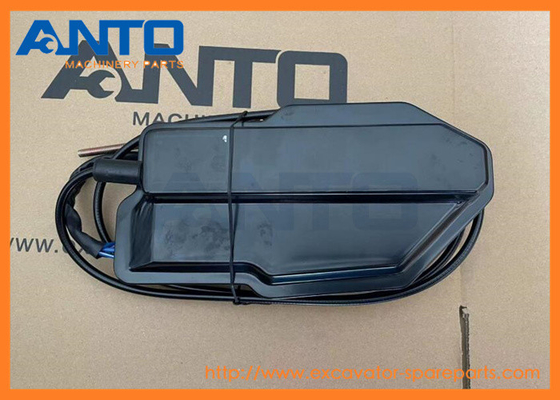

6008157660 6008157650 600-815-7660 600-815-7650 Engine Stop Motor Fit KOMATSU 6D125E Engine
Specification
| Application | KOMATSU engine stop |
| Parts Name | Engine stop motor |
| Parts No |
6008157660 6008157650 600-815-7660 600-815-7650 |
| Model | PC400 WA450 WA470 GD405 GD705 |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
ENGINES S6D125 S6D125E S6D140E SA6D125E
ENGINES S6D140 SA6D108
EXCAVATORS PC400
GRADERS GD305A GD355A GD405A GD510R GD511A GD705A GD725A
WHEEL LOADERS WA450 WA470 Komatsu
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 600-815-7650 | [1] | MOTOR,ENGINE STOP Komatsu | 1.635 kg. |
| ["SN: 75549-87495"] | ||||
| 2 | 01010-80622 | [3] | BOLT Komatsu | 0.007 kg. |
| ["SN: 75549-87495"] analogs:["0101030625", "0101050625", "0101080625"] | ||||
| 3 | 01640-20610 | [3] | WASHER Komatsu | 0.002 kg. |
| ["SN: 75549-87495"] | ||||
| 4 | 6152-82-7260 | [1] | BRACKET Komatsu China | |
| ["SN: 75549-87495"] | ||||
| 5 | 01010-61430 | [2] | BOLT Komatsu | 0.061 kg. |
| ["SN: 75549-87495"] analogs:["801015160", "0101031430", "0101051430", "0101081430"] | ||||
| 6 | 01640-21426 | [2] | WASHER Komatsu China | |
| ["SN: 75549-87495"] analogs:["D40Q689", "M011611400006", "0164001426", "0164011426", "0164031426", "5654011420"] | ||||
| 7 | 08053-00910 | [1] | CLIP Komatsu | 0.02 kg. |
| ["SN: 75549-87495"] | ||||
| 8 | 01010-81016 | [1] | BOLT Komatsu | 0.06 kg. |
| ["SN: 75549-87495"] analogs:["0101051016"] | ||||
| 9 | 01640-21016 | [1] | WASHER Komatsu | 0.177 kg. |
| ["SN: 75549-87495"] analogs:["0164001016", "0164221016", "0164201016"] | ||||
| 10 | 6162-23-5840 | [1] | PLATE Komatsu China | |
| ["SN: 75549-87495"] | ||||
| 11 | 01010-81225 | [1] | BOLT Komatsu | 0.074 kg. |
| ["SN: 75549-87495"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 12 | 01640-21223 | [1] | WASHER Komatsu | 0.012 kg. |
| ["SN: 75549-87495"] analogs:["0164001223"] | ||||
| 13 | 6143-21-5580 | [1] | BRACKET Komatsu China | |
| ["SN: 75549-87495"] | ||||
| 14 | 01010-61425 | [1] | BOLT Komatsu | 0.056 kg. |
| ["SN: 75549-87495"] analogs:["0101051425"] | ||||
| 16 | 04434-50608 | [2] | CLIP Komatsu | 0.09 kg. |
| ["SN: 75549-87495"] | ||||
| 17 | 01010-80816 | [2] | BOLT Komatsu | 0.022 kg. |
| ["SN: 75549-87495"] analogs:["0101050816", "801015084"] | ||||
| 18 | 01580-10806 | [2] | NUT Komatsu | 0.005 kg. |
| ["SN: 75549-87495"] analogs:["801920104"] | ||||
| 19 | 01640-20816 | [2] | WASHER Komatsu | 0.002 kg. |
| ["SN: 75549-87495"] | ||||
| 20 | 6152-72-8731 | [1] | BRACKET Komatsu China | |
| ["SN: 75549-87495"] analogs:["6152728730"] | ||||
| 21 | 01010-81065 | [2] | BOLT Komatsu | 0.051 kg. |
| ["SN: 75549-87495"] analogs:["0101051065"] | ||||
| 22 | 6143-11-4290 | [2] | SPACER Komatsu | 0.11 kg. |
| ["SN: 75549-87495"] | ||||
| 23 | 04250-40639 | [1] | END,ROD Komatsu | 0.026 kg. |
| ["SN: 75549-87495"] | ||||
| 24 | 01590-10607 | [1] | NUT Komatsu | 0.003 kg. |
| ["SN: 75549-87495"] analogs:["0159030607", "0159000607"] | ||||
| 25 | 04050-11212 | [1] | PIN,COTTER Komatsu | 0.001 kg. |
| ["SN: 75549-87495"] | ||||
| 26 | 424-43-11240 | [3] | CUSHION Komatsu | 0.03 kg. |
| ["SN: 75549-87495"] | ||||
| 27 | 424-43-11250 | [6] | WASHER Komatsu China | |
| ["SN: 75549-87495"] | ||||
| 28 | 01580-10605 | [6] | NUT Komatsu | 0.01 kg. |
| ["SN: 75549-87495"] analogs:["21D0921430", "M018200600006", "801920103"] | ||||
| 29 | 421-43-11280 | [1] | BRACKET Komatsu China | |
| ["SN: 75549-87495"] | ||||
| 30 | 01010-81050 | [2] | BOLT Komatsu | 0.038 kg. |
| ["SN: 75549-87495"] analogs:["801015559", "0101051050"] | ||||
| 31 | 421-43-11271 | [1] | BRACKET Komatsu China | |
| ["SN: 75549-87495"] | ||||
| 32 | 01010-80820 | [2] | BOLT Komatsu | 0.013 kg. |
| ["SN: 75549-87495"] analogs:["801014067", "0101050820", "801015086"] | ||||
| 34 | 421-43-11261 | [1] | PLATE Komatsu China | |
| ["SN: 75549-87495"] analogs:["4214311260"] | ||||
| 32 | 01010-51020 | [1] | BOLT Komatsu | 0.161 kg. |
| ["SN: 20001-@"] analogs:["0101081020", "801014093", "801015108"] | ||||
| 33 | 01643-31032 | [1] | WASHER Komatsu | 0.054 kg. |
| ["SN: 20001-@"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 34 | 01010-51016 | [2] | BOLT Komatsu | 0.06 kg. |
| ["SN: 20001-@"] analogs:["0101081016"] | ||||
We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
