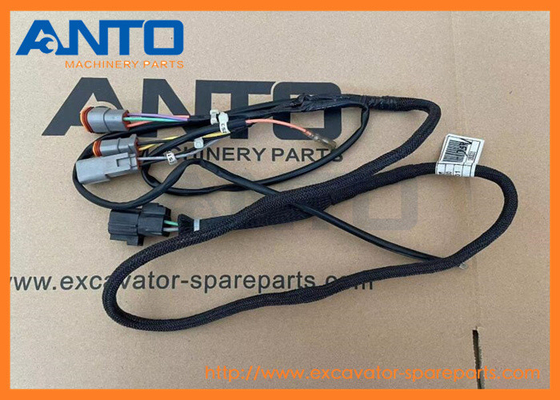

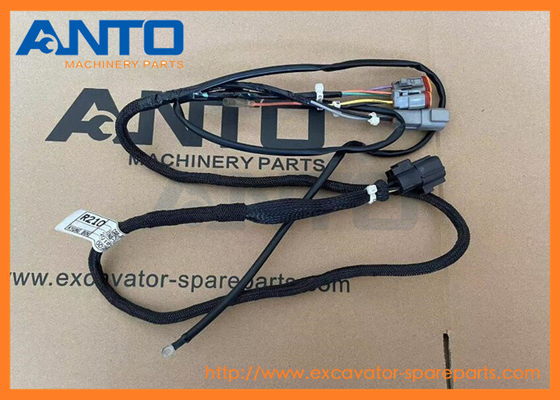

21N811160 21N8-11160 Console Engine Wiring Harness Fit HYUNDAI R140-7 Excavator Harness

• 21N811160 21N8-11160 Console Engine Wiring Harness Fit HYUNDAI R140-7 Excavator Harness





• Specification

Product name	Console Engine Harness
Part number	21N811160 21N8-11160
Model	R80-7 R110-7 R140-7 R210-7 R320-7 R500-7
Category group	Excavator Spare Parts
MOQ	1 PCS
Warranty	6 months
Payment term	T/T, Western Union, MoneyGram
Delivery time	1-3 days after receiving the payment
Packing	As request or standard packing
Means of transport	By sea/air, DHL







• Application

7 SERIES WHEEL EXCAVATOR R140W7 R140W7A R170W7 R170W7A R200W7 R200W7A

7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R305LC7 R320LC7 R320LC7A R360LC7 R360LC7A R450LC7 R450LC7A R500LC7 R500LC7A R80-7 R80-7A R8007AFS R800LC7A RC215C7 RC215C7H RD110-7 RD220-7 RD80-7 Hyundai





• More harness applicable for HYUNDAI equipment

21N6-80101 HARNESS-FRAME

RD220-7

21N6-80102 HARNESS-FRAME

RD220-7

21N1-20010 HARNESS-FRAME

RD80-7

21N1-20011 HARNESS-FRAME

RD80-7

21N1-20012 HARNESS-FRAME

RD80-7

21N1-20013 HARNESS-FRAME

RD80-7

21N6-DA0630 HARNESS-LAMP

RD80-7

21N1-60010 HARNESS-ENG

RD80-7

21N9-10024 HARNESS-ENGINE

R320LC7

21NB-10054 HARNESS-ENGINE

R500LC7

21N1-10022 HARNESS-ENGINE

R80-7

21N8-11182 HARNESS-SIDE,RH

R80-7

21N8-10091 HARNESS-WIPER

HX235L, R110-7, R110-7A, R125LCR-9A, R140LC9, R140LC9V, R140W9, R145CR9, R145CR9A, R160LC9, R180LC9, R210LC9, R210NLC9, R210W-9, R215LC7, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9, R80-7, R...

21N8-10090 HARNESS-WIPER

R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290...

21N6-00013 HARNESS-CAB

R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9V, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250...

21N6-00012 Hyundai

21N6-00012 HARNESS-CAB

R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, R290LC7, R290LC7H, R305LC7, R320LC7, R360LC7, R450LC7, R450LC7A, R500LC7, R80-7, RC215C7, RC215C7H

21N3-10050 HARNESS-ENGINE

R110-7

21N3-10020 HARNESS-BOOM

R110-7

21N4-01502 HARNESS-EXT, TRAVEL

R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9S, R160LC7, R160LC7A, R180LC7, R180LC7A, R80-7, R80-7A, RD110-7

21N3-10014 HARNESS-FRAME

R110-7

21N3-10013 HARNESS-FRAME

R110-7

21N3-10012 HARNESS-FRAME

R110-7

21N3-10011 HARNESS-FRAME

R110-7

YCAC-01966 HARNESS-ENGINE WIRE

HSL960T

21N6-60020 HARNESS-RH,CONSOLE

R110-7

21N3-10510 HARNESS-RH,CONSOLE

R110-7, R110-7A

21N6-60030 HARNESS-SIDE,RH

R110-7

21N6-60031 HARNESS-SIDE,RH

R110-7, R110-7A

21N4-02830 HARNESS-BEACON LAMP

HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R110-7, R110-7A, R1200-9, R125LCR-9A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R...

21N4-02820 HARNESS-SEAT HEATING

R110-7, R140W7, R140W7A, R170W7, R170W7A, R200W7, R200W7A, R210NLC7A

21N8-50110 HARNESS-EXT,WIRE

R110-7, R110-7A, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7A, R250LC7, R250LC7A, R290LC7A, R300...

21NB-00200 HARNESS-EXT

HX180L, R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W7, R140W7A, R140W9, R140W9A, R140W9S, R145CR9, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R170W7, R170W7A...

21N4-01560 HARNESS-EXTENSION

R110-7, R110-7A, R140LC-7, R140LC-7A, R140W7, R160LC7, R160LC7A, R160LC9, R170W7, R170W7A, R180LC7, R180LC7A, R180LC9, RD110-7

ZGBH-00174 HARNESS-WIRING

R110-7, R110-7A, R140LC-7, R140W7, R160LC7, R170W7A, R180LC7, R180LC7A, R200W7, R210LC7, R210LC7A, R210LC7H, R210NLC7, R250LC7, R250LC7A, R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7, R320LC7A, R360LC...

21N3-20021 HARNESS-FRAME

R110-7A

21N3-10600 HARNESS-BOOM

R110-7A





• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
2	21N8-21011	[1]	BRACKET WA
3	21N8-21070	[1]	BRACKET WA
4	S035-061622	[10]	BOLT-W/WASHER
5	21N8-21021	[1]	COVER-WIPER MOTOR
6	S035-081622	[4]	BOLT-W/WASHER
7	21N8-22010	[1]	CASSETTE RADIO	USA
7-1.	3.755E+11	[1]	WIRE ASSY-20 H818
8	21N8-22020	[1]	CASSETTE RADIO	EUROPE
8-1.	3.755E+11	[1]	WIRE ASSY-20 H818
9	21N8-22030	[1]	CASSETTE RADIO	GENERAL
9-1.	3.755E+11	[1]	WIRE ASSY-20 H818
11	21N8-20010	[1]	SOCKET-12V	OPTION
17	21N8-20201	[1]	DC-DC CONVERTER ASSY	OPTION
18	21EH-30720	[1]	STRAP-EARTH
19	21N8-11160	[1]	HARNESS-CONSOLE,LH
20	21N8-11150	[1]	HARNESS-CONSOLE,RH
20	21N8-11151	[1]	HARNESS-CONSOLE,RH
20	21N4-02810	[1]	HARNESS-CONSOLE,RH
25	21N8-11180	[1]	HARNESS-SIDE,RH
25	21N8-11181	[1]	HARNESS-SIDE,RH
25	21N8-40140	[1]	HARNESS-SIDE,RH
26	21N8-21030	[1]	CASSETTE RADIO-KOREA
26-1.	3.755E+11	[1]	WIRE ASSY-20 H818
27	S132-061676	[2]	SCREW-W/WASHER
28	S132-061546	[1]	SCREW-W/WASHER
29	S543-280003	[2]	CLAMP-TUBE
30	21N6-20211	[2]	WORK LAMP ASSY
30-1.	S866-240650	[1]	BULB-H3,65W	NOT SHOWN
31	21EK-10420	[1]	BEACON LAMP ASSY	OPTION
31	F23842010	[1]	STROBE LAMP-RED	OPTION
31	21Q4-30381	[1]	BEACON LAMP ASSY	OPTION
31-1.	21EK-10140	[1]	BEACON LAMP	NOT SHOWN
31-2.	21EK-10330	[1]	BULB-H1,70W	NOT SHOWN
31-3.	21EK-20240	[1]	HARNESS-BEACON LAMP	NOT SHOWN
31-4.	21Q4-31000	[1]	BRACKET-TILT
31-41.	21EK-10330	[1]	BULB-H1,70W	NOT SHOWN
31-5.	21Q4-20700	[1]	BEACON LAMP
31-5.	21Q4-30700	[1]	BEACON LAMP
31-51.	H1U 64155	[1]	BULB-H1,70W
31-6.	21N4-02830	[1]	HARNESS-BEACON LAMP
32	21N8-00580	[1]	BRACKET-BEACON LAMP
32	21N8-00581	[1]	BRACKET-BEACON LAMP
32	21N8-00581BG	[1]	BRACKET-BEACON LAMP
33	S131-051046	[7]	SCREW-W/WASHER
33	S131-051046	[4]	SCREW-W/WASHER
34	S131-051646	[2]	SCREW-W/WASHER
35	S037-102022	[9]	BOLT-W/WASHER
35	S037-102022	[7]	BOLT-W/WASHER
36	S661-260300	[1]	CAP-RUBBER
37	21M5-50250	[1]	SWITCH ASSY	SAFETY SW
38	21N8-21080	[1]	PLATE
39	S890-107508	[1]	TUBE-PVC
40	S205-101002	[2]	NUT-HEX
43	21N4-01130	[6]	PLATE-CLIP
44	25D1-10660	[1]	CLIP ASSY
45	25D1-10650	[1]	CLIP ASSY
46	S591-000802	[2]	CLIP-HARNESS
47	S161-040106	[3]	SCREW-CROSS R/ROUND
49	21N6-10450	[1]	PLATE-C/RADIO COVER
50	21N8-40190	[1]	EXT.HARNESS-A/RIDE SEAT
N60.	21N8-50010	[1]	CASSETTE RADIO ASSY	STD
N60.	21N8-50050	[1]	CASSETTE RADIO ASSY	STD
60-1.	21N6-10480	[1]	BRACKET-LH
60-2.	21N6-10490	[1]	BRACKET-RH
60-3.	21N8-01600	[1]	HARNESS-EXT WIRE
60-4.	S141-050102	[4]	SCREW-FLAT HD
61	21N8-40500	[1]	CD PLAYER ASSY	OPTION
61-1.	21N6-10480	[1]	BRACKET-LH
61-2.	21N6-10490	[1]	BRACKET-RH
61-3.	21N8-01600	[1]	HARNESS-EXT WIRE
61-4.	S141-050102	[4]	SCREW-FLAT HD
62	21N8-40940	[1]	COVER-DUST
72	21N8-50100	[1]	RADIO/USB PLAYER ASSY
72	21N8-54000	[1]	RADIO & USB PLAYER ASSY
72	21N8-55000	[1]	RADIO/USB PLAYER
72-1.	21LM-31010	[1]	BRACKET L
72-2.	21LM-31020	[1]	BRACKET R
72-3.	21LM-31030	[1]	CABLE-MP3
72-4.	21LM-31040	[1]	CAP
72-5.	21LM-31050	[1]	BODY-RADIO/USB
72-6.	21N8-50110	[1]	HARNESS-EXT,WIRE
