Product Details:
Payment & Shipping Terms:
|
| Application: | Truck, Generator, Excavator, Grader | Engine Model: | NT855 N14 |
|---|---|---|---|
| Lead Time: | 1-3 Days For Delivery | Packing: | Standard Export Carton |
| Part Number: | 3609833 3027421 3068460 3821579 3803369 | Product Name: | Oil Pump |
| High Light: | 3609833 Engine Oil Pump,3821579 Engine Oil Pump,3803369 Engine Oil Pump |
||

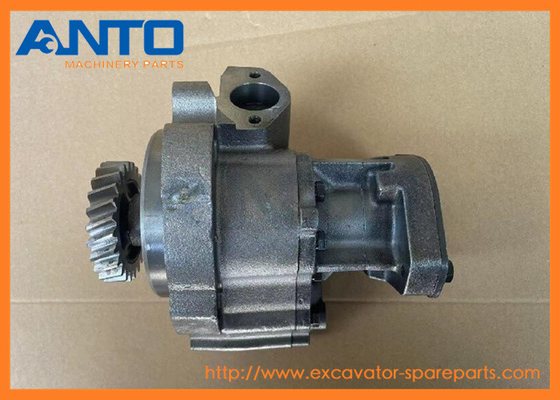

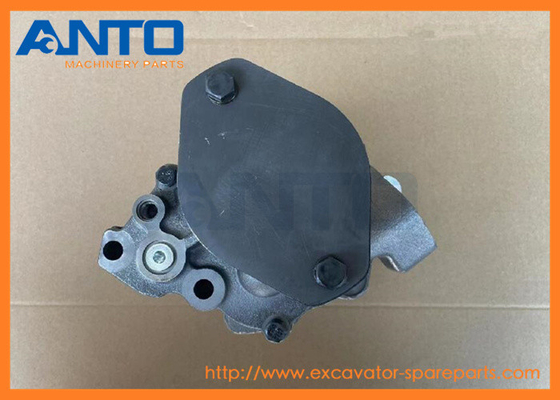

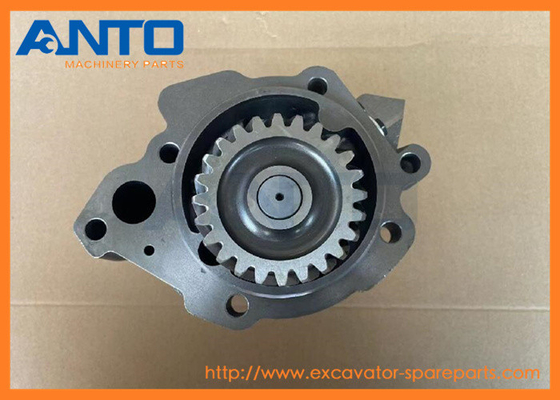

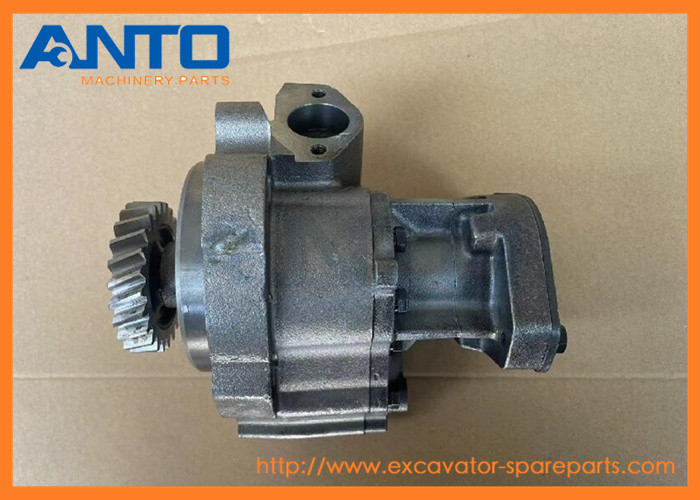

3609833 3027421 3068460 3821579 3803369 CUMMINS NT855 N14 Engine Oil Pump
Specification
| Application | NT855 N14 |
| Name | Oil pump |
| Parts No | 3609833 3027421 3068460 3821579 3803369 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
Construction machinery
generator
| Pos. | Part No | Qty | Parts name | Comments |
| . . | 3821579 | [1] | PUMP, ENGINE OIL | CAS PUMP ASSEMBLY - engine oil, Includes: Ref. 1 - 31 |
| 1 | A77509 | [1] | PLATE | CAS - cover |
| 2 | 3010595 | [2] | CAP | CAS BOLT - hex with washer, 3/8 NC x 1 inch |
| 3 | 3004242 | [1] | GASKET | CAS - cover plate |
| 4 | 3037536 | [1] | PLUG | CAS ASSEMBLY - threaded |
| 5 | 3012529 | [1] | TOGGLE | CAS - pressure regulator Superseded by part number: NLS |
| 6 | 3010146 | [1] | SPRING | CAS - pressure regulator |
| 7 | NLS | [2] | NO LONGER SERVICED | BAS O-RING - screen plug |
| 8 | 3012726 | [1] | SPARE PART | CAS - retainer Superseded by part number: HIT3012726, HIT3012726, NLS |
| 9 | 146161 | [1] | WASHER | CAS - flat Superseded by part number: NLS |
| 10 | 3014778 | [1] | GASKET | CAS - pump cover |
| . . | NSS | [1] | NOT SOLD SEPARAT | CON PUMP - engine oil, Includes: Ref. 13 - 31 |
| 13 | 69519 | [1] | DOWEL | CAS PIN - dowel |
| 14 | 179063 | [1] | PLUG | CAS - retainer |
| 15 | 3014755 | [1] | DISC | CAS - valve |
| 16 | 3014754 | [1] | WASHER | CAS - flat |
| 17 | 3014756 | [1] | SPRING | CAS - bypass valve |
| 18 | 3012531 | [1] | SPARE PART | CAS - idler Superseded by part number: HIT3012531, HIT3012531, NLS |
| 19 | 3012532 | [1] | DRIVE SHAFT | CAS SHAFT - oil pump |
| 20 | 183695 | [1] | KEY | CAS - Woodruff |
| 23 | 3045617 | [1] | GEAR | CAS - oil pump |
| 24 | 3045622 | [1] | GEAR | CAS - oil pump |
| 25 | 3014964 | [1] | COVER | CAS - oil pump, Includes: Ref. 26 |
| 26 | 69521 | [1] | SOFTWARE | NNA - shaft Superseded by part number: NLS |
| 27 | 3821577 | [1] | BODY | CAS - oil pump, Includes: Ref. 28 |
| 29 | 204832 | [1] | GEAR | CAS - oil pump |
| 30 | 3022589 | [1] | CAP | CAS BOLT - hex with washer, 5/16 NC x 5/8 inch |
| 31 | 3022590 | [7] | CAP | CAS BOLT - hex with washer, 5/16 NC x 1 inch |
| 35 | 3031434 | [1] | GASKET | CAS - oil pump |
| 36 | 3044849 | [1] | TUBE | CAS - pressure sensing |
| 37 | 3044854 | [2] | ELBOW | CAS - adapter |
| 38 | S142-A | [2] | BOLT | CAS BOLT - hex with washer, 7/16 NF x 4-1/2 inch |
| 39 | 3034526 | [2] | SPARE PART | CAS BOLT - hex with washer, 7/16 NF x 1-3/4 inch Superseded by part number: HIT3034526, HIT3034526, NLS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
