Product Details:
Payment & Shipping Terms:
|
| Model Number: | 6D125-1 S6D125E-2 | Part Number: | 6151-11-8610 6151-11-8611 |
|---|---|---|---|
| Product Name: | Muffler | Lead Time: | 1-3 Days For Delivery |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |
| High Light: | 6D125 Engine Muffler,6151-11-8610 Engine Muffler,6151118611 Engine Muffler |
||
Specification
| Category | KOMATSU Engine parts |

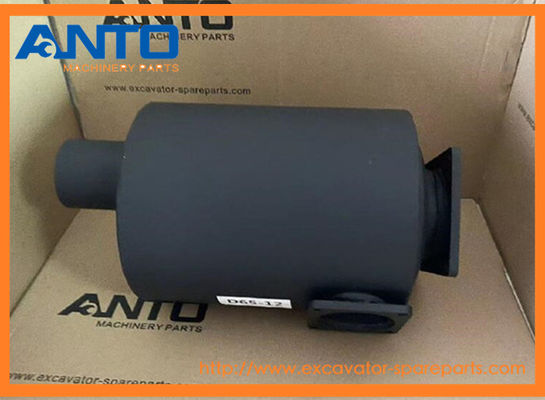

| Name | Muffler |
| Parts No | 6151-11-8610 6151-11-8611 6151118610 6151118611 |
| Machine Model | KOMATSU Heavy machinery |
| Engine model | 6D125-1 6D125-2 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
ENGINES 6D125 S6D125 S6D125E Komatsu
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6151-11-8611 | [1] | MUFFLER Komatsu | 22.11 kg. |
| ["SN: 64702-81642"] analogs:["6151118610"] | ||||
| 6151-11-8610 | [1] | MUFFLER Komatsu | 22.11 kg. | |
| ["SN: 61659-64701"] analogs:["6151118611"] |1. | ||||
| 2 | 6150-11-5751 | [1] | GASKET (K1) Komatsu | 0.21 kg. |
| ["SN: 61659-81642"] analogs:["6150115750", "6643115750"] | ||||
| 3 | 6110-23-6490 | [4] | SPACER Komatsu | 0.02 kg. |
| ["SN: 61659-81642"] | ||||
| 4 | 01580-01008 | [4] | NUT Komatsu | 0.01 kg. |
| ["SN: 61659-81642"] analogs:["M018201000006", "0150431006", "0158031008"] | ||||
| 5 | 6150-81-9370 | [4] | BOLT Komatsu | 0.032 kg. |
| ["SN: 61659-81642"] | ||||
| 6 | 01643-51032 | [4] | WASHER Komatsu | 0.17 kg. |
| ["SN: 61659-81642"] analogs:["R0164351032"] | ||||
| 7 | 6151-11-8640 | [1] | BRACKET Komatsu | 5.18 kg. |
| ["SN: 61659-81642"] | ||||
| 8 | 01010-81040 | [4] | BOLT Komatsu | 0.288 kg. |
| ["SN: 61659-81642"] analogs:["0101051040", "R0101081040"] | ||||
| 9 | 6631-11-5630 | [4] | SPACER Komatsu | 0.124 kg. |
| ["SN: 61659-81642"] | ||||
| 10 | 6151-11-8650 | [1] | CONNECTOR Komatsu | 2.32 kg. |
| ["SN: 61659-81642"] | ||||
| 11 | 6137-11-5291 | [1] | RING,SEAL Komatsu OEM | 0.03 kg. |
| ["SN: 61659-81642"] analogs:["6137115290"] | ||||
| 12 | 01010-E1225 | [4] | BOLT Komatsu | 0.039 kg. |
| ["SN: 61659-81642"] analogs:["0101031225", "0101061225"] | ||||
| 13 | 6151-11-8620 | [1] | COVER,SAFETY Komatsu China | |
| ["SN: 61659-81642"] | ||||
| 14 | 01010-E1016 | [3] | BOLT Komatsu | 0.022 kg. |
| ["SN: 61659-81642"] analogs:["0101031016"] | ||||
| 15 | 01640-21016 | [3] | WASHER Komatsu | 0.177 kg. |
| ["SN: 61659-81642"] analogs:["0164001016", "0164221016", "0164201016"] | ||||
| 16 | 6151-12-8660 | [1] | TUBE,DRAIN Komatsu China | |
| ["SN: 61659-81642"] | ||||
| 17 | 6207-65-8410 | [1] | STAY Komatsu China | |
| ["SN: 61659-81642"] | ||||
| 18 | 04434-51010 | [1] | CLIP Komatsu | 0.014 kg. |
| ["SN: 61659-81642"] | ||||
| 19 | 01010-81020 | [1] | BOLT Komatsu | 0.161 kg. |
| ["SN: 61659-81642"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 20 | 01580-11008 | [1] | NUT Komatsu | 0.011 kg. |
| ["SN: 61659-81642"] | ||||
| 22 | 6151-61-3781 | [1] | SPACER Komatsu China | |
| ["SN: 61659-81642"] | ||||
| 23 | 01010-81045 | [1] | BOLT Komatsu | 0.039 kg. |
| ["SN: 61659-81642"] analogs:["0101051045", "01010D1045"] | ||||
| 24 | 01643-31032 | [1] | WASHER Komatsu | 0.054 kg. |
| ["SN: 61659-81642"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 25 | 6150-11-5452 | [1] | PIPE,EXHAUST Komatsu | 2.1 kg. |
| ["SN: 61659-81642"] | ||||
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
