Product Details:
Payment & Shipping Terms:
|

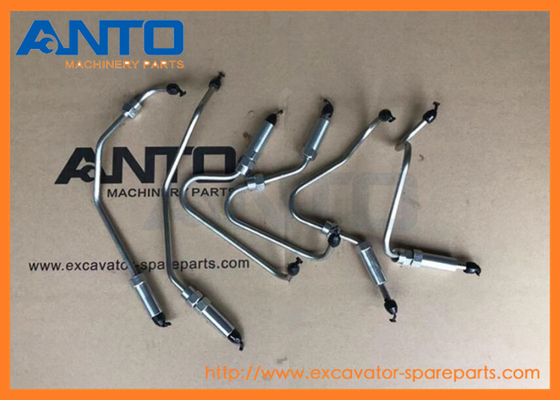

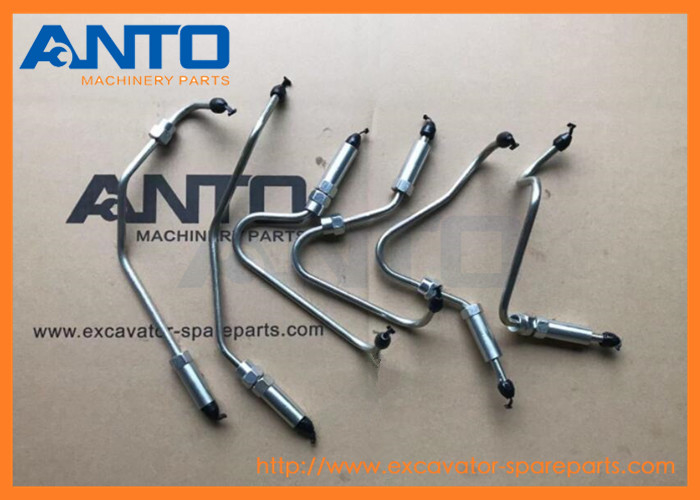

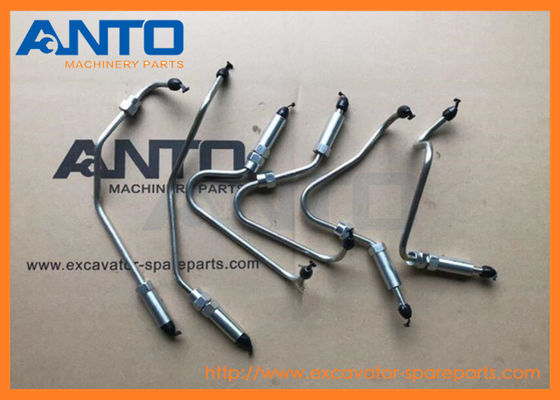

| Product Name: | Engine Fuel Line | Category: | C A T Engine Parts |
|---|---|---|---|
| Part Number: | 2941790 2941791 2941792 2941793 2941794 2941795 | Model Number: | C6.4 |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |
| High Light: | 2941790 Engine Fuel Line,2941793 Engine Fuel Line,2941795 Engine Fuel Line |
||
| Product name | fuel line set |
| Part number | 2941790 2941791 2941792 2941793 2941794 2941795 |
| Applied Model | SAA6D125E-5 SAA6D140E-5 |
| Category group | KOMATSU Engine Parts |
| MOQ | 1 SET |
| Warranty | 6 months |
| Payment term | T/T, Western Union |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX TNT UPS EMS |
EXCAVATOR 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 321D LCR 323D L 323D LN 323D SA
MOBILE HYD POWER UNIT 323D L 323D LN Caterpillar
| 5I7645 PIPE |
| 311, 311B, 311D LRR, 312, 312B, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L... |
| 5I8040 PIPE |
| 318C, 319C, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D L, 320D LN, 320D LRR, 320D RR, 321B, 321C, 321D LCR, 323D L, 323D LN |
| 1141399 PIPE-GAUGE |
| 1090, 1190, 1190T, 1290T, 315D L, 316E L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E ... |
| 1175612 PIPE |
| 320B, 320C, 323D LN, 323D SA, 323E L, 325B, 325B L, 325C, 325D, 325D L, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS |
| 2666346 PIPE |
| 320D, 320D FM, 320D FM RR, 320D L, 320D LN, 320D LRR, 320D RR, 321C, 321D LCR |
| 2941789 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941791 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941792 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941793 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941794 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941795 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941814 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941789 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941765 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941764 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 1712586 PIPE |
| 345C, 345C MH, W345C MH |
| 2552891 PIPE AS-EXHAUST |
| 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, W345B II, W345C MH |
| 2666346 PIPE |
| 320D, 320D FM, 320D FM RR, 320D L, 320D LN, 320D LRR, 320D RR, 321C, 321D LCR |
| 2977656 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941795 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941794 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941793 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941792 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 2941791 PIPE |
| 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 294-1787 | [1] | SUPPORT | |
| 2 | 294-1788 | [6] | SEAL | |
| 3 | 095-2039 | [12] | WASHER-SPECIAL | |
| 4 | 294-1789 | [1] | PIPE | |
| 5 | 358-6634 Y | [1] | RAIL GP-FUEL | |
| 6 | 294-1790 | [1] | PIPE | |
| 7 | 294-1791 | [1] | PIPE | |
| 8 | 294-1792 | [1] | PIPE | |
| 9 | 294-1793 | [1] | PIPE | |
| 10 | 294-1794 | [1] | PIPE | |
| 11 | 294-1795 | [1] | PIPE | |
| 13 | 297-7656 | [1] | PIPE | |
| 15 | 297-7658 | [1] | BLOCK | |
| 17 | 294-1801 | [1] | CLAMP | |
| 18 | 294-1802 | [3] | CLAMP | |
| 20 | 125-2983 | [1] | FITTING | |
| 22 | 296-4812 | [6] | BOLT | |
| 23 | 294-1804 | [2] | SEAL-O-RING | |
| 25 | 294-1806 | [1] | BOLT AS | |
| 26 | 270-6259 | [5] | BOLT (M8X1.25X40-MM) | |
| 27 | 5C-2890 M | [3] | NUT (M6X1-THD) | |
| 28 | 9X-8256 | [3] | WASHER (6.6X12X2-MM THK) | |
| 29 | 099-4437 | [8] | GASKET | |
| 31 | 099-5041 | [4] | BOLT (M14X1.5X27-MM) | |
| 33 | 294-1808 | [4] | BOLT AS | |
| 34 | 294-1809 | [1] | BOLT | |
| 35 | 310-9533 | [2] | ADAPTER | |
| 36 | 294-1811 | [2] | WASHER (13.5-MM OD) | |
| 37 | 294-1812 | [2] | WASHER | |
| 38 | 310-9537 | [1] | VALVE AS | |
| 39 | 294-1814 | [1] | PIPE | |
| 40 | 294-1815 | [1] | BRACKET | |
| 41 | 099-2503 M | [6] | BOLT (M8X1.25X75.5-MM) | |
| 42 | 4P-7581 | [2] | CLIP (LADDER) | |
| 45 | 297-7657 | [1] | HOSE | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packaging Details:
1. According to orders,pack the spare parts one by one by oil paper;
2. Put them into small carton boxes one by one;
3. Put the packed small carton boxes into bigger carton boxes one by one;
4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5.. goods is packed by oil paper and plastic bags inside
6. using wooden package.
7. we support the custom-made demand for package
Port: Huangpu
Lead Time : Within 2 days after receiving the pay me.
Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.
