Product Details:
Payment & Shipping Terms:
|
| Model Number: | QSM11 | Part Number: | 4022500 3044580 3044502 3820007 |
|---|---|---|---|

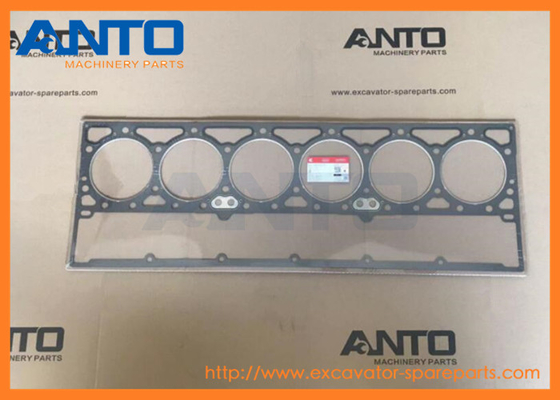

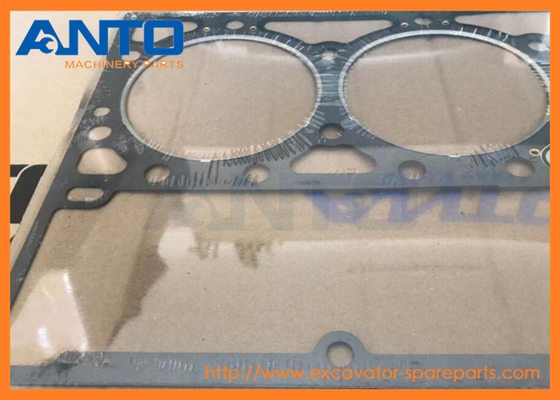

| Product Name: | Cylinder Head Gasket | Lead Time: | 1-3 Days For Delivery |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |
| High Light: | 3044502 Excavator Engine Parts,4022500 Excavator Engine Parts,QSM11 Cylinder Head Gasket |
||
Specification
| Category | HYUNDAI Engine parts |
| Name | cyl head gasket |
| Parts No | 4022500 3044580 3044502 3820007 |
| Machine Model | R450LC7 R500LC7 R480LC9 R520LC9 HL780-7 HL780-9 |
| Engine model | QSM11 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
7-SERIES CRAWLER EXCAVATOR R450LC7 R450LC7A R500LC7 R500LC7A RD510LC-7
7-SERIES WHEEL LOADER HL780-7A
9-SERIES CRAWLER EXCAVATOR R480C9MH R480LC9 R480LC9S R520LC9 R520LC9S
9-SERIES WHEEL LOADER HL780-9 HL780-9S Hyundai
| E128-1053 GASKET |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 110DE, 15D, 15D-9, 15D-9S, 15G, 15G-7M, 180D-9, 180DE, 20D-7, 20D-7E, 20DF, 20DT, 20G, 22D-9, 22D-9E, 22D-9S, 22D-9T, 250D-9, 250DE, 25G-7A, 25G-7M, 25GC-7A, 25GC-7M,... |
| 3883220 Hyundai |
| 3883220 GASKET-R/LEVER COVER |
| HL770, HL770-3, HL770-3ATM, HL780-7A, HL780-9, HL780-9S, HL7803A, R320LC, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 4070529 Hyundai |
| 4070529 GASKET-R/LEVER |
| HL780-7A, R450LC7, R450LC7A, R500LC7, R500LC7A |
| 3755843 Hyundai |
| 3755843 GASKET-TURBO |
| HL35C, HL760-9S, HL770-9A, R300LC9S, R305LC7, R320LC, R320LC7, R330LC9A, R330LC9S, R380LC9A, R430LC9A, R450LC7, R480LC9S, R500LC7, R520LC9S, RD510LC-7 |
| 3201386 GASKET-CONNECTION |
| HL25C, HL35C, HL760, HL770, R320LC, R450LC7, R480LC9S, R500LC7, R520LC9S, RD510LC-7 |
| 3818841 GASKET-THERMOSTST |
| HL35C, R320LC, R450LC3, R450LC7, R480LC9S, R500LC7, R520LC9S, RD510LC-7 |
| 4026171 GASKET-FUEL PUMP |
| R450LC7, R480LC9S, R500LC7, R520LC9S, RD510LC-7 |
| 4952625 GASKET-AIR COMPRESSOR |
| R450LC7, R480LC9S, R500LC7, R520LC9S, RD510LC-7 |
| 4985110 GASKET-HAND HOLE |
| R450LC7, R480LC9S, R500LC7, R520LC9S, RD510LC-7 |
| 31QB-19630 GASKET 1-1/4 |
| HX480L, HX520L, R360LC9, R380LC9SH, R390LC9, R430LC9, R430LC9SH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 31QB-19650 GASKET 1 |
| HX480L, HX520L, R360LC9, R380LC9SH, R390LC9, R430LC9, R430LC9SH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 31QB-19610 GASKET 2-1/2 |
| HX480L, HX520L, R360LC9, R380LC9SH, R390LC9, R430LC9, R430LC9SH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S, R700LC9, R800LC-9, R800LC9FS |
| 3069786 GASKET-INTAKE |
| HL780-7A, HL780-9, HL780-9S, R320LC, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 11L6-00830 GASKET |
| HL780-3, HL780-7A |
| 3027924 GASKET-CONNECTION |
| HL35C, HL770, HL770-3, HL770-3ATM, HL780-7A, HL780-9, HL780-9S, HL7803A, R320LC, R360LC3, R450LC3, R450LC3A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510... |
| 3883220 Hyundai |
| 3883220 GASKET-R/LEVER COVER |
| HL770, HL770-3, HL770-3ATM, HL780-7A, HL780-9, HL780-9S, HL7803A, R320LC, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 3893692 GASKET-SUPPORT |
| HL770-3, HL770-3ATM, HL780-7A, HL780-9, HL780-9S, HL7803A, R360LC3, R450LC3A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 3328948 GASKET-EXH MANI |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R360LC3, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 3896697 GASKET-R/LVR,HSG |
| HL770-3, HL770-3ATM, HL7803A, R360LC3, R450LC3A |
| 3899343 GASKET-TURBO |
| HL770-3, HL770-3ATM, HL780-7A, HL780-9, HL780-9S, HL7803A, R360LC3, R450LC3A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 3088984 GASKET-TURBO |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 3328925 GASKET-CYL HEAD |
| HL7803A, R450LC7, R500LC7 |
| 3401290 GASKET-OIL PAN |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 3025296 GASKET-COVER PLATE |
| HL35C, HL770, HL770-3, HL770-3ATM, HL780-7A, HL780-9, HL780-9S, HL7803A, R320LC, R360LC3, R450LC3A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 4070529 Hyundai |
| 4070529 GASKET-R/LEVER |
| HL780-7A, R450LC7, R450LC7A, R500LC7, R500LC7A |
| 4083006 GASKET-WATER HEADER |
| HL780-7A, HL780-9, HL780-9S, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 11LQ-50120 GASKET |
| HL780-9, HL780-9S |
| 4973102 GASKET-LEVER HOUSING |
| HL780-9, HL780-9S, R450LC7, R480C9MH, R480LC9, R480LC9S, R500LC7, R520LC9, R520LC9S, RD510LC-7 |
| MD151502 GASKET |
| HLF15-2, HLF15-5, HLF15C-3, HLF15C-5, HLF20-2, HLF20-5, HLF20C-2, HLF20C-5 |
| FAC0700600 GASKET |
| HLF15-2, HLF15C-3 |
| MD972030 GASKET KIT |
| HLF15-2, HLF15-5, HLF15C-3, HLF15C-5 |
| MD971325 GASKET KIT |
| HLF15-2, HLF15-5, HLF15C-3, HLF15C-5 |
| MD041512 GASKET |
| HLF15-2, HLF15-5, HLF15C-3, HLF15C-5, HLF20-2, HLF20-5, HLF20C-2, HLF20C-5 |
| MD103148 GASKET-E/OIL CAP |
| HLF15-2, HLF15-5, HLF15C-3, HLF15C-5, HLF20-2, HLF20-5, HLF20C-2, HLF20C-5 |
| MF660063 GASKET |
| HC25E, HC50E, HLF15-2, HLF15-5, HLF15C-3, HLF15C-5, HLF20-2, HLF20-5, HLF20C-2, HLF20C-5 |
| MD189978 GASKET |
| HLF15-2, HLF15-5, HLF15C-3, HLF15C-5 |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 2864028 | [1] | CYLINDER HEAD ASSY | PP2828-12 |
| 1 | 2864024 | [1] | HEAD-CYLINDER | |
| 2 | 3007632 | [2] | PLUG-EXPANSION | |
| 3 | 206741 | [2] | PLUG-EXPANSION | |
| 4 | 3007635 | [8] | PLUG-EXPANSION | |
| 5 | 3035026 | [6] | SEAL | |
| 6 | 3417717 | [6] | SLEEVE-INJECTOR | |
| 7 | 3090704 | [24] | INSERT-VALVE | |
| 9 | 3328786 | [24] | GUIDE-VALVE STEM | |
| 10 | 3895860 | [24] | SPRING-VALVE | |
| *-1. | 3800636 | [12] | KIT-INTAKE VALVE | |
| 11 | 3417778 | [12] | VALVE-INTAKE | |
| 12 | 3275354 | [24] | COLLET-VALVE | |
| *-2. | 3800637 | [12] | KIT-EXHAUST VALVE | |
| N13. | 3417779 | [12] | VALVE-EXHAUST | |
| 12 | 3275354 | [24] | COLLET-VALVE | |
| 14 | 3104151 | [24] | RETAINER-VLV SPRING | |
| 15 | 3070072 | [24] | GUIDE-VALVE SPRING | |
| 16 | 3008465 | [16] | PLUG-PIPE | |
| 17 | 3820749 | [6] | PLUG-ORIFICE | |
| 18 | 4003966 | [24] | SEAL-VALVE STEM | |
| 19 | 3895479 | [2] | PLUG-EXPANSION | |
| 20 | 4923187 | [29] | SCREW-HEX FLG H/CAP | |
| 21 | 4022907 | [3] | SCREW-HEX FLG H/CAP | |
| 22 | 4022500 | [1] | GASKET-CYLINDER HEAD | |
| 23 | 3328328 | [7] | WASHER-SEALING | |
| 24 | 3328637 | [5] | SCREW-HEX FLG H/CAP | |
| 25 | 3328379 | [2] | SCREW-HEX FLG H/CAP | |
| N*. | 3074118 | GUIDE-VALVE STEM | 0.20MM O/SIZE | |
| *. | 3028071 | INSERT-VALVE | 0.25MM O/SIZE | |
| *. | 3028072 | INSERT-VALVE | 0.50MM O/SIZE | |
| *. | 3028073 | INSERT-VALVE | 0.75MM O/SIZE | |
| *. | 3028074 | INSERT-VALVE | 1.00MM O/SIZE | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
