Product Details:
Payment & Shipping Terms:
|
| Bearing Number: | 6208 | Size: | 40x80x18 MM |
|---|---|---|---|
| Bore Diameter: | 40 (mm) | Outer Diameter: | 80 (mm) |
| Width: | 18 (mm) | Weight: | 0.37 Kg |
| High Light: | 6208 Deep Groove Ball Bearing,Excavator Deep Groove Ball Bearing |
||

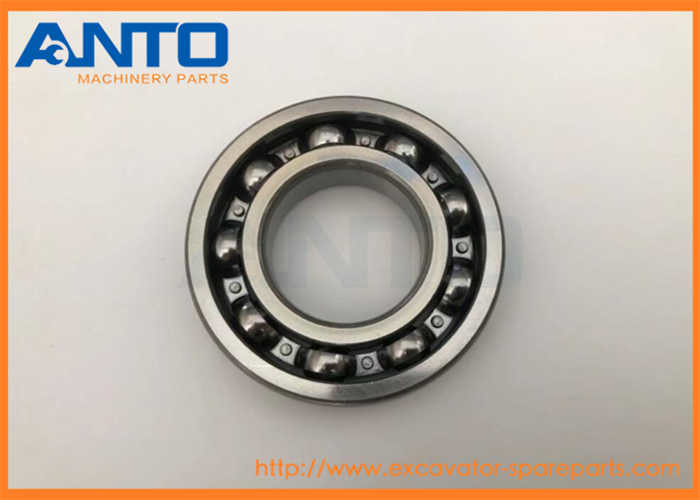

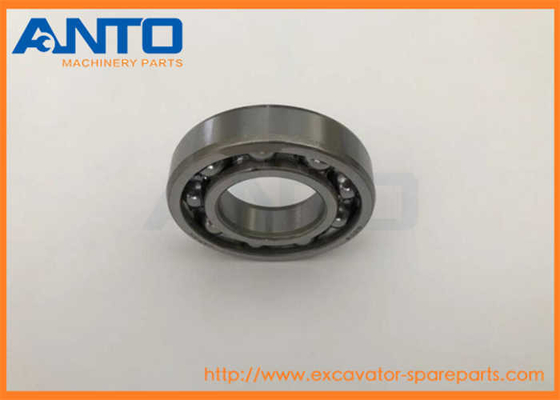

| Deep groove ball bearings 6208 |
| Bearing number : 6208 |
| Size (mm) : 40x80x18 |
| Bore Diameter (mm) : 40 |
| Outer Diameter (mm) : 80 |
| Width (mm) : 18 |
| d - 40 mm |
| D - 80 mm |
| B - 18 mm |
| D1 - 67,5 mm |
| Da max - 73 mm |
| d1 - 53 mm |
| da min - 47 mm |
| ra max - 1 mm |
| rmin - 1,1 mm |
| m - 0,372 kg / Weight |
| Cr - 31000 N / Dynamic load rating (radial) |
| C0r - 17800 N / Static load rating (radial) |
| nG - 12300 1/min / Limiting speed |
| nB - 9300 1/min / Reference speed |
| Cur - 900 N / Fatigue limit load, radial |
| Main dimensions to DIN 625-1 |
Deep groove ball bearings are inseparable bearings. The inner and outer raceways are in the form of deep grooves. They are mainly used to bear radial loads. However, when the radial clearance of the bearing is increased, it has a certain performance of angular contact ball bearings and can withstand radial loads. , Axial combined load. It can also be used to bear pure axial load when the rotational speed is high and the thrust ball bearing is not suitable.
We can produce many categories and more than 6000 specifications of high-quality bearing products for various purposes and performances, which are sold well in various provinces, municipalities, autonomous regions and more than 50 countries and regions in the world. Many bearing products have won national silver medals and provincial and municipal high-quality bearings.
1. According to the application field, the bearings are divided into: automotive bearings, agricultural machinery bearings, machine tool bearings, motor bearings, fan bearings, textile machinery bearings, mining machinery bearings, paper machinery bearings, chemical machinery bearings, cement plant bearing maintenance, power plant bearings, etc.
2. According to the bearing type, it is divided into: deep groove ball bearing, self-aligning ball bearing, angular contact ball bearing, cylindrical roller bearing, tapered roller bearing, spherical ball bearing with seat, thrust ball bearing, self-aligning roller bearing, Combined rolling bearings such as thrust angular contact ball bearings and thrust spherical roller bearings.
3. According to the characteristics of use: stainless steel bearings, high temperature bearings, low temperature bearings, corrosion-resistant bearings, high-speed bearings, insulating bearings, silent bearings, chemical fiber bearings, vacuum bearings, fitness equipment bearings, self-lubricating bearings, anti-magnetic bearings, anti-sulfur bearings.
We stock most of popular models of bearing, and delivery can be arranged in short time for your urgent request.
We can arrange delivery by express, for example DHL, FEDEX, TNT, UPS, EMS, ShunFeng. Or by air cargo to local airport. For any large amount of bearing request, we are able to arrange delivery by sea/boat.
