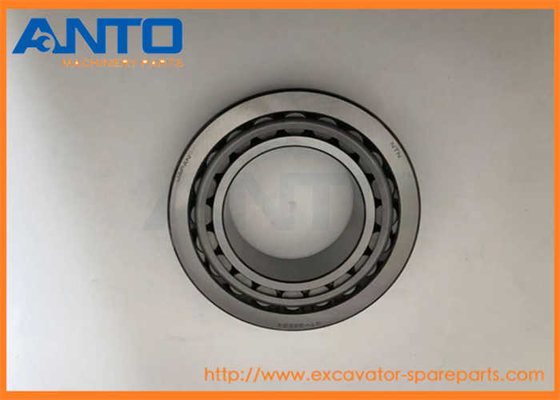

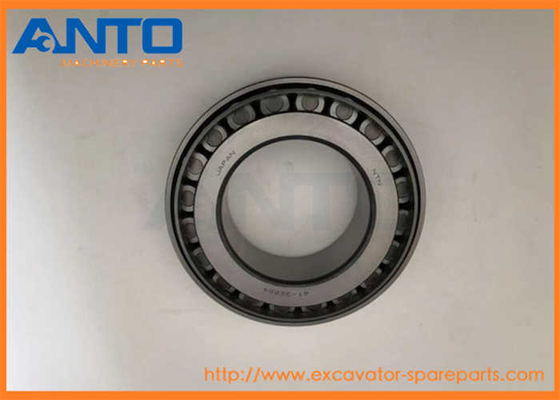

4T-32224 32224 Tapered Roller Bearing 120x215x61.5 HR32224 For Excavator Bearing

4T-32224 32224 Tapered Roller Bearing 120x215x61.5 HR32224 For Excavator Bearing
4T-32224 32224 Tapered Roller Bearing 120x215x61.5 HR32224 For Excavator Bearing

Large Image :  4T-32224 32224 Tapered Roller Bearing 120x215x61.5 HR32224 For Excavator Bearing

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Model Number: 32224
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 1-3 working days
Payment Terms: L/C, T/T, Western Union, PAYPAL
Supply Ability: 9999 SETS
Detailed Product Description
Bearing Number: 32224 Size: 120x215x61.5 MM
Bore Diameter: 120 (mm) Outer Diameter: 215 (mm)
Width: 61.5 (mm) Weight: 9.0 Kg
High Light:

32224 Tapered Roller Bearing

,

HR32224 Tapered Roller Bearing

  • 4T-32224 32224 Tapered Roller Bearing 120x215x61.5 HR32224 For Excavator Bearing
Tapered roller bearings HR32224J
Bearing number : HR32224J

Size (mm) : 120x215x61.5

Bore Diameter (mm) : 120

Outer Diameter (mm) : 215

Width (mm) : 61,5

d - 120 mm

D - 215 mm

T - 61,5 mm

B - 58 mm

C - 50 mm

a - 52 mm

r min. - 3 mm

r1 min. - 2,5 mm

da min. - 138 mm

Da min - 181 mm

Da max. - 203 mm

db max. - 137 mm

Db min. - 204 mm

ra max. - 2,5 mm

rb max. - 2 mm

Weight - 9 Kg

Basic dynamic load rating (C) - 440 kN

Basic static load rating (C0) - 635 kN

(Grease) Lubrication Speed - 1600 r/min

(Oil) Lubrication Speed - 2200 r/min

Calculation factor (e) - 0,44

Calculation factor (Y0) - 0,76

Calculation factor (Y1) - 1,4



Tapered Roller Bearings
When the tapered roller bearing is designed, the three extension lines of the inner and outer raceway generatrix and the roller center line intersect at one point on the bearing center line. Therefore, the rollers achieve pure rolling on the raceway.
Tapered roller bearings are especially suitable for bearing radial loads and unidirectional axial loads and their combined loads. The larger the contact angle, the larger the axial load capacity. Even if it is used to bear pure radial load, there will be an axial component force, so it is usually used in pairs with two sets of bearings.
Tapered roller bearings are divided into three types: single row, double row and four row.
 4T-32224 32224 Tapered Roller Bearing 120x215x61.5 HR32224 For Excavator Bearing 0

 Our ability
We can produce many categories and more than 6000 specifications of high-quality bearing products for various purposes and performances, which are sold well in various provinces, municipalities, autonomous regions and more than 50 countries and regions in the world. Many bearing products have won national silver medals and provincial and municipal high-quality bearings.
1. According to the application field, the bearings are divided into: automotive bearings, agricultural machinery bearings, machine tool bearings, motor bearings, fan bearings, textile machinery bearings, mining machinery bearings, paper machinery bearings, chemical machinery bearings, cement plant bearing maintenance, power plant bearings, etc.
2. According to the bearing type, it is divided into: deep groove ball bearing, self-aligning ball bearing, angular contact ball bearing, cylindrical roller bearing, tapered roller bearing, spherical ball bearing with seat, thrust ball bearing, self-aligning roller bearing, Combined rolling bearings such as thrust angular contact ball bearings and thrust spherical roller bearings.
3. According to the characteristics of use: stainless steel bearings, high temperature bearings, low temperature bearings, corrosion-resistant bearings, high-speed bearings, insulating bearings, silent bearings, chemical fiber bearings, vacuum bearings, fitness equipment bearings, self-lubricating bearings, anti-magnetic bearings, anti-sulfur bearings.



  • Factory operation workshop

4T-32224 32224 Tapered Roller Bearing 120x215x61.5 HR32224 For Excavator Bearing 1



  • Lead time and delivery

We stock most of popular models of bearing, and delivery can be arranged in short time for your urgent request.

We can arrange delivery by express, for example DHL, FEDEX, TNT, UPS, EMS, ShunFeng. Or by air cargo to local airport. For any large amount of bearing request, we are able to arrange delivery by sea/boat.
