Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Electrical Harness | Model: | R320LC7 |
|---|---|---|---|
| Parts No.: | 21N910023 21N910024 21N9-10023 21N9-10024 | Parts Name: | Excavator Engine Harness |
| Warranty: | 6/12 Months | Package: | Standard Box Package |
| Application | Excavator electric harness |
| Parts Name | Engine harness |
| Parts No | 21N910023 21N910024 21N9-10023 21N9-10024 |
| Model | R320LC7 |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX TNT UPS EMS |
| Packing | As request or standard packing |

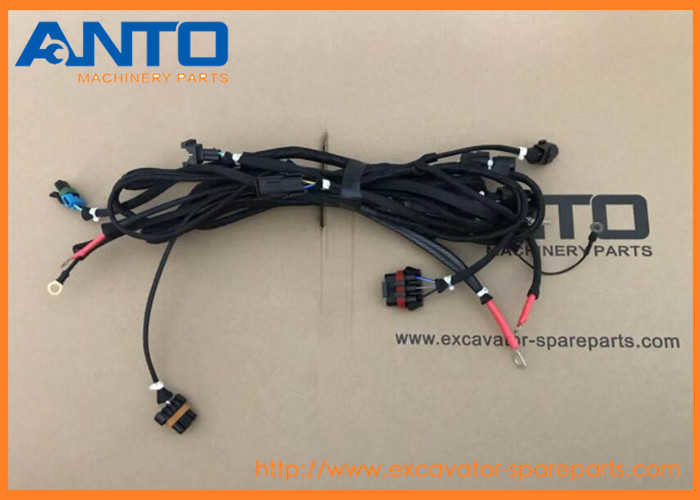

R320LC-7 HYUNDAI EXCAVATOR
| 21NB-10047 HARNESS-FRAME |
| R450LC7, RD510LC-7 |
| 21NB-40014 HARNESS-FRAME |
| R450LC7A, R500LC7A |
| 21NB-40015 HARNESS-FRAME |
| R450LC7A, R500LC7A |
| 21NB-40016 HARNESS-FRAME |
| R450LC7A |
| 21N1-10015 HARNESS-FRAME |
| R80-7 |
| 21N1-10170 HARNESS,EXT |
| R80-7 |
| 21N1-10180 HARNESS-FRAME |
| R80-7 |
| 21N8-11161 HARNESS-CONSOLE,LH |
| R80-7, RD510LC-7 |
| 21N6-22012 HARNESS-FRAME |
| RC215C7 |
| 21N9-10024 HARNESS-ENGINE |
| R320LC7 |
| 21NB-10054 HARNESS-ENGINE |
| R500LC7 |
| 21N1-10022 HARNESS-ENGINE |
| R80-7 |
| 21N8-11150 HARNESS-CONSOLE,RH |
| R140LC-7, R210LC7, R290LC7, R360LC7, R450LC7 |
| 21N4-11170 HARNESS-PUMP PS |
| R140LC-7, R140W7 |
| 21N4-20042 HARNESS-ENG,REAR |
| R140LC-7, R140W7 |
| 21N4-20041 HARNESS-ENG,REAR |
| R140LC-7, R140W7 |
| 21N4-20040 HARNESS-ENG,REAR |
| R140LC-7 |
| 21N4-20022 HARNESS-ENG,FRONT |
| R140LC-7, R140W7 |
| 21N4-20021 HARNESS-ENG,FRONT |
| R140LC-7, R140W7 |
| 21N4-20020 HARNESS-ENG,FRONT |
| R140LC-7 |
| 21EA-00191 HARNESS-EXT,START RY |
| HW140, R130W3, R140LC-7, R140LC9S, R140W9A, R140W9S, R160W9A, R180W9A, R200W3, R200W7, R210LC7, R210NLC7, R210W9S, R215LC7, R250LC7, R290LC7, RC215C7, RD210-7, RD210-7V, RD220-7 |
| 21N8-11170 HARNESS-PUMP PS |
| R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, R290LC7, R290LC7A, R300LC7, RC215C7, RC215C7H, RD220-7 |
| 21N4-10032 HARNESS-ENG,REAR |
| R140LC-7 |
| 21N4-10022 HARNESS-ENG,FRONT |
| R140LC-7 |
| 21N4-02810 HARNESS-CONSOLE,RH |
| R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290LC7A, R3... |
| 21N8-11180 HARNESS-SIDE,RH |
| R140LC-7, R210LC7, R290LC7, R360LC7, R450LC7 |
| 21N8-11181 HARNESS-SIDE,RH |
| R140LC-7, R160LC7, R180LC7, R210LC7, R210NLC7, R250LC7, R290LC7, R320LC7, R320LC7A, R450LC7, R500LC7, R80-7, RD80-7 |
| 21N8-40140 HARNESS-SIDE,RH |
| R140LC-7, R140LC-7A, R160LC7, R160LC7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R250LC7, R250LC7A, R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7, R360LC7, R360LC7A, R370LC7, R450LC7, ... |
| 20N4-47800 HARNESS |
| Hyundai |
| 21N8-10160 HARNESS-EXTENTION |
| R140LC-7, R210LC7, R290LC7, R290LC7H, R450LC7 |
| 21N8-10071 HARNESS-PUMP |
| R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R210LC7, R290LC7, R290LC7H, R305LC7 |
| 21N4-20701 HARNESS-FRAME |
| R140LC-7A |
| 21N5-10190 HARNESS-PUMP PS |
| R140LC-7A, R140W7A, R160LC7A, R170W7A, R180LC7A |
| 21N5-30021 HARNESS-ECM |
| R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9 |
| 21N4-10050 HARNESS-SIDE,RH |
| R140LC-7A, R140W7, R170W7, R200W7 |
| 21N4-21110 HARNESS-SIDE,RH |
| R140LC-7A, R140W7, R170W7, R200W7, R200W7A |

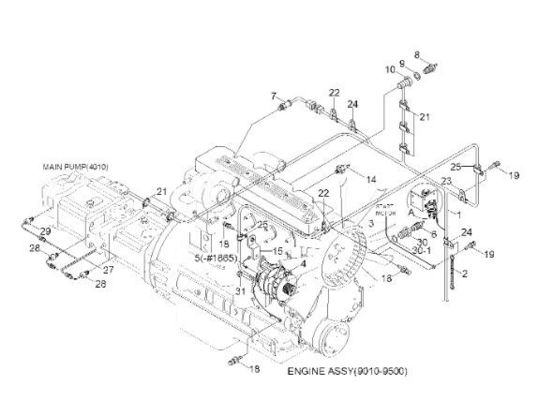

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21N9-10021 | [1] | HARNESS-ENGINE | |
| 1 | 21N9-10022 | [1] | HARNESS-ENGINE | |
| 1 | 21N9-10023 | [1] | HARNESS-ENGINE | |
| 1 | 21N9-10024 | [1] | HARNESS-ENGINE | |
| 1-1. | 21LH-30130 | [1] | RESISTOR | NOT SHOWN |
| 2 | 21EH-30720 | [1] | STRAP-EARTH | |
| 3 | 21N9-20020 | [1] | CABLE(FRAME-S/MOTOR) | |
| N4. | 21E6-40030 | [1] | ALTERNATOR ASSY | |
| 4 | 21Q6-41000-K | [1] | ALTERNATOR KIT | |
| 4-1. | 21Q6-41000 | [1] | ALTERNATOR ASSY | NOT SHOWN |
| 4-2. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 4 | 21Q6-41000 | [1] | ALTERNATOR ASSY | |
| 4 | 21Q6-42001 | [1] | ALTERNATOR ASSY | |
| 4-1. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 5 | 21E1-21120 | [1] | WIRE LINK-ALTERNATOR | |
| 6 | 21E3-5001 | [1] | SWITCH-ENG OIL PRESS | |
| 7 | 21E3-0042 | [1] | SENSOR-SPEED | |
| 7 | 21Q6-15800 | [1] | SENSOR-SPEED | |
| 8 | 21EN-40100 | [1] | SENDER-TEMP | |
| 9 | 21EA-50171 | [1] | FITTING-TEMP SW | |
| 10 | 21EA-50260 | [1] | PACKING-TEMP SW | |
| 11 | 21N9-20052 | [1] | BRAKCET-RELAY | |
| 12 | 21N6-30120 | [1] | RELAY-START | |
| 13 | E225-0006 | [1] | RELAY-HEATER | |
| 14 | 21N9-20030 | [1] | CABLE-HEATER | |
| 15 | 21EA-00170 | [1] | PLATE | |
| 17 | S035-061522 | [4] | BOLT-W/WASHER | |
| 18 | S035-081522 | [3] | BOLT-W/WASHER | |
| 19 | S037-101552 | [6] | BOLT-W/WASHER | |
| 20 | 21L8-10360 | [1] | CABLE(ALT-EARTH) | |
| 21 | S552-050203 | [8] | CLAMP-BAND | |
| 22 | S593-000702 | [2] | CLIP-HARNESS | |
| 22 | S593-000802 | [2] | CLIP-HARNESS | |
| 23 | S593-001302 | [1] | CLIP-HARNESS | |
| 24 | S593-001702 | [6] | CLIP-HARNESS | |
| 25 | S543-100002 | [2] | CLAMP-TUBE | |
| 27 | 21NA-11170 | [1] | HARNESS-PUMP PS | |
| 28 | 21EG-32200 | [2] | SENDER-PRESSURE | OPTION |
| 29 | 21EG-32210 | [1] | SENDER-PRESSURE | OPTION |
| 30 | 21L7-00611 | [1] | ADAPTER | |
| 30-1. | 21EN-00520 | [1] | O-RING | |
| 31 | S203-061002 | [2] | NUT-HEX | |
| 32 | 21EA-00190 | [1] | HARNESS-EXT,START RY | |
| 33 | S037-122052 | [2] | BOLT-W/WASHER | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
