Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Swing Reduction | Machine Model: | DOOSAN SOLAR 255-V 280-III 290LC-V |
|---|---|---|---|
| Parts No.: | 2101-1025 2101-1025A 2101-1025B 2101-1025E | Parts Name: | Swing Reduction Gearbox |
| Warranty: | 6 Months | Package: | Standard Export Carton |
| High Light: | 2101-1025 Swing Reduction Gear,290LC-V Swing Reduction Gear,Doosan Swing Gearbox |
||
| spare parts name | Swing reduction gearbox |
| Equipment Model | DOOSAN SOLAR 255-V 280-III 290LC-V |
| Parts Category | Swing drive system |
| Parts number | 2101-1025 2101-1025A 2101-1025B 2101-1025E 2101-1025G |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Packing | Standard export wooden-box |
| Delivery Lead time | 1-3 days |
SOLAR SOLAR 290LC-V SOLAR 250LC-V SOLAR 290LL SOLAR 255LC-V SOLAR 280LC-III DOOSAN-DAEWOO
| RG04S-152-07 . REDUCTION GEAR |
| SOLAR |
| 269B1000-00 REDUCTION GEAR |
| SOLAR |
| 2302-9003B REDUCTION GEAR BOX ASS'Y |
| SOLAR |
| 21622Z90686-01 REDUCTION GEAR |
| SOLAR |
| K9000381 REDUCTION GEAR |
| SOLAR |
| 630010D10 REDUCTION GEAR |
| SOLAR |
| 2404-1054A REDUCTION DEVICE |
| SOLAR |
| 2404-1059A . REDUCTION GEAR ASS'Y |
| SOLAR |
| 2404-1068 . REDUCTION GEAR |
| SOLAR |
| 2101-1025E . REDUCTION GEAR |
| SOLAR |
| 2101-1025D REDUCTION GEAR BOX ASS'Y |
| SOLAR |
| 2101-1025C REDUCTION GEAR BOX ASS'Y |
| SOLAR |
| 2402-1034K REDUCTION GEAR BOX ASS'Y |
| SOLAR |
| 2101-1025A REDUCTION GEAR BOX ASS'Y |
| SOLAR |
| Pos. | Part No | Qty | Parts name | Comments |
| -. | 2101-1025E | [1] | SWING REDUCTION GEAR ASS'Y | 2101-1025G |
| -. | 2101-1025G | [1] | GEAR;REDUCTION | 2101-1025H |
| -. | 2101-1025H | [1] | GEAR;REDUCTION | 2101-1025I |
| -. | 2101-1025I | [1] | GEAR;REDUCTION | |
| 1 | 2423-1184D | [1] | CASING;FRONT | |
| 10 | 2230-1034 | [1] | CARRIER | |
| 11 | 2123-1631B | [3] | PIN | |
| 12 | 2114-1553 | [6] | WASHER;THRUST | 2114-1553A |
| 12 | 2114-1553A | [6] | WASHER;THRUST | |
| 13 | 2549-1118 | [1] | BUTTON;THRUST | |
| 14 | 2123-1632 | [3] | PIN(NO.1) | |
| 15 | 2412-9001 | [3] | PLATE;SIDE | |
| 16 | 2412-9002 | [3] | PLATE;SIDE | |
| 17 | 2412-9003 | [1] | PLATE;SIDE | |
| 18 | 2505-1009 | [1] | BAR;LEVEL | |
| 19 | 2182-1304 | [1] | PIPE | |
| 2 | 2423-1185 | [1] | CASING;MIDDLE | |
| 20 | 2278-1009A | [1] | RING;SPACER | |
| 21 | 2123-1634 | [4] | PIN;KNOCK | |
| 22 | 2109-9031 | [1] | BEARING;ROLLER | |
| 23 | 2109-9032 | [1] | BEARING;ROLLER | |
| 24 | 2216-9001 | [3] | CAGE;NEEDLE | |
| 25 | S2225971 | [16] | BOLT;LOCK | |
| 26 | S2224871 | [12] | BOLT;LOCK | |
| 27 | 2180-1235 | [1] | SEAL;OIL | |
| 28 | 2123-1633D2 | [3] | PIN;SPRING | |
| 29 | 2181-1116D4 | [1] | PLUG | |
| 3 | 2112-1156C | [1] | SHAFT;DRIVE | 2112-1156E |
| 3 | 2112-1156E | [1] | SHAFT;DRIVE | |
| 30 | 2123-1633D1 | [3] | PIN;SPRING | |
| 31 | S6500450 | [1] | RING;SNAP | |
| 32 | S6500500 | [3] | RING;STOP | |
| 33 | S6500850 | [1] | RING;STOP | |
| 34 | 2213-1053B | [1] | COVER;FRONT | |
| 35 | S0112261 | [8] | BOLT | |
| 36 | 2401-1031E | [1] | GEAR;PINION | 2401-1031F |
| 36 | 2401-1031F | [1] | GEAR;PINION | 2401-1031G |
| 36 | 2401-1031G | [1] | GEAR;PINION | |
| 37 | 2403-1039A | [1] | PLATE;LOCK | |
| 38 | 2120-1363 | [4] | BOLT | |
| 39 | 2126-9001 | [2] | WIRE | |
| 4 | 2104-1004C | [1] | GEAR;RING(NO.2) | |
| 4 | 2104-1004E | [1] | GEAR;RING(NO.2) | |
| 40 | S5102901 | [4] | . WASHER;SPRING | |
| 41 | 2536-1002 | [6] | MAGNET | |
| 42 | 2180-1236 | [1] | O-RING ID221.94XW3.53 | |
| 5 | 2101-1006C | [3] | GEAR;PLANETARY(NO.2) | |
| 5 | 2101-1006E | [3] | GEAR;PLANETARY(NO.2) | |
| 6 | 2101-1005E | [1] | GEAR;SUN(NO.2) | 2101-1005G |
| 6 | 2101-1005G | [1] | GEAR;SUN(NO.2) | |
| 6 | 2101-1005H | [1] | GEAR;SUN(NO.2) | |
| 7 | 2104-1005C | [1] | GEAR;RING(NO.1) | |
| 8 | 2101-1031 | [3] | GEAR;PLANETARY(NO.1) | |
| 9 | 2101-1032 | [1] | GEAR;SUN(NO.1) |

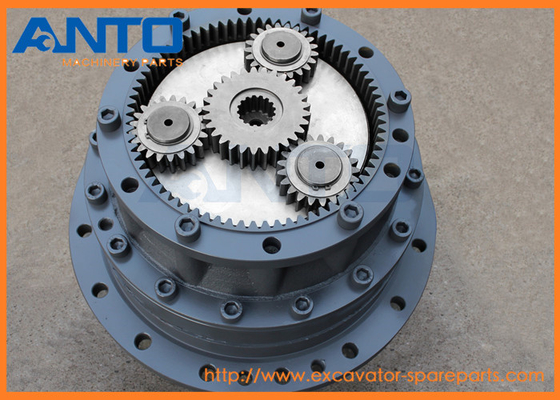

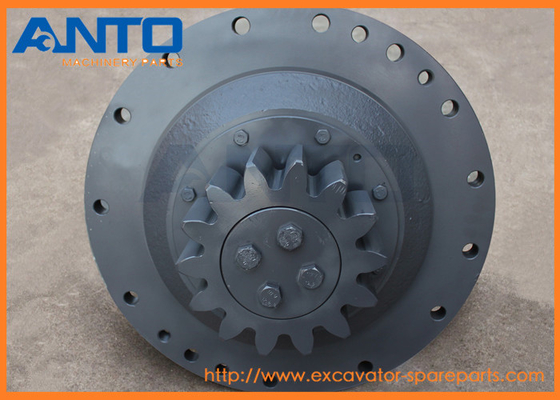

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
