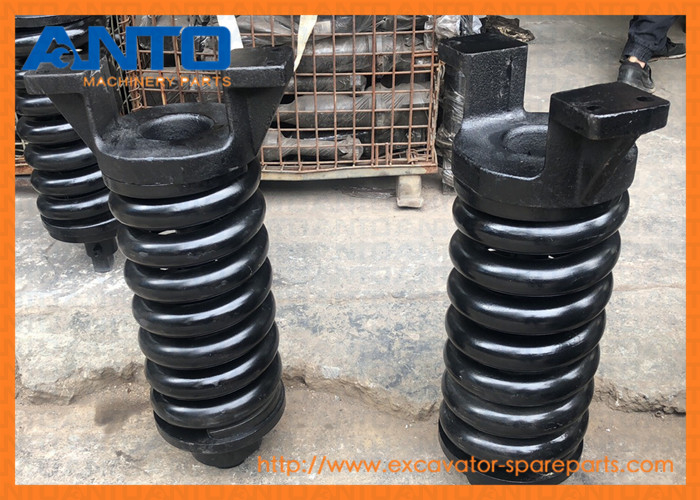

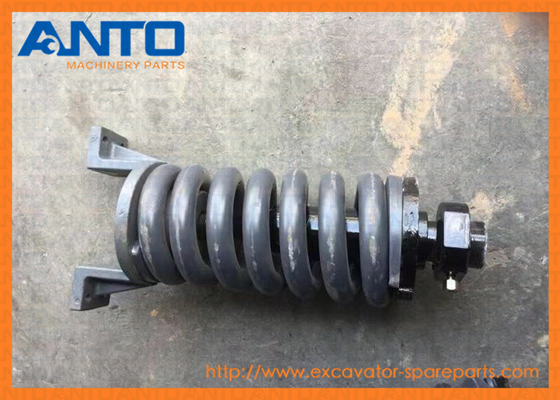

81N6-14010 81N6-14011 81N6-14012 Hyundai R210-7 Undercarriage Track Cylinder Assy

• 81N6-14010 81N6-14011 81N6-14012 HYUNDAI R210-7 Undercarriage Track Cylinder Assy

• Specification

• Applicable models

7-SERIES CRAWLER EXCAVATOR R210LC7 R210LC7H R210NLC7 RC215C7 RC215C7H Hyundai

• Other track parts for HYUNDAI machine

81N6-14010 T/CYLINDER ASSY
R210LC7

81N6-14011BG T/CYLINDER ASSY
R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD210-7, RD220-7

81N7-14010 T/CYLINDER ASSY
R210LC7, R250LC7

81N7-14010BG T/CYLINDER ASSY
R210LC7, R210LC7A, R250LC7, R250LC7A

81N7-14011BG T/CYLINDER ASSY
R210LC7, R210LC7A, R210LC7H

81N6-14010 T/CYLINDER ASSY
R210LC7

81N5-14010 T/CYLINDER ASSY
R140LC-7, R160LC7, R180LC7

81E6-36400 T/GUARD WA(B)-RH
R130LC3

81E6-36200 T/GUARD WA(A)-RH
R130LC3

81E6-36300 T/GUARD WA(B)-LH
R130LC3

81N6-14011BG T/CYLINDER ASSY
R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD210-7, RD220-7

81N7-14010 T/CYLINDER ASSY
R210LC7, R250LC7

81N7-14010BG T/CYLINDER ASSY
R210LC7, R210LC7A, R250LC7, R250LC7A

81N6-14011GG T/CYLINDER ASSY
R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9

81N8-36010 T/GUARD WA-FR,LH
HX330L, R250LC7, R290LC7A, R320LC7A, R330LC9A

81N8-36010BG T/GUARD WA-FR,LH
R250LC7, R250LC7A, R290LC7, R290LC7A, R320LC7, R320LC7A, R330LC9SH

81N8-36020 T/GUARD WA-FR,RH
HX330L, R250LC7, R290LC7A, R320LC7A, R330LC9A

• catalog parts list

Pos. Part No Qty Parts name Comments

*. 81N6-15010 [2] ADJUST COMPONENT

*. 81N6-15010BG [2] ADJUST COMPONENT

*. 81N6-15011BG [2] ADJUST COMPONENT

*. 81N6-15012BG [2] ADJUST COMPONENT

2. 81N6-14010 [1] TENSION CYL ASSY

2. 81N6-14011 [1] TENSION CYL ASSY

2. 81N6-14011BG [1] TENSION CYL ASSY

2. 81N6-14012BG [1] TENSION CYL ASSY

2-1. 81N6-14100 [1] BODY

2-2. 81N6-14110 [1] BAR-TIE

2-3. 81N6-14120 [1] SPRING

2-4. 81N6-14130 [1] BRACKET

2-5. 81EM-14121 [1] NUT-LOCK

2-5. 81EM-14122 [1] NUT-LOCK

2-6. 81EM-14130 [1] PLATE-LOCK

2-7. S018-120256 [2] BOLT-HEX

2-7. S018-120256 [2] BOLT-HEX

2-8. S411-120006 [2] WASHER-SPRING

2-9. 81E1-3104 [1] PACKING-ROD

2-10. 81E1-3204 [1] RING-BACK UP

2-11. 81E1-3304 [1] SEAL-DUST

2-12. 81N6-14210 [1] ROD

2-13. E181-2013 [1] VALVE-GREASE

2-13. 81N6-14240 [1] VALVE-GREASE

2-14. 81N6-14300 [1] BODY ASSY

2-14. 81N6-14301 [1] BODY ASSY

2-14. 81N6-14302 [1] BODY ASSY

2-141. 81N6-14100 [1] BODY

2-141. 81N6-14101 [1] BODY-T/CYL

2-141. 81N6-14102 [1] BODY-T/CYL

2-142. 81N6-14110 [1] BAR-TIE

2-142. 81N6-14111 [1] BAR-TIE

2-143. 81EM-14210 [1] PIN-SPRING

3. S017-160506 [4] BOLT-HEX

4. S411-160006 [4] WASHER-SPRING

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packing and Shipping

1. Packaging Details

Plastic Bag & Plastic Box , Customize , Or customer's Brand

2. Delivery Time

1-2 day after received the payment

3. Type of Shipping :

EMS , DHL , TNT , UPS , FeDex , By air & By sea ..

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Advantage

1. All of our products are strictly inspected and tested before packing in factory.2. All of our products are strictly produced according to Genuine parts standard.

2. We have our own design and develop department, thus, we can produce the spare parts according to your samples.

3. We have a team of professional engineers to supply related technology help if customers needs our tech-assistant.

4. All of our products are of good quality, competitive price, comparing to other suppliers.

5. We have two big warehouses in our city, thus we have enough stock goods, which enable us make delivery in fastest efficiency.

6. We have completed transport system to shipped the goods in fast way.

7. Sample processing, material processing, material agent processing, drawing processing, OEM processing, and other processing are all available.

8. We have thousands of customers in different countries and regions around the world.
