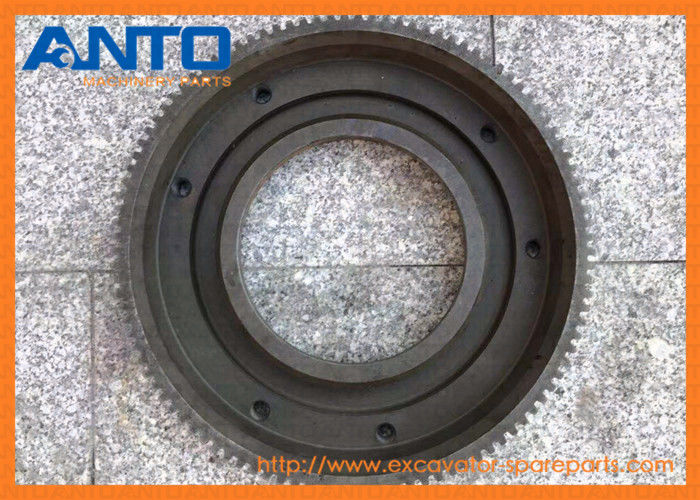

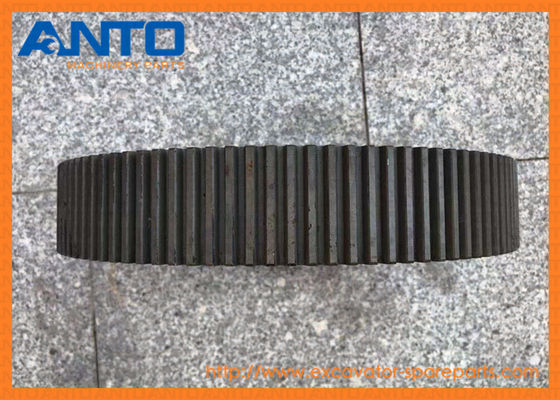

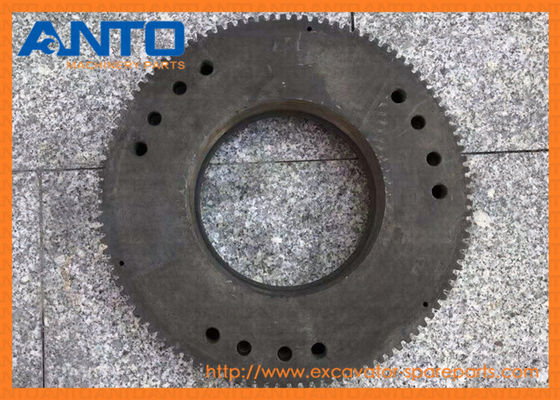

• 175-15-42571 1751542571 SHANTUI SD32 Transmission Gear







• Specification



Application	Transimission gearbox
Name	Gear
Parts No	175-15-42571
Model	SD32
Delivery time	2-7 DAYS
Quality	OEM QUALITY STANDARD
Brand	SHANTUI
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL
Packing	As request or standard packing







• catalog PARTS LIST



Pos	Part No	Description	Qty
1	178-15-11130	housing	1
2	234-15-12780	bolt	3
3	175-15-41140	plate	1
4	145-14-11320	plug	12
5	175-15-41150	piston cabin	1
6	175-15-42890	spring,waveform	5
7	175-15-31210	pin,dowel	4
8	04020-01228	pin	12
9	07000-73022	O O-ring	5
10	175-15-41310	collar	1
11	04020-00616	pin	1
12	01010-51435	M14*35 bolt	2
13	01602-21442	14 washer	8
14	GB283-NU212C4	roller bearing	1
15	04064-06020	retainer	1
16	175-15-42131	gear	1
17	04064-08530	retainer	1
18	175-15-42213	shaft	1
19	145-14-12790	spring	24
20	175-15-42850	seal ring	5
21	GB276-61924	bearing	1
22	130-09-16780	ring	1
23	04070-00130	retainer	1
24	175-15-42180	spring, dish	1
25	234-21-12180	nut	1
26	175-15-42220	pin	1
27	234-21-12190	washer	1
28	234-21-12210	locking plate	1
29	01010-50816	M8*16 bolt	2
30	175-15-42340	plate	1
31	130-09-15740	ring	1
32	175-15-42364	planetary carrier	1
33	175-15-42571	gear	1
34	01010-51490	M14*90 bolt	6
35	175-15-42230	bolt,hinge	16
36	175-15-42240	locking plate	8
37	175-15-42491	gear	3
38	175-15-42552	shaft	3
39	04260-00635	steel ball	3
40	06007-K384738	roll bearing	3
41	09233-03820	washer,thrust	6
42	175-15-42650	gear ring	1
43	175-15-42412	oil cylinder body	1
44	04260-00952	steel ball	2
45	175-15-42971	cover	2
46	234-15-12790	plug	2
47	175-15-42421	drum,outer	1
48	175-15-42430	O O-ring	1
49	01010-51230	M12*30 bolt	12
50	01602-21236	12 washer	12
51	01582-01210	M12*1.5 nut	16
52	175-15-12715	friction disk	2
53	175-15-42721	plate	1
54	175-15-12750	seal ring	2
55	175-15-42870	piston	1
56	195-15-12740	seal ring	1
57	154-15-12715	friction disk	5
58	281-15-12720	tooth piece	4
59	175-15-42740	piston	1
60	175-15-42750	seal ring	1
61	234-15-11220	seal ring	1
