VOE14569767 14569767 VOE14724044 14724044 EC290B EC290C EC300D Excavator Swing Gearbox

China VOE14569767 14569767 VOE14724044 14724044 EC290B EC290C EC300D Excavator Swing Gearbox supplier

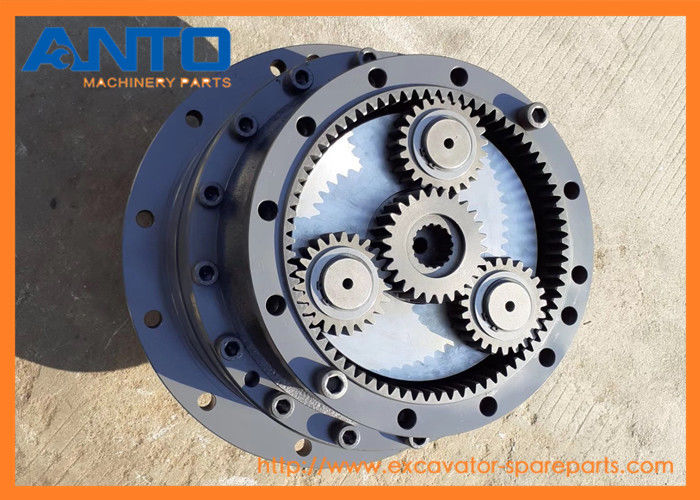

Large Image :  VOE14569767 14569767 VOE14724044 14724044 EC290B EC290C EC300D Excavator Swing Gearbox

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: EC290B EC300D

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Excavator Swing Gear Parts Machine Model: EC290B EC300D
Parts NO.: VOE14569767 VOE14724044 Material: Forged, Steel
Warranty: 3/6 Months Package: Standard Export Carton



  • VOE14569767 14569767 VOE14724044 14724044 EC290B EC290C EC300D Excavator Swing Gearbox





  • Spec Sheet



Excavator spare parts name Swing device gearbox
Equipment Model EC290B EC300D
Parts Category Excavator Swing gear
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days




  • Application



EC290B EC290C EC300D EC300E FC3329C Volvo.Heavy





  • Parts Diagram

VOE14569767 14569767 VOE14724044 14724044 EC290B EC290C EC300D Excavator Swing Gearbox


Pos. Part No Qty Parts name Comments
  VOE14569767 [1] Swing gearbox S/N -19948/-35895/-50154 /-86284
  VOE14724044 [1] Swing gearbox S/N 19949-
1 VOE14547262 [1] Case
2 VOE14547260 [1] Ring
3 VOE14547259 [1] Collar
4 VOE14547258 [1] Shaft
5 VOE14547263 [1] Cover
6 VOE14547266 [1] Gear
7 VOE997902 [20] Hex. socket screw
8 VOE997876 [12] Hex. socket screw
9 VOE14547261 [1] Bearing
10 VOE14883861 [1] Plug
11 VOE914167 [1] Lubricating nipple
12 VOE14566830 [1] Seal
13 VOE14547265 [1] Bearing
14 SA9541-01110 [1] Retaining ring
15 SA7118-30380 [1] Thrust ring
16 VOE14547272 [1] Gear
17 VOE14880960 [1] Retaining ring
18 VOE14547279 [1] Gear
19 VOE14547278 [1] Thrust washer
20 VOE14547281 [1] Pipe
21 VOE14547280 [1] Planet carrier
22 VOE14547267 [1] Planet carrier
23 VOE14547271 [4] Pin
24 VOE14547268 [4] Gear
25 VOE14547269 [4] Bushing
26 VOE14556491 [8] Washer
27 SA9325-06012 [4] Spring pin
28 VOE14547273 [1] Planet carrier
29 VOE14547274 [1] Planet carrier
30 VOE14547275 [3] Gear
31 SA7117-30230 [3] Needle bearing
32 VOE14547277 [3] Pin
33 SA9325-06012 [3] Spring pin
34 VOE14547276 [6] Washer
35 VOE950677 [4] Pin
36 VOE949329 [1] Gasket
37 VOE14722461 [1] Draining valve







  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.





  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
