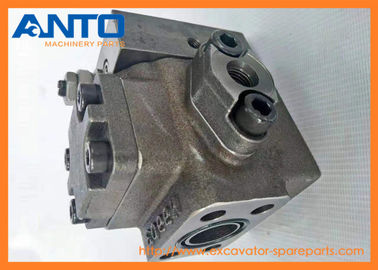

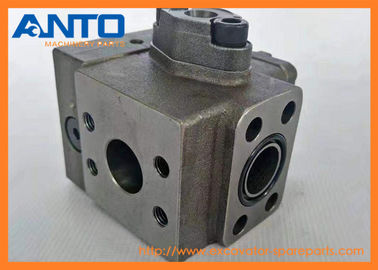

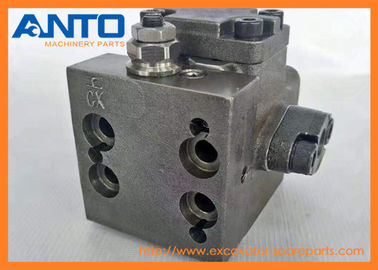

702-21-09154 702-21-09153 702-21-09155 Komatsu PC60-7 PC70-7 Excavator Pilot Valve Assembly

702-21-09154 702-21-09153 702-21-09155 Komatsu PC60-7 PC70-7 Excavator Pilot Valve Assembly
702-21-09154 702-21-09153 702-21-09155 Komatsu PC60-7 PC70-7 Excavator Pilot Valve Assembly 702-21-09154 702-21-09153 702-21-09155 Komatsu PC60-7 PC70-7 Excavator Pilot Valve Assembly 702-21-09154 702-21-09153 702-21-09155 Komatsu PC60-7 PC70-7 Excavator Pilot Valve Assembly

Large Image :  702-21-09154 702-21-09153 702-21-09155 Komatsu PC60-7 PC70-7 Excavator Pilot Valve Assembly

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: PC60-7 PC70-7
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Detailed Product Description
Category: Excavator Hydraulic Parts Machine Model: PC60-7 PC70-7
Parts No.: 702-21-09154 702-21-09153 702-21-09155 Parts Name: Pilot Valve
Warranty: 6/12 Months Package: Standard Export Carton
High Light:

hydraulic main pump

,

hydraulic pump parts



  • 702-21-09154 702-21-09153 702-21-09155 Komatsu PC60-7 PC70-7 Excavator Pilot Valve Assembly




  • Spec Sheet



Excavator spare parts name pilot valve
Equipment Model PC60-7 PC70-7
Parts Category Excavator hydraulic parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days




  • Application

EXCAVATORS PC60-7 PC70-7




  • Parts Diagram
702-21-09154 702-21-09153 702-21-09155 Komatsu PC60-7 PC70-7 Excavator Pilot Valve Assembly 0
Pos. Part No Qty Parts name Comments
1 723-28-16101 [1] VALVE ASS'Y,MAIN Komatsu 98 kg.
      ["SN: 59659-UP"] ancatalogs:["7232816100"]
  723-28-16100 [1] VALVE ASS'Y,MAIN Komatsu 98 kg.
      ["SN: 58001-59658"] ancatalogs:["7232816101"] |1.
  723-28-13102 [1] VALVE ASS'Y,MAIN Komatsu China
      ["SN: 55328-58000"] ancatalogs:["7232813100", "7232813103", "7232813101"] |1.
  723-28-13101 [1] VALVE ASS'Y,MAIN Komatsu China
      ["SN: 54770-55327"] ancatalogs:["7232813100", "7232813103", "7232813102"] |1.
  723-28-13100 [1] VALVE ASS'Y,MAIN Komatsu China
      ["SN: 52374-54769"] ancatalogs:["7232813103", "7232813102", "7232813101"] |1.
  723-28-16201 [1] VALVE ASS'Y,MAIN (NORWAY SPEC.) Komatsu 98 kg.
      ["SN: 59659-UP"] |1.
  723-28-16200 [1] VALVE ASS'Y,MAIN (NORWAY SPEC.) Komatsu 98 kg.
      ["SN: 58001-59658"] ancatalogs:["7232816201"] |1.
2 702-21-09155 [1] VALVE ASS'Y,PILOT Komatsu China
      ["SN: 54590-UP"] ancatalogs:["7022109152", "7022109150", "7022109151", "7022109153", "7022109154"]
  702-21-09154 [1] VALVE ASS'Y,PILOT Komatsu China
      ["SN: 53789-54589"] ancatalogs:["7022109152", "7022109150", "7022109151", "7022109153", "7022109155"] |2.
  702-21-09153 [1] VALVE ASS'Y,PILOT Komatsu China
      ["SN: 52374-53788"] ancatalogs:["7022109152", "7022109150", "7022109151", "7022109155", "7022109154"] |2.
3 708-27-12560 [4] BOLT Komatsu China
      ["SN: 52374-UP"]
4 01643-51032 [4] WASHER Komatsu 0.17 kg.
      ["SN: 52374-UP"] ancatalogs:["R0164351032"]
5 07000-13032 [1] O-RING Komatsu China 0.002 kg.
      ["SN: 52374-UP"] ancatalogs:["YM24321000350", "YM24311000320", "0700003032"]
6 203-62-42770 [8] CUSHION Komatsu 0.015 kg.
      ["SN: 45001-UP"]
7 21W-62-11620 [4] SPACER Komatsu China
      ["SN: 45001-UP"]
8 566-35-42430 [4] PLATE Komatsu 0.062 kg.
      ["SN: 45001-UP"]
9 07000-03025 [4] O-RING Komatsu China 0.001 kg.
      ["SN: 45001-UP"] ancatalogs:["0700013025"]
10 01010-81245 [4] BOLT Komatsu 0.056 kg.
      ["SN: 52374-UP"] ancatalogs:["0101051245", "801015574"]
11 01643-31232 [4] WASHER Komatsu 0.027 kg.
      ["SN: 45001-UP"] ancatalogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
12 201-62-74250 [1] BRACKET Komatsu China
      ["SN: 52374-UP"]
13 01010-81445 [3] BOLT Komatsu 0.079 kg.
      ["SN: 52374-UP"] ancatalogs:["0101061445", "0101031445", "0101051445"]
14 01643-31445 [3] WASHER Komatsu 0.019 kg.
      ["SN: 52374-UP"] ancatalogs:["0164301432"]







  • Description


Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.


  • Advantage



1. The pump and valve parts are built to fit to the genuine excavator system.

2. The pump parts and valve are supplied strictly according to the genuine parts catalog.

3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
