20Y-06-71512 PC200-7 PC220-7 Cab Wiring Harness For Komatsu PC200 PC220 PC270 Excavator Parts

China 20Y-06-71512 PC200-7 PC220-7 Cab Wiring Harness For Komatsu PC200 PC220 PC270 Excavator Parts supplier

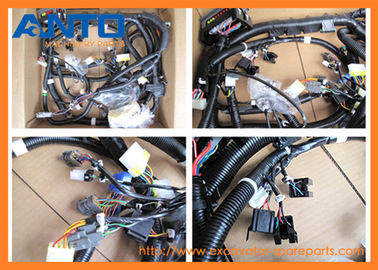

Large Image :  20Y-06-71512 PC200-7 PC220-7 Cab Wiring Harness For Komatsu PC200 PC220 PC270 Excavator Parts

Product Details:

Place of Origin: China
Brand Name: ANTO
Certification: ISO9001
Model Number: PC200-7 PC220-7 PC270-7

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: Komatsu Electrical Spare Parts Model: PC200-7 PC220-7 PC270-7
Parts No.: 20Y-06-71512 Parts Name222-5917: Excavator Cab Wire Harness
Warranty: 3/6/12 Months Package: Standard Box Package



  • 20Y-06-71512 PC200-7 PC220-7 Cab Wiring Harness Used For Komatsu PC200 PC220 PC270 Excavator Parts




  • Specification



Excavator spare parts name Komatsu cabin wiring harness
Equipment Model PC200-7 PC220-7 PC270-7
Parts Category Komatsu excavator electrical spare parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days





  • Application

EXCAVATORS PC200 PC220 PC270  Komatsu


  •  parts diagram

20Y-06-71512 PC200-7 PC220-7 Cab Wiring Harness For Komatsu PC200 PC220 PC270 Excavator Parts

Pos. Part No Qty Parts name Comments
1 20Y-06-71512 [1] WIRING HARNESS Komatsu 0.000 kg.
      ["SN: 256736-UP"]
1 20Y-06-71511 [1] WIRING HARNESS Komatsu 6.5 kg.
      ["SN: 253217-256735"]
2. 08041-01000 [16] FUSE, 10A Komatsu 0.001 kg.
      ["SN: 200001-UP"] analogs:["2830616190"]
3. 08041-02000 [4] FUSE, 20A Komatsu 0.001 kg.
      ["SN: 200001-UP"] analogs:["22W0613160M", "22W0613160"]
4 04434-53411 [3] CLIP Komatsu 0.044 kg.
      ["SN: 250001-UP"]
5 195-33-11220 [3] SPACER Komatsu 0.073 kg.
      ["SN: 250001-UP"]
6 01010-81040 [3] BOLT Komatsu 0.288 kg.
      ["SN: 250001-UP"] analogs:["0101051040", "R0101081040"]
7 01643-31032 [3] WASHER Komatsu 0.054 kg.
      ["SN: 250001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
8 04434-51710 [2] CLIP Komatsu 0.02 kg.
      ["SN: 250001-UP"]
12 01010-81016 [1] BOLT Komatsu 0.06 kg.
      ["SN: 253217-UP"] analogs:["0101051016"]
15 01010-81020 [1] BOLT Komatsu 0.161 kg.
      ["SN: 250001-UP"] analogs:["801014093", "0101051020", "801015108"]
17 08034-20519 [3] BAND Komatsu 0.001 kg.
      ["SN: 250001-UP"] analogs:["2260611130", "885180010"]
18 04434-52310 [3] CLIP Komatsu 0.025 kg.
      ["SN: 250001-UP"]
22 08028-43030 [1] CABLE, GROUND Komatsu 0.24 kg.
      ["SN: 200001-UP"]
25 04434-51910 [1] CLIP Komatsu 0.022 kg.
      ["SN: 250001-UP"]





  • Description

Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.



  • Advantage



1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
